The Premium Single-Acting U-Cup Lip Sigillum asymmetricum est sigillum ad usum pistorum destinatum. Idoneum est uno modo signandi in motu reciproco hydraulico et praestantiam obsignationem praebens perficiendi. Sulcus signis ISO5597 conformis est.
|
Pressura Mpa |
Temperatus |
Celeritas m/s* |
Medium |
|
≤40 |
-30~+100 |
≤0.5 |
Oleum hydraulicum, mineralium, emulsio, &c. |
Materia lectio: polyurethane (PU)

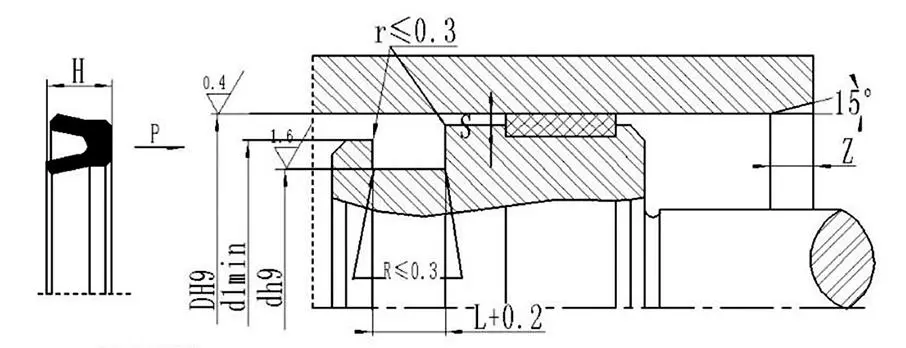

Order Model RCUPD63x48x10 Cylinder Diameter x Groove Diameter x Sigillum Height
|
Pressura Mpa |
Extrusio gap Smax |
|
|
Diameter Cylindrus D≤60mm |
Cylindrus diameter D>60mm |
|
|
≤5 |
0.4 |
0.5 |
|
≤10 |
0.3 |
0.5 |
|
≤20 |
0.2 |
0.3 |
|
≤30 |
0.15 |
0.2 |
|
≤40 |
0.1 |
0.15 |
