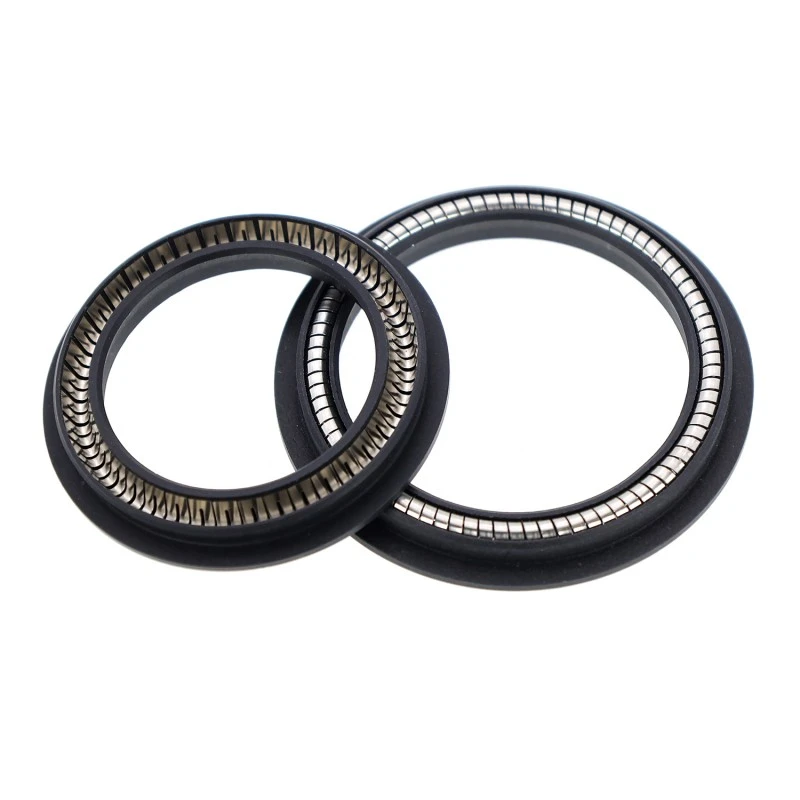

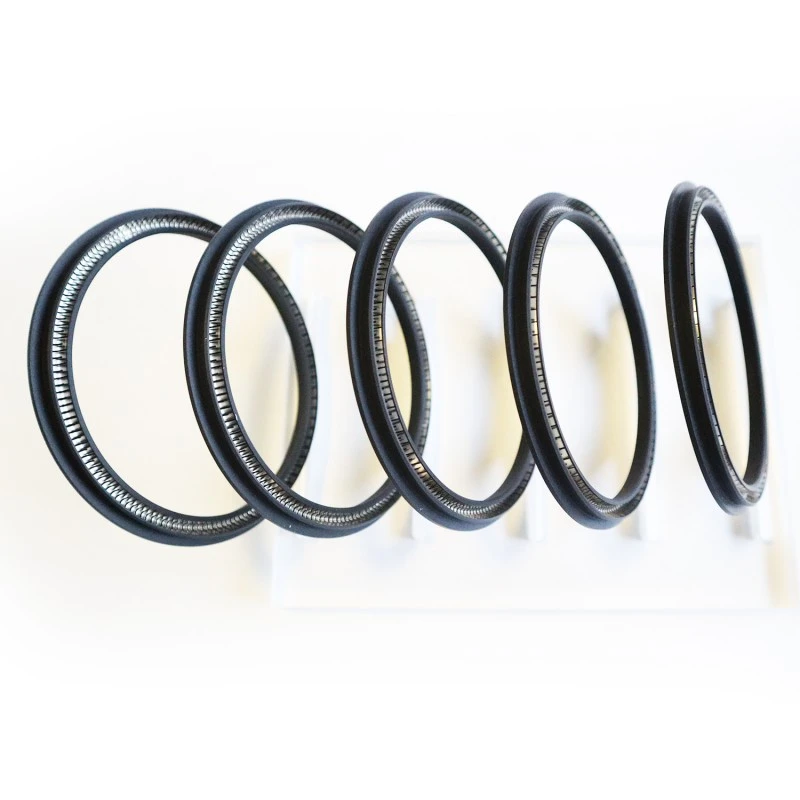

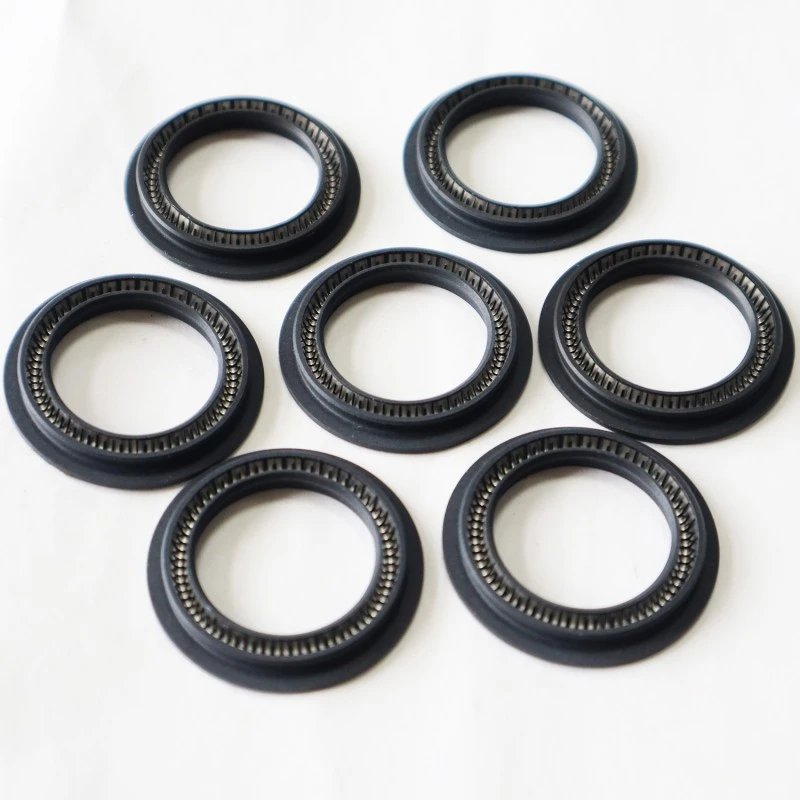

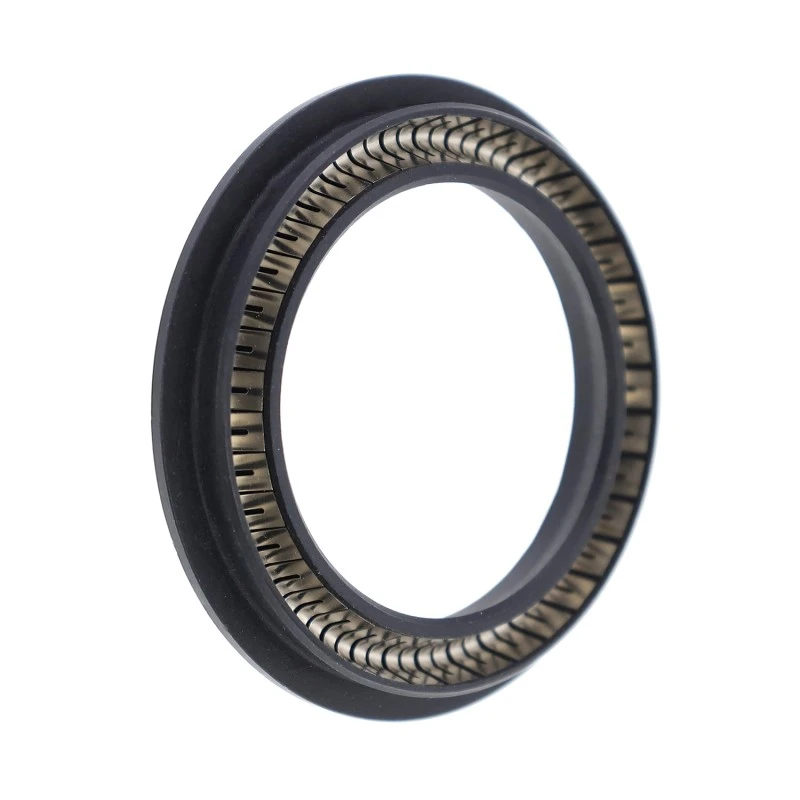

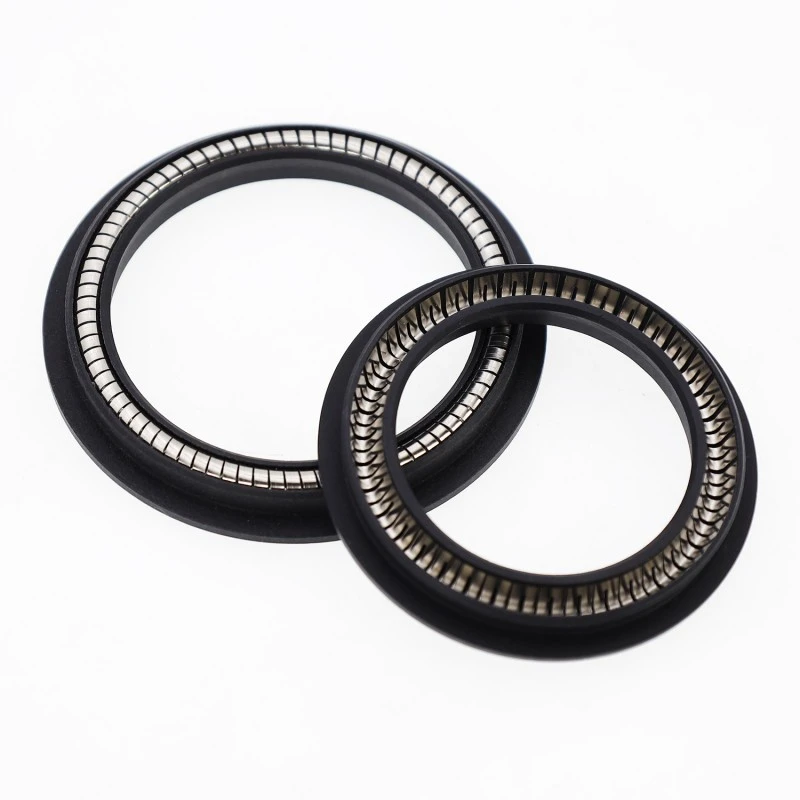

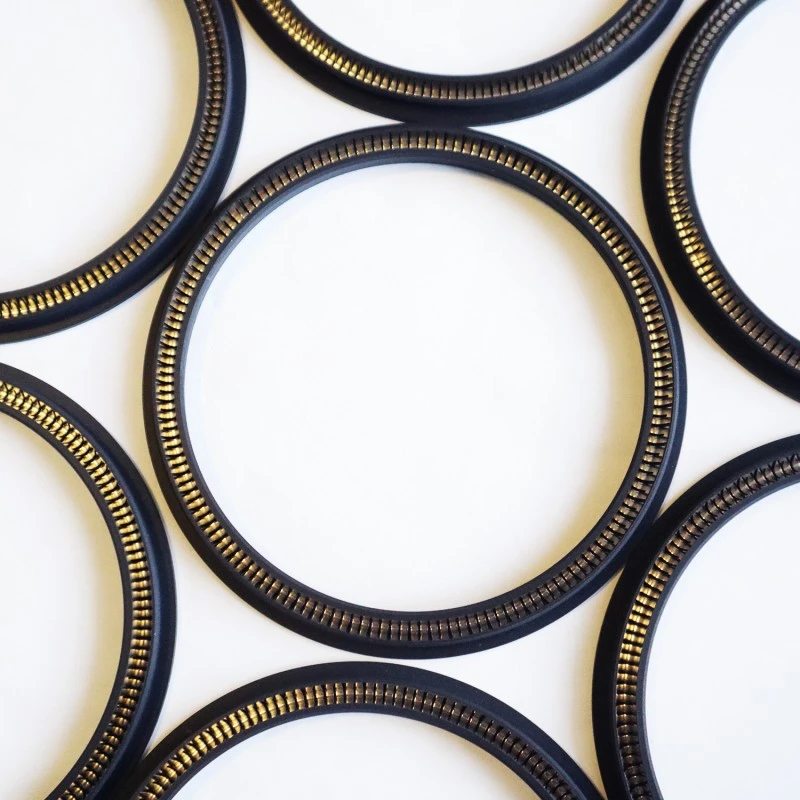

Sigilla ver-energiata ad hastilia rotaria alta sunt opera, sigilla pressionis unidirectionalis adhibita in applicationibus gyratorii spiculi. Sigillum rotundum RC2055 consistit in vere ferro incorrupta et plastica magnifica perficiendi. Cum utendo RC2055-B et RC2055-C, materia opportuna elastomer diligenter seligi debet.
Operating condiciones applicabiles (valores extremae eodem tempore fieri non debent)
|
Pressura / MPa |
Temperature / °C |
Celeritas / m/s |
Medium |
|||
|
≤35 |
RC2055 |
RC2055-B/C |
RC2055 |
RC2055-B |
RC2055-C |
Fere omnia liquida et gaseous media |
|
-200~+250 |
-35~+250 |
<2M/S |
<6M/S |
<2M/S |
||
Materia Electio
1. Praesto sunt materiae O-anuli: R01 Flexilis Nitrile (NBR), R02 Fluororubber (FKM) etc.
2. Materiae anuli sigilli: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Aliquam ferrum ver: V ver informe.
Productio Processus Imperium
Basis productio recentioris Ruichen instructa est cum machinis fingendis iniectio alta praecisione, machinis vulcanis latis vacui, et CNC machinis machinis praecisio. In processu productionis SPC (Statistical Process Control) methodos monitoris processus clavis parametris ut temperies, pressio, et tempus in tempore reali adhibemus, ut omne opus effictum ostendat altam constantiam et stabilitatem.
Ad res criticas, ad inspectionem systematis C%, quam temere sampling, efficimus, ut omne sigillum nostris clientibus traditum idoneus sit.
Order example
RC2055-40-PTFE4+V: Shaft diameter 40, obsignatio anuli materialis PTFE4, fons inactus ferro est V informatus.
RC2055-B-40-PTFE4+R02: Shaft diameter 40, obsignatio anuli materialis PTFE4, congruens O-anulus fluororubber est.
RC2055-C-40-PTFE4+R02: Shaft diameter 40, obsignatio anuli materialis PTFE4, congruens O-anulus fluororubber est.
Formularium Tabulae (Omnes specificationes intra modulum range praesto sunt)
|
Rhoncus diam rhoncus d f8 |
Sulcus diameter DH9 |
Sulcus diameter D1H10 |
ora profundum L1 |
Sulcus latitudinis L |
Importare cameram k |
Radialis alvi deiectio |
Chamfer longitudinis |
r max * |
|
|
10MPA |
20MPA |
||||||||
|
5~19.9 |
d+5 |
d+9 |
0.85-0.1 |
3.6 |
0.3 |
0.15 |
0.1 |
Zmin=0.8L |
0.8 |
|
20~39.9 |
d+7 |
d+12.5 |
1.35-0.15 |
4.8 |
0.4 |
0.20 |
0.15 |
1.1 |
|
|
40~400.9 |
d+10.5 |
d+17.5 |
1.8-02 |
7.1 |
0.5 |
0.25 |
0.20 |
1.4 |
|
|
401~150 |
d+14 |
d+22 |
2.8-02 |
9.5 |
0.5 |
0.30 |
0.25 |
1.6 |
|
Nota: Commendatur quod durities superficiei gyrationis scapus erit HRC ≥ 58 .
Tabulae specierum ac dimensionum (Haec mensa applicat RC2055-B et RC2055-C, quae eandem speciem habent)
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-5 |
5 |
10 |
14 |
3.6 |
0.85 |
RC2055-28 |
28 |
35 |
40.5 |
4.8 |
1.35 |
|
|
RC2055-6 |
6 |
11 |
15 |
3.6 |
0.85 |
RC2055-30 |
30 |
37 |
42.5 |
4.8 |
1.35 |
|
|
RC2055-8 |
8 |
13 |
17 |
3.6 |
0.85 |
RC2055-32 |
32 |
39 |
44.5 |
4.8 |
1.35 |
|
|
RC2055-10 |
10 |
15 |
19 |
3.6 |
0.85 |
RC2055-35 |
35 |
42 |
47.5 |
4.8 |
1.35 |
|
|
RC2055-12 |
12 |
17 |
21 |
3.6 |
0.85 |
RC2055-36 |
36 |
43 |
48.5 |
4.8 |
1.35 |
|
|
RC2055-15 |
15 |
20 |
24 |
3.6 |
0.85 |
RC2055-40 |
40 |
50.5 |
57.5 |
7.1 |
1.8 |
|
|
RC2055-18 |
18 |
23 |
27 |
3.6 |
0.85 |
RC2055-45 |
45 |
55.5 |
62.5 |
7.1 |
1.8 |
|
|
RC2055-20 |
20 |
27 |
32.5 |
4.8 |
1.35 |
RC2055-50 |
50 |
60.5 |
67.5 |
7.1 |
1.8 |
|
|
RC2055-22 |
22 |
29 |
34.5 |
4.8 |
1.35 |
RC2055-55 |
55 |
65.5 |
72.5 |
7.1 |
1.8 |
|
|
RC2055-25 |
25 |
32 |
37.5 |
4.8 |
1.35 |
RC2055-56 |
56 |
66.5 |
73.5 |
7.1 |
1.8 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
Model |
d |
D |
D1 |
L |
L1 |
|
RC2055-60 |
60 |
70.5 |
77.5 |
7.1 |
1.8 |
RC2055-210 |
210 |
220.5 |
227.5 |
7.1 |
1.8 |
|
|
RC2055-63 |
63 |
73.5 |
80.5 |
7.1 |
1.8 |
RC2055-220 |
220 |
230.5 |
237.5 |
7.1 |
1.8 |
|
|
RC2055-65 |
65 |
75.5 |
82.5 |
7.1 |
1.8 |
RC2055-230 |
230 |
240.5 |
247.5 |
7.1 |
1.8 |
|
|
RC2055-70 |
70 |
80.5 |
87.5 |
7.1 |
1.8 |
RC2055-240 |
240 |
250.5 |
257.5 |
7.1 |
1.8 |
|
|
RC2055-80 |
80 |
90.5 |
97.5 |
7.1 |
1.8 |
RC2055-250 |
250 |
260.5 |
267.5 |
7.1 |
1.8 |
|
|
RC2055-90 |
90 |
100.5 |
107.5 |
7.1 |
1.8 |
RC2055-260 |
260 |
270.5 |
277.5 |
7.1 |
1.8 |
|
|
RC2055-100 |
100 |
110.5 |
117.5 |
7.1 |
1.8 |
RC2055-280 |
280 |
290.5 |
297.5 |
7.1 |
1.8 |
|
|
RC2055-110 |
110 |
120.5 |
127.5 |
7.1 |
1.8 |
RC2055-300 |
300 |
310.5 |
317.5 |
7.1 |
1.8 |
|
|
RC2055-115 |
115 |
125.5 |
132.5 |
7.1 |
1.8 |
RC2055-320 |
320 |
330.5 |
337.5 |
7.1 |
1.8 |
|
|
RC2055-120 |
120 |
130.5 |
137.5 |
7.1 |
1.8 |
RC2055-350 |
350 |
360.5 |
367.5 |
7.1 |
1.8 |
|
|
RC2055-125 |
125 |
135.5 |
142.5 |
7.1 |
1.8 |
RC2055-380 |
380 |
390.5 |
397.5 |
7.1 |
1.8 |
|
|
RC2055-130 |
130 |
140.5 |
147.5 |
7.1 |
1.8 |
RC2055-400 |
400 |
410.5 |
417.5 |
7.1 |
1.8 |
|
|
RC2055-140 |
140 |
150.5 |
157.5 |
7.1 |
1.8 |
RC2055-420 |
420 |
434 |
442 |
9.5 |
2.8 |
|
|
RC2055-150 |
150 |
160.5 |
167.5 |
7.1 |
1.8 |
RC2055-450 |
450 |
464 |
472 |
9.5 |
2.8 |
|
|
RC2055-160 |
160 |
170.5 |
177.5 |
7.1 |
1.8 |
RC2055-480 |
480 |
494 |
502 |
9.5 |
2.8 |
|
|
RC2055-170 |
170 |
180.5 |
187.5 |
7.1 |
1.8 |
RC2055-500 |
500 |
514 |
522 |
9.5 |
2.8 |
|
|
RC2055-180 |
180 |
190.5 |
197.5 |
7.1 |
1.8 |
RC2055-600 |
600 |
614 |
622 |
9.5 |
2.8 |
|
|
RC2055-190 |
190 |
200.5 |
207.5 |
7.1 |
1.8 |
RC2055-700 |
700 |
714 |
722 |
9.5 |
2.8 |
|
|
RC2055-200 |
200 |
210.5 |
217.5 |
7.1 |
1.8 |
RC2055-800 |
800 |
814 |
822 |
9.5 |
2.8 |
Nota: Si specificationes inquisitae in hac tabula non recensentur, pete societatem nostram. Praebere possumus fructus usque ad 1600mm in magnitudine.
