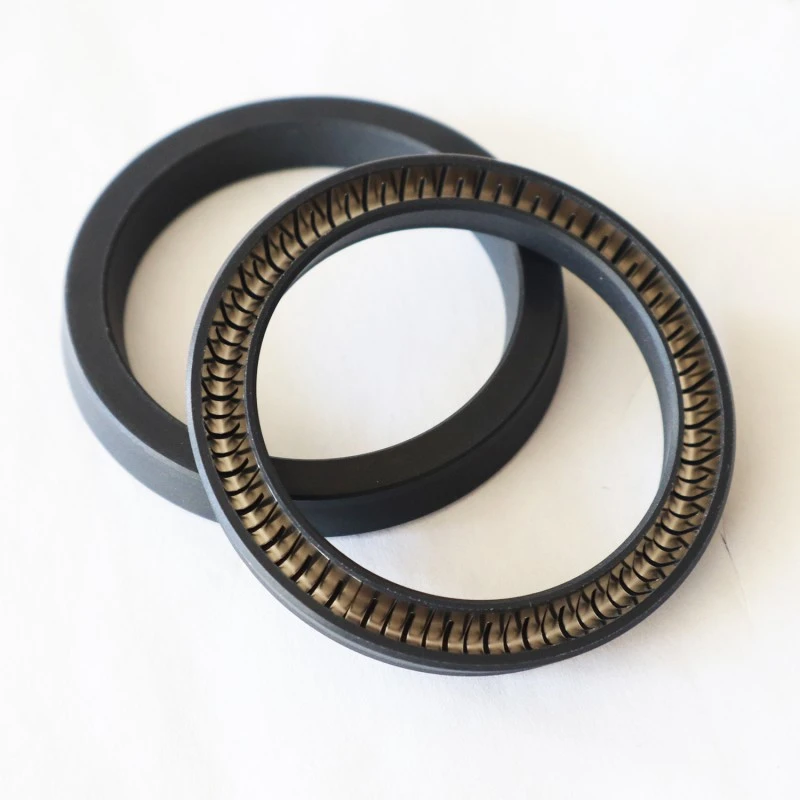

In RC65 sigillum ver-egitatum componitur ex vere incorrupta ferro et plastica alta perficiendi. Vere chalybs immaculata esse potest vel fons V informatus vel fons o-formatus.
Operating condiciones applicabiles (valores extremae eodem tempore fieri non debent)
|
Pressura (MPa) |
Celeritas (m/s) |
Temperatus (°C) |
Medium |
||
|
RC65<40 |
RC65-B<80 |
<10 |
RC65-200~ 250 |
RC65-B -35~ 250 |
几乎所有介质 |
Materia Electio
1. Materia anuli deligi potest ex: R01 Flexilis Nitrile (NBR), R02 Fluororubber (FKM) etc.
2. Materiae anuli sigilli: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Sine ferro fontes ex O informibus et V-fontibus deligi possunt.
Order example
RC65-40-PTFE4+V: Bore diametrum 40, materia anuli signandi est PTFE4, fons chalybis immaculatus est fons V informatus.
RC65-B-40-PTFE4+R02: Bore diametrum 40, materia anuli signandi est PTFE4, O-anulus e fluororubber factus.

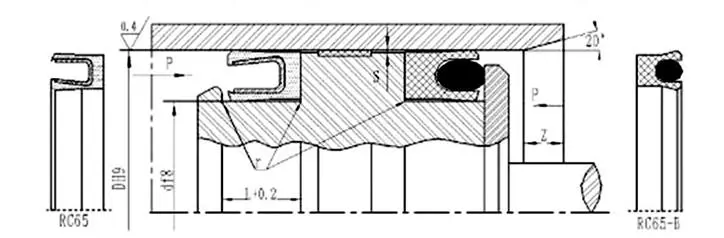

Specifications and Parameters Table (Quaelibet amplitudo intra certum range est available)
|
DH9 |
df8 |
L+0.2 |
SMax(<20MPA) |
SMax(<40MPA) |
Zmin |
rmax |
|
6~13.9 |
D-2.9 |
2.4 |
0.08 |
0.05 |
0.8L |
0.4 |
|
14~24.9 |
D-4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
25~45.9 |
D-6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
46~ 124.9 |
D-9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
125~999.9 |
D-12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
Tabulae specierum ac dimensionum (Si specificationes tuae requisitae in hac tabula non recensentur, pete societatem nostram, ut fructus usque ad 1600mm suppeditare possumus).
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
D |
d |
L |
|
15 |
10.5 |
3.6 |
42 |
35.8 |
4.8 |
75 |
65.6 |
7.1 |
160 |
147.8 |
9.5 |
320 |
307.8 |
9.5 |
||||
|
16 |
11.5 |
3.6 |
45 |
38.8 |
4.8 |
80 |
70.6 |
7.1 |
180 |
167.8 |
9.5 |
350 |
337.8 |
9.5 |
||||
|
18 |
13.5 |
3.6 |
48 |
38.6 |
7.1 |
85 |
75.6 |
7.1 |
190 |
177.8 |
9.5 |
400 |
387.8 |
9.5 |
||||
|
20 |
15.5 |
3.6 |
50 |
40.6 |
7.1 |
90 |
80.6 |
7.1 |
200 |
187.8 |
9.5 |
420 |
407.8 |
9.5 |
||||
|
22 |
17.5 |
3.6 |
52 |
42.6 |
7.1 |
95 |
85.6 |
7.1 |
210 |
197.8 |
9.5 |
450 |
437.8 |
9.5 |
||||
|
25 |
18.8 |
4.8 |
55 |
45.6 |
7.1 |
100 |
90.6 |
7.1 |
220 |
207.8 |
9.5 |
480 |
467.8 |
9.5 |
||||
|
28 |
21.8 |
4.8 |
56 |
46.6 |
7.1 |
110 |
100.6 |
7.1 |
230 |
217.8 |
9.5 |
500 |
487.8 |
9.5 |
||||
|
30 |
23.8 |
4.8 |
60 |
50.6 |
7.1 |
120 |
110.6 |
7.1 |
240 |
227.8 |
9.5 |
600 |
587.8 |
9.5 |
||||
|
32 |
25.8 |
4.8 |
63 |
53.6 |
7.1 |
125 |
112.8 |
9.5 |
250 |
237.8 |
9.5 |
700 |
687.8 |
9.5 |
||||
|
35 |
28.8 |
4.8 |
65 |
55.6 |
7.1 |
130 |
117.8 |
9.5 |
280 |
267.8 |
9.5 |
800 |
787.8 |
9.5 |
||||
|
40 |
33.8 |
4.8 |
70 |
60.6 |
7.1 |
150 |
137.8 |
9.5 |
300 |
287.8 |
9.5 |
900 |
887.8 |
9.5 |
In quibus agris Ruichen signationem products adhiberi potest?
Comitatus praecipuus in Sinis sumus in campo pressurae et ultra-pressio signationis altae, quae numerosas provocationes industriae feliciter solvit.
• Ultra altam pressionis facultatem: Nostra signandi products impressionem pressionis usque ad 600 MPa habent, et prosperos casus applicationes e clientibus sub extremas conditiones 720 MPa operantibus habemus, ut signum technologiae signandi in Sinis ponas.
• Summus pressura et summus temperatura compositas operationes condiciones: Feliciter superamus technicam bottleneck operationis simultaneae sub CCC MPa pressione et CC℃ caliditate, et productum effectum nostrum ad gradus internationales pervenit.
