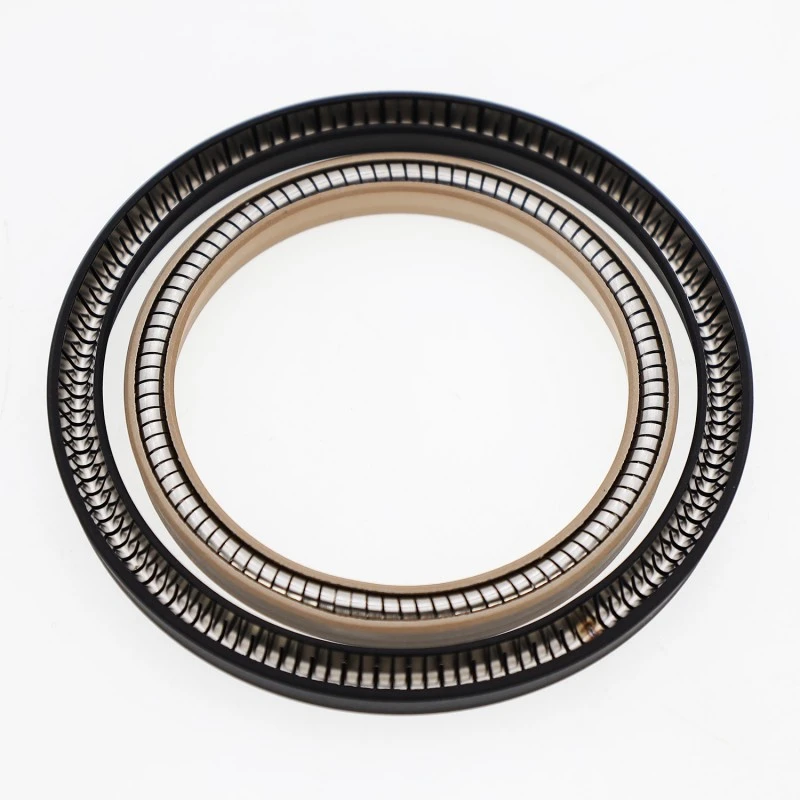

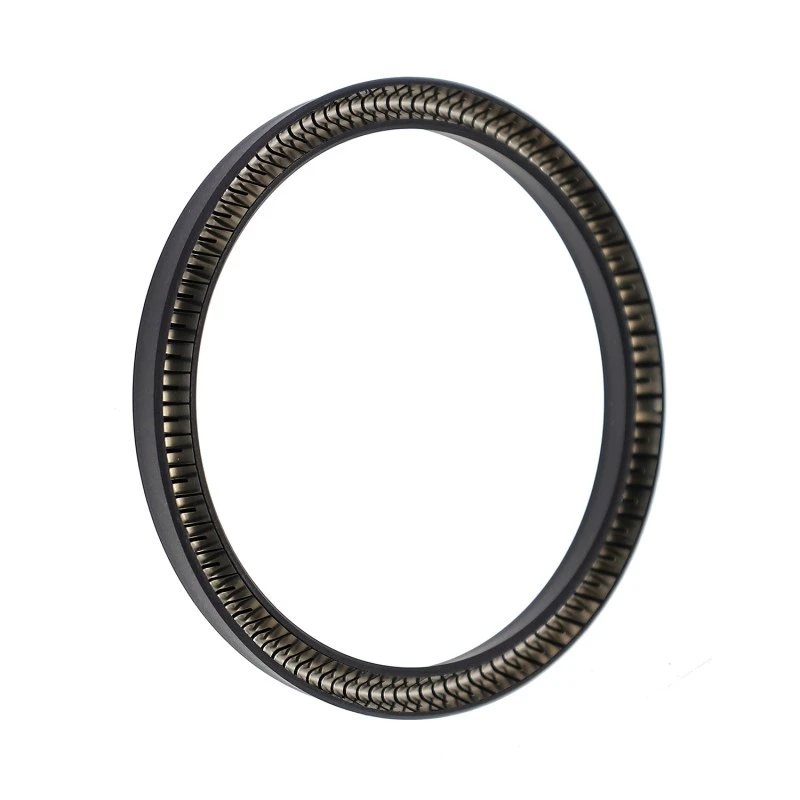

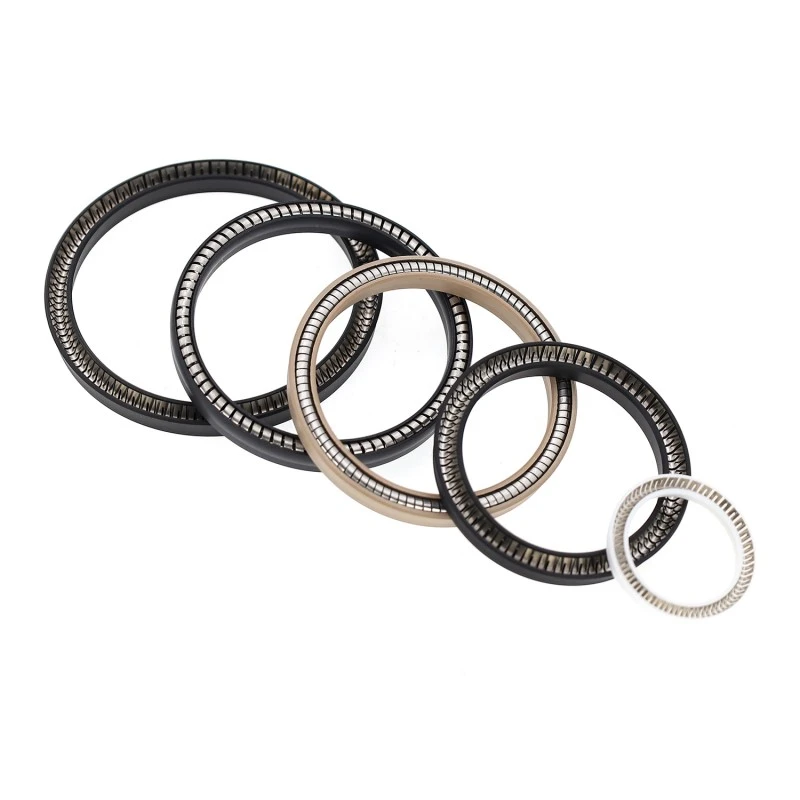

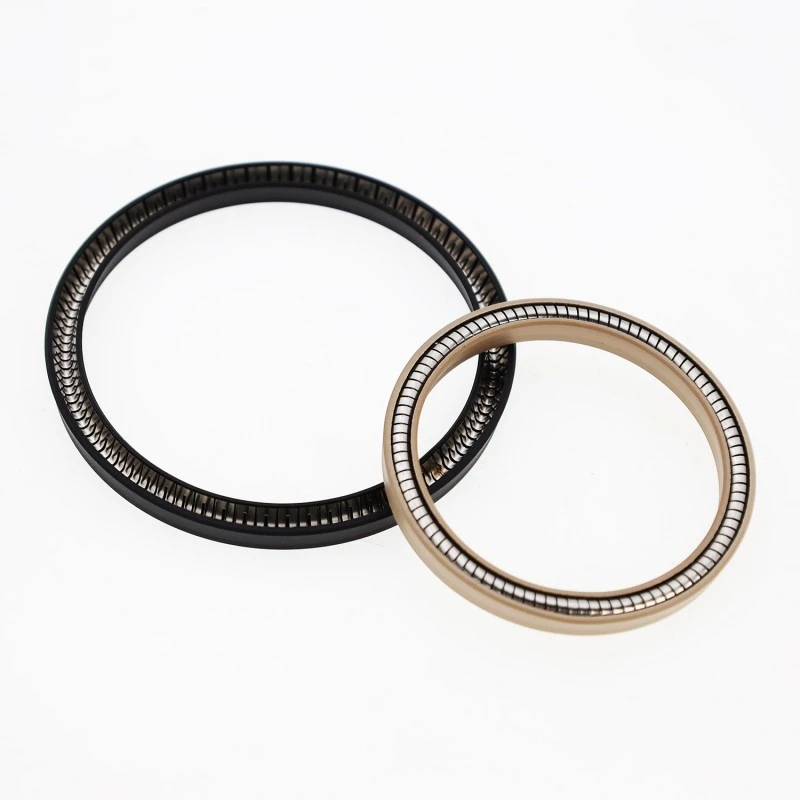

Sigillum ver-activum RC16 componitur ex vere incorrupta ferro et plastica alta perficiendi. Vere chalybs immaculata esse potest vel fons V informatus vel O-formatus. Cum utens RC16-B, materia opportuna elastomer seligi debet.
|
Pressura MPa |
Celeritas m/s* |
Temperature °C |
Medium |
||
|
RC16<40 |
RC16-B<80 |
<10 |
RC16-200~+250 |
RC16-B-35~+250 |
Fere omnibus instrumentis |
Materia Electio
1. Materia anuli o-anuli sumi potest ex: R01 Flexilis nitrilis (NBR), R02 Fluororubber (FKM), etc.
2. Materiae anuli signantes includunt: PTFE1, PTFE2, PTFE3, PTFE4, UPE, PK1, PK2, etc.
3. Sine ferro fontes possunt esse vel O-formatus vel V-formatus.
Order example
RC16-40-PTFE4+V: Shaft diametri 40, materia anuli signandi est PTFE4, fons chalybis immaculatus est fons V informatus.
RC16-B-40-PTFE4+R02: Shaft diameter 40, anulus signans materia est PTFE4, congruens O-anulus factus e fluororubber.

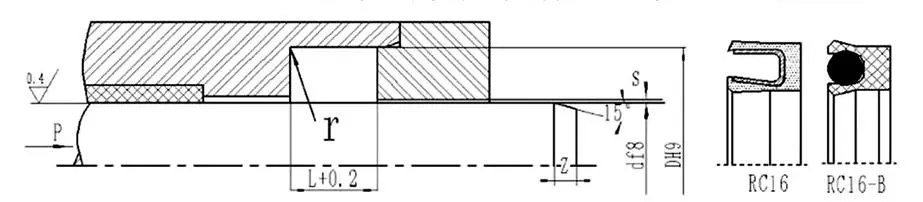

Specificationes et parametri mensae (quaelibet amplitudo intra certum range est available)
|
df8 |
DH9 |
L+0.2 |
Smax(<20MPA) |
Smax(<40MPA) |
Zmin |
rmax |
|
4~9.9 |
d+2.9 |
2.4 |
0.08 |
0.05 |
0.8L |
0.4 |
|
10~19.9 |
d+4.5 |
3.6 |
0.10 |
0.07 |
0.4 |
|
|
20~39.9 |
d+6.2 |
4.8 |
0.15 |
0.08 |
0.6 |
|
|
40~ 119.9 |
d+9.4 |
7.1 |
0.20 |
0.10 |
0.8 |
|
|
120~M |
d+12.2 |
9.5 |
0.25 |
0.12 |
0.8 |
Installatio sigilli PTFE: sulci aperta plerumque adhibentur; ad institutionem in striatis clausis, ad paginam 160 sigilli PTFE institutionis instructionis referre placet.
Tabulae specierum ac dimensionum (Si specificationes tuae requisitae in hac tabula non recensentur, pete societatem nostram; nos fructus usque ad 1600mm supplere possumus).
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
d |
D |
L |
|
10 |
14.5 |
3.6 |
32 |
38.2 |
4.8 |
60 |
69.4 |
7.1 |
120 |
132.2 |
9.5 |
230 |
242.2 |
9.5 |
||||
|
12 |
16.5 |
3.6 |
35 |
41.2 |
4.8 |
63 |
72.4 |
7.1 |
130 |
142.2 |
9.5 |
240 |
252.2 |
9.5 |
||||
|
14 |
18.5 |
3.6 |
36 |
42.2 |
4.8 |
65 |
74.4 |
7.1 |
140 |
152.2 |
9.5 |
250 |
262.2 |
9.5 |
||||
|
15 |
19.5 |
3.6 |
40 |
49.4 |
7.1 |
70 |
79.4 |
7.1 |
150 |
162.2 |
9.5 |
280 |
292.2 |
9.5 |
||||
|
16 |
20.5 |
3.6 |
42 |
51.4 |
7.1 |
75 |
84.4 |
7.1 |
160 |
172.2 |
9.5 |
300 |
312.2 |
9.5 |
||||
|
18 |
22.5 |
3.6 |
45 |
54.4 |
7.1 |
80 |
89.4 |
7.1 |
170 |
182.2 |
9.5 |
320 |
332.2 |
9.5 |
||||
|
20 |
26.2 |
4.8 |
48 |
57.4 |
7.1 |
85 |
94.4 |
7.1 |
180 |
192.2 |
9.5 |
350 |
362.2 |
9.5 |
||||
|
22 |
28.2 |
4.8 |
50 |
59.4 |
7.1 |
90 |
99.4 |
7.1 |
190 |
202.2 |
9.5 |
360 |
372.2 |
9.5 |
||||
|
25 |
31.2 |
4.8 |
52 |
61.4 |
7.1 |
100 |
109.4 |
7.1 |
200 |
212.2 |
9.5 |
400 |
412.2 |
9.5 |
||||
|
28 |
34.2 |
4.8 |
55 |
64.4 |
7.1 |
110 |
119.4 |
7.1 |
210 |
222.2 |
9.5 |
500 |
512.2 |
9.5 |
||||
|
30 |
36.2 |
4.8 |
56 |
65.4 |
7.1 |
115 |
124.4 |
7.1 |
220 |
232.2 |
9.5 |
600 |
612.2 |
9.5 |
Ruichen solutiones obsignandi feliciter applicatae sunt in multis inceptis iconicis et apparatu critico in toto orbe. Sigilla nostra alta pressa sunt electa ab inclita fabrica ventorum Europaeorum ad usum in pix hydraulica potestate systematis eorum turbines submovendi. Haec sigilla fideliter per quinque annos in summa salsi imbre operati sunt, altae humiditatis, et infimae temperaturae ambitus, altam laudem a cliente promerentes.
Interim nostri fructus chemici renitentes signandi feliciter exportati sunt ad magnum consilium petrochemicum in Medio Oriente, ubi adhibentur in petendis chemicis translationis soleatus. Eorum resistentia corrosio clientem securum, liberorum continuorum productionem adiuvit.
Hae felicis causae internationales plene demonstrant Ruichen productos in mundissima qualitate et applicatione signa severissima occurrere.
