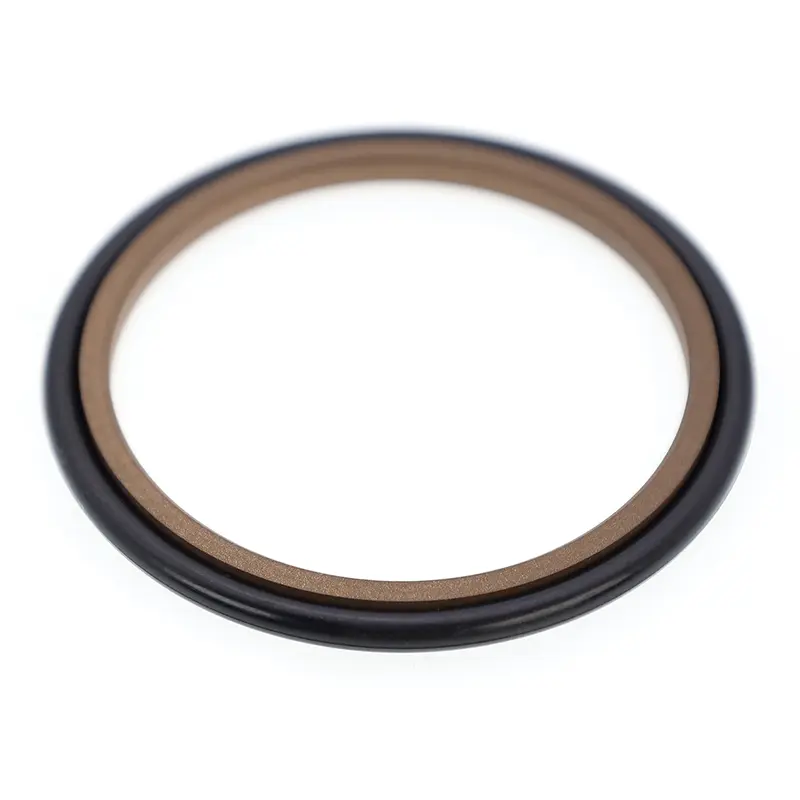

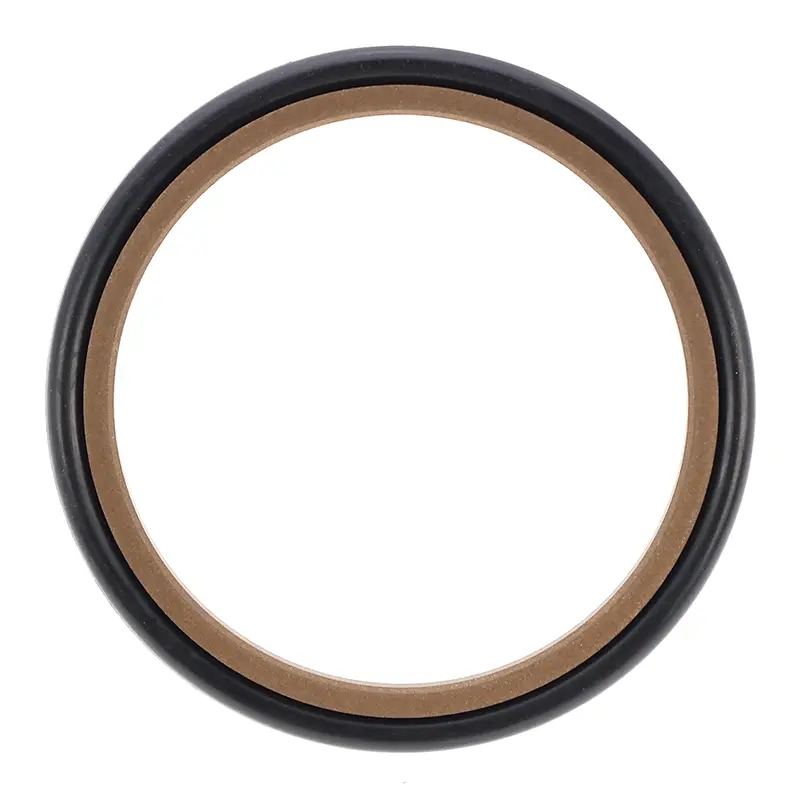

GLYD Ringae pro spiculis constant e PTFE annulo obsignatione rectangula referto et anulo O-, pressioni bidirectionis apto ad signationem applicationum hydraulicarum reciprocum. O-anulus vim radialem praebet et anulum togam sigilli compensat. Solent in conjunctione cum duce anulo. Striatus (apertus) utendum est pro diametro virga minus quam 30mm.
Features:
1. Humilis frictio, humilis resistentia, motus lenis, aequalis frictio dynamica et static, et nulla subrepens;
2. Altus nixus stabili pressus et graues;
3. Longa vita, apta ad oleum liberum signandum;
4. Apta instrumentorum viscositas ad signandum low-sicut aqua;
Locus operantes conditiones (neque valores limites simul apparent)
|
Pressura Mpa |
Temperatus |
Celeritas m/s* |
Medium |
|
≤60 |
-35~ + 100 (adaequatio O-annuli NBR) |
≤6 |
Minerali-fundatur oleum hydrauticum, flamma retardat fluidum (HFA/HFB), aqua, etc. |
|
-20~ + 200 (adaequatio O-annuli FKM) |
Materia Electio
1. Materiae anuli in promptu: R01 Flexilis nitrile-butadiene (NBR), RO2 Fluororubber (FKM) etc.
2. Materiae anuli signantes: PTFE2, PTFE3, PTFE4, PU, etc.
Exemplum ordinans
Order Model: RC11-40x55.1x6.3-PTFE3-R01
Exemplar Ordinis: RC11-B-40x55.1x6.3-PTFE3-RO2 Exemplar: Rod Diameter x sulcus diametrus x sulcus Latitudo PTFE3 (Modified PTFE) Codex Materialis: R01, R02 - O-Ring Code Material
