Scapus RCUR sigillum asymmetricum est sigillum asymmetricum ad virgas pistonas dispositas, aptas ad unum-modo signandum in applicationibus hydraulicis reciprocis, praestantibus obsignandis muneribus praestandis. Sulcus ISO 5597. Est sigillum secundarium in systematibus obsignandis.
Features:
1. Praeclara stabilis et dynamica perficientur signatio;
2. Fortis oleum residua recuperandi facultatem sub conditionibus dynamicis;
3. Simplex structura, facilem institutionem et sustentationem.
Lorem Operating Conditions (extremi valores non videntur simul)
|
Pressura Mpa |
Temperatus |
Celeritas m/s* |
Medium |
|
≤35 |
-30~+100 |
≤0.5 |
Oleum hydraulicum, mineralium, emulsio, &c. |
Materia Electio
Polyurethane (PU)
Exemplum ordinans
Order Model RCUR 63x73x10 Rod Diameter x Groove Diameter x Sigillum Height

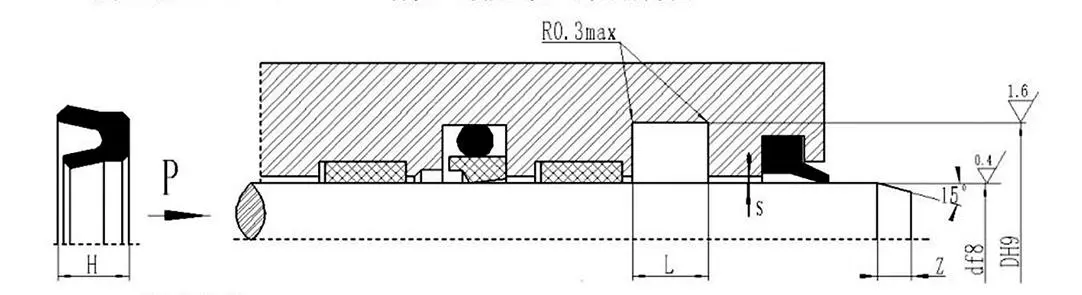

Extrusio Gap
|
Pressura / Mpa |
Extrusio gap Smax |
|
|
Diameter rod d≤60mm |
Virgula diameter d>60mm |
|
|
≤5 |
0.4 |
0.5 |
|
≤10 |
0.3 |
0.4 |
|
≤20 |
0.2 |
0.3 |
|
≤30 |
0.15 |
0.2 |
|
≤40 |
0.1 |
0.15 |
