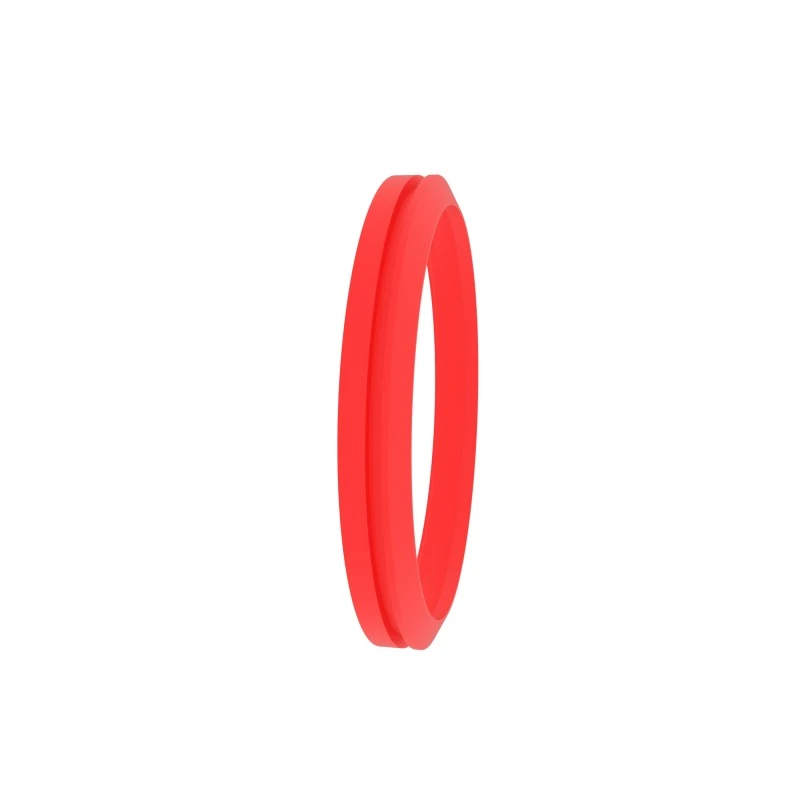

Ut a elit professional savening solutions, in RCA series pulveris sigillum tergo signacula launched ab Ruichen signacula habet diversificatur consilia et targeted munera, plene covering in Core necessitatibus et industriae agro ad pulvis ne, pressura resistentia et environmental adpretionem.
In terms of technica consilio et pulvis sigillum sigillis series products sunt sitas in flexibilitate. Sunt generales sigillis (ut RCA101 / CIV / CV), quae sunt installed cum extruditur exterius diametri, quae compatible cum ISO (VI) CXCV-a vexillum striatus et idoneam ad pacto spatio scaturios; Sunt etiam exempla cum integrated anti-extrusionem sceleta (ut RCA103 / CVI), quod augendae structural stabilitatem sub dynamic onerat per axial apertum sulcus Design (ISO (VI) CXCV-b). Nam speciale operantes condiciones, RCA107 Supports XXX ° inclinatus sulcus installation et compatible cum imperatoria et metrica apparatu, cum RCA108 simplifies ad sustentationem processus of vetus cylindra per LABIBUS fixing consilio, significantly reducendo per LABIS Taxatio Design, significantly reducendo sumptus de transformatione.
In terms of sectionem perficientur optimization, ut amplio reliability per innovative structurae: et oleum reditus sulcus Design de RCA101 promovet oleum refluxus et reduces pollutant; Et duplex labrum aut auxiliatur labrum structuram (RCA109 / CXI / CXII, etc.) quod combined cum tetrafluoroethylene coniuncta sigillum ad consequi dual-actio pulvis et oleum obice; and the composite design of PTFE (polytetrafluoroethylene) material and O-ring (RCA115~119) further balances the pressure distribution, is resistant to high temperatures of 250°C, and is resistant to chemical corrosion, suitable for clean environments such as semiconductors, food and medicine. Nam ultima operationem condiciones, RCA213 est in tempore cum Da series, uti summus duritia materiae resistere amet pollutants ut luto et bituminis, et tueri internus sigillum ex exesa.
In terms of application, in RCA series late adapted Engineering Machinery, Mining Equipment, Hydraulica et Pneumatic systems, et praecisione industriae agris. Exempli gratia, RCA111 / CCXI potest sustinere 1.6MPA princeps pressura, providente duplex tutela pro hydraulicis cylindricis; RCA115 ~ CXIX factus est primus arbitrium pro pulvis praeventionis praecisione apparatu ex eius non-reptile et humilis friction characteres; RCA108 praebet a velox solution ad sustentationem de antiquis apparatu sine opus ad modify in sulcus. In verbis materiae, nos hinc dare aequalis momenti ad environmental tutela et perficientur. PTFE Modification Technology accipit in rationem tam auto-lubricatae et gerunt resistentia. O-anulum elastomers (ut NBR), ensure stabilitatem. Quidam exempla monstrabit (ut rca119) uti a Silicone-liberum formula ad occursum stregring requisitis mundis officinis. Nam multis annis, Ruichen signacula semper intendebant ad "precise accommodationem et longa-term praesidium". Per RCA series, is succurro customers cope cum challenges talis sicut pulvis intrusionem, oleum leakage, et summus temperatus corrosio, providing sponderi ad efficientem operationem in apparatibus.
Product Features et Applications:
Pelagus Application: Standard DustProof enim oleum cylindri
Commoda: Pulvis sigillum sigillis sunt facile ut install, cum optimum anti-frictio et dustproof effectus. Non moveri in oppositum in cavitatis et non erit pressura inter sigillum anulum et dustproof anulum.
Material: Polyurethane, Flexilis
Imprimis application areas:
General DustProof (RCA101 ~ CV / CXIII / CXIV), late in Engineering Machinery et Automation apparatu resistere pulvis intrusionem.
Gravis et sustentacionem missionibus (RCA103 / CVI / CVIII): Ossa Support et LABIUM fixing consilio sunt apta summus onus scenarios ut metalla machinatione et vetus cylindri transformatio.
Precisione et dura environment (RCA115 ~ CXIX) Semiconductor, cibo et medicina et alia industries, occursum requisita non reptile, humilis frictio et corrosio resistentia.
Multi-vexillum compatibility: RCA107 sustinet Britanniae apparatu et RCA series plene Covers ISO (VI) CXCV Latin striatus ad simpliciorem selectio processus.

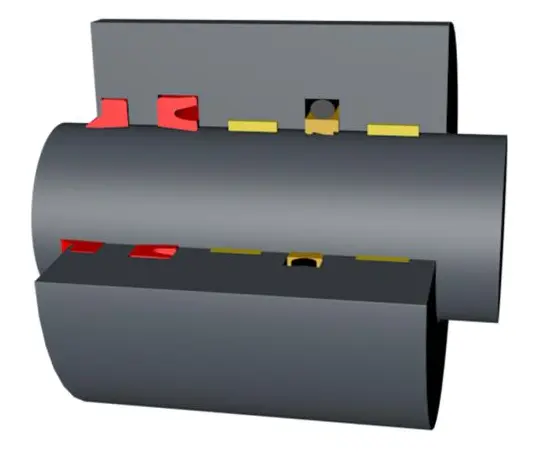

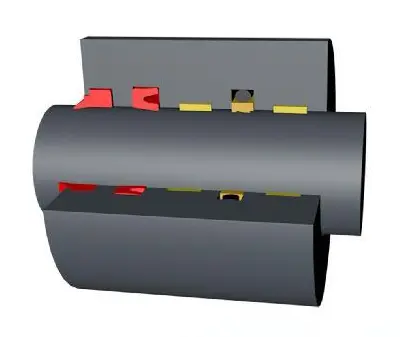

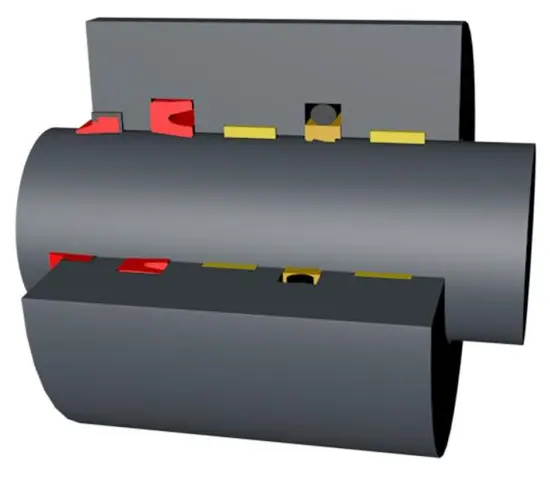

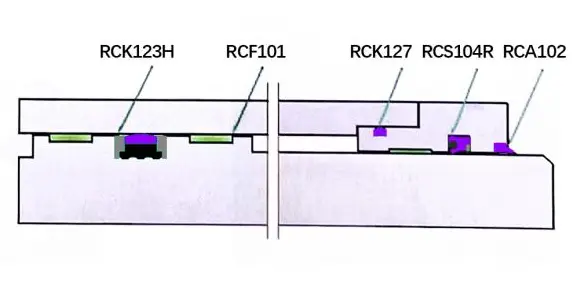

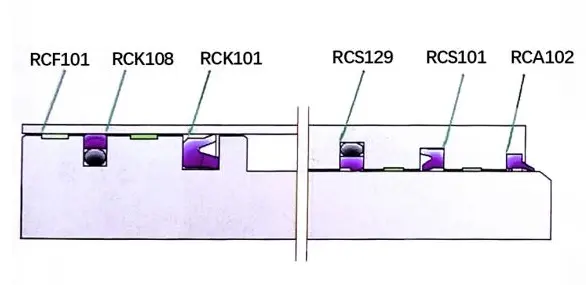

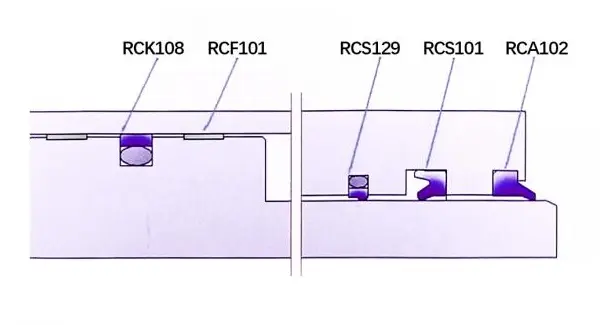

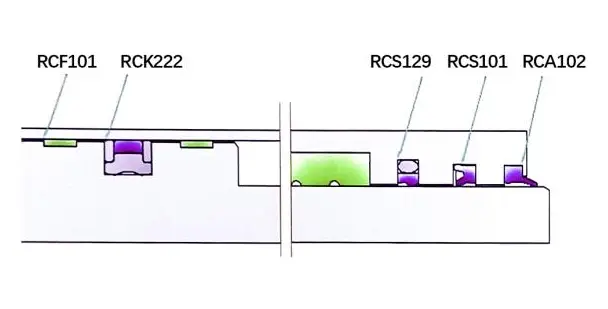

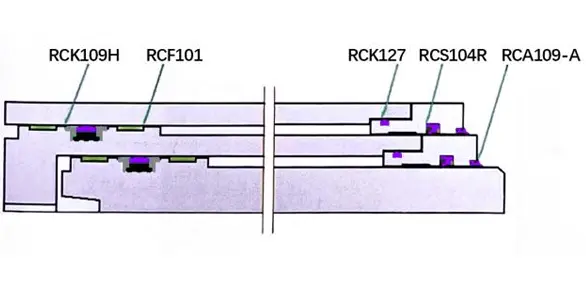

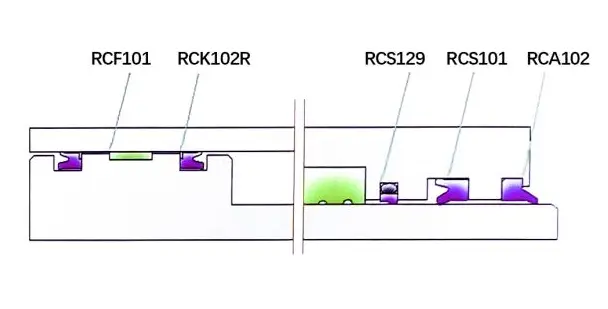

Signatio Application & Cylinder Design
Heavy Industry: Industry examples: heavy machine tools (forging machines, hydraulic presses, bending machines, etc.), metallurgy (rolling mills, AGC cylinders, etc.), mining (hydraulic supports, mining equipment, etc.), heavy construction machinery (cranes, excavators, etc.)

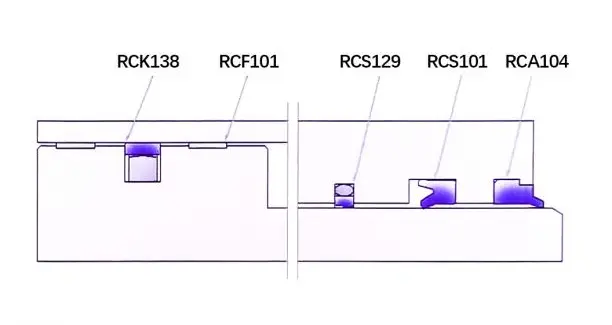

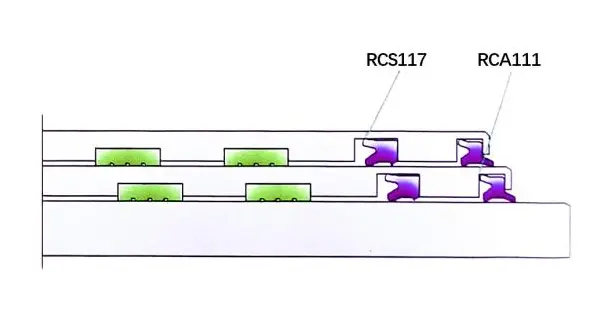

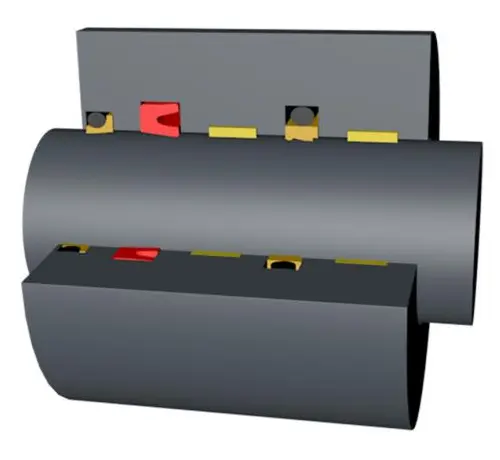

Commendatur Signum Design:
Grave fabricatione machina
Metallurgy AGC
HYDRAULICUS Support columna cylindri
HYDRAULICUS Support Custodi Jack
Crane elevatis cylindri
Culsam LUFFING CYLINDER
Medium Industry: Exempla Extremum Equipment, agriculturae Machinery, Lux onerariam Tools, elevatis tabulatis, machine (tending machinis, etc.), Forklifts, TUCK trucks,

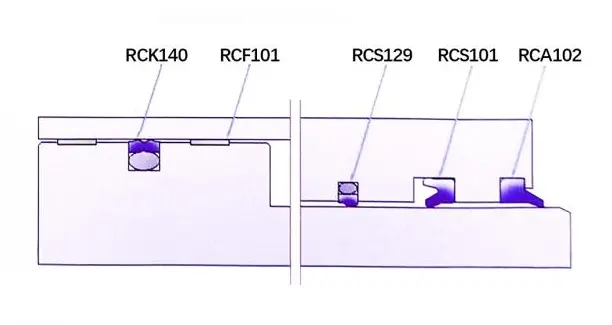

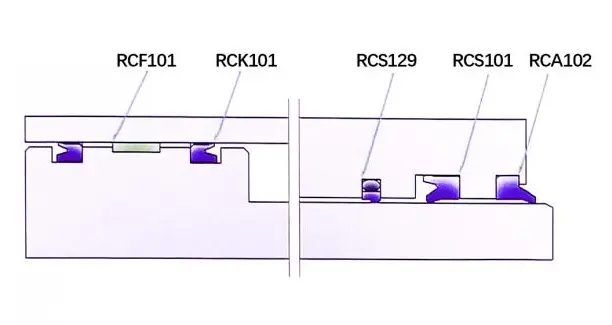

Commendatur Signum Design:
Tendentes Machina
TUBER CARRUS elevatio fabrica
Machinery agriculturae
Elevatis platform
Lux Industry: Exempla Exempla: Machina Tools, Forklifts, iniectio CUMATIUM Morte, agriculturae Machinery, Balers

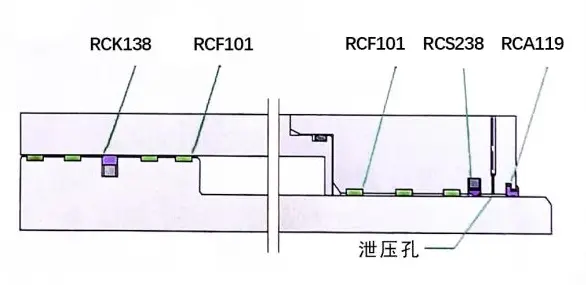

Commendatur Signum Design:
Forklift parva
Iniectio CUMATIUM Machina

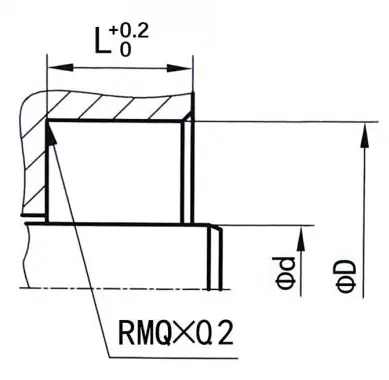

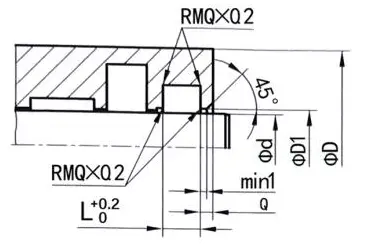

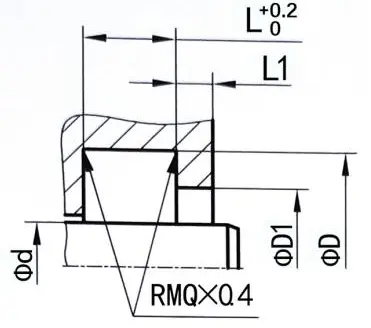

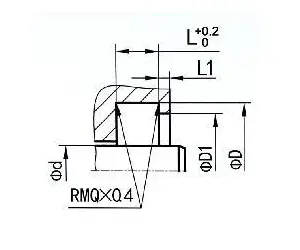

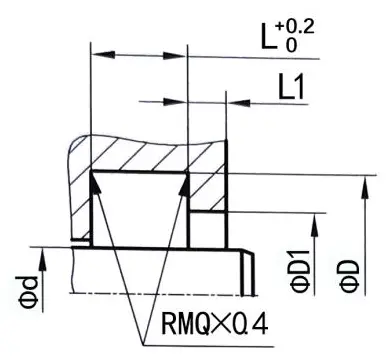

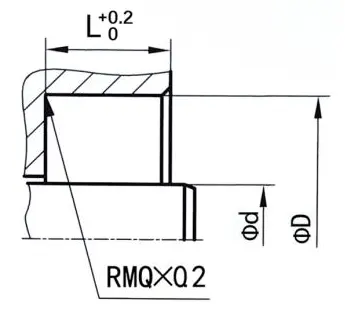

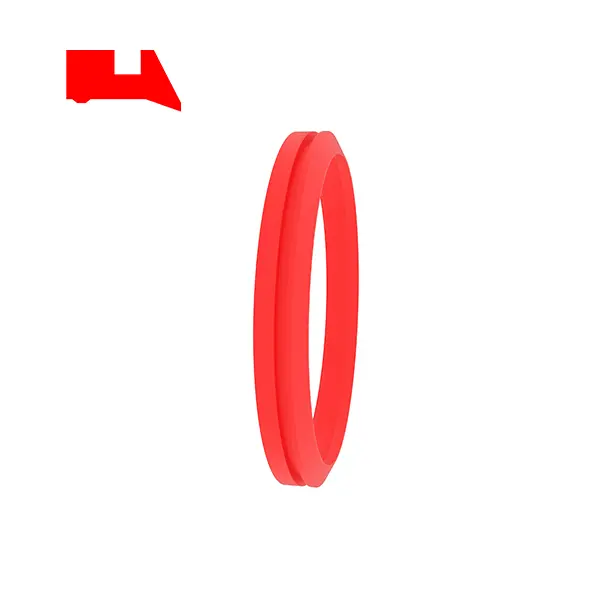

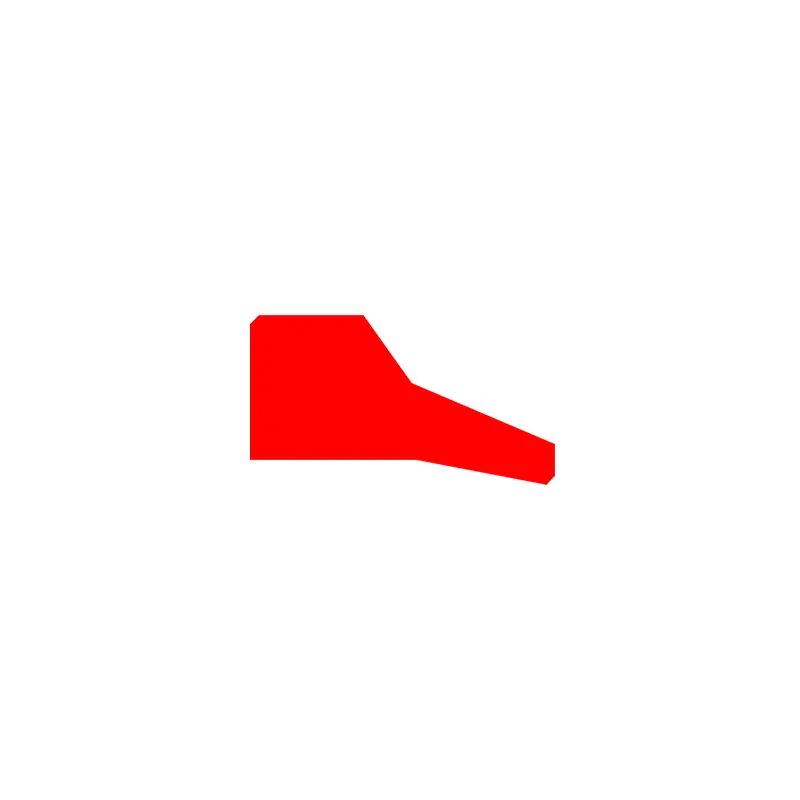

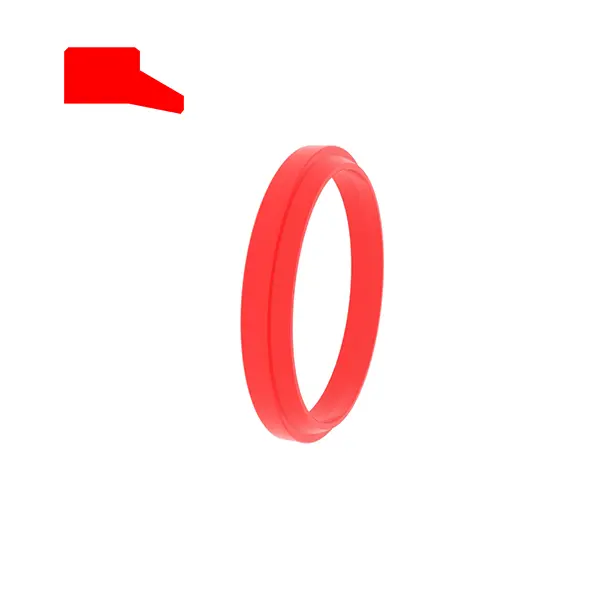

Pulvis sigillum sulcus

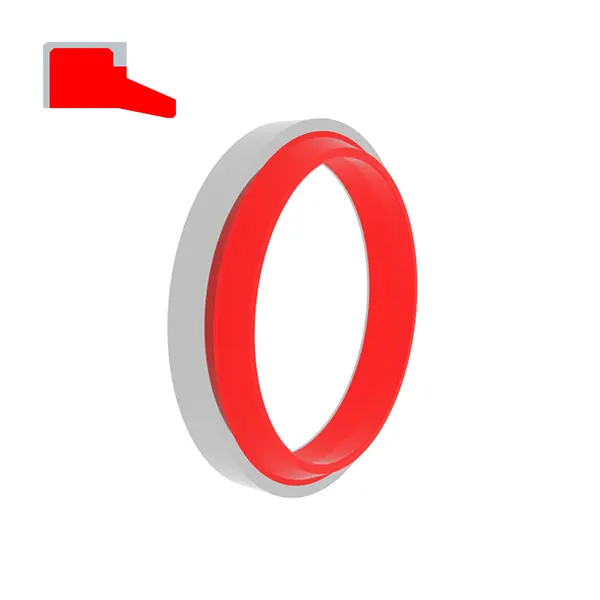

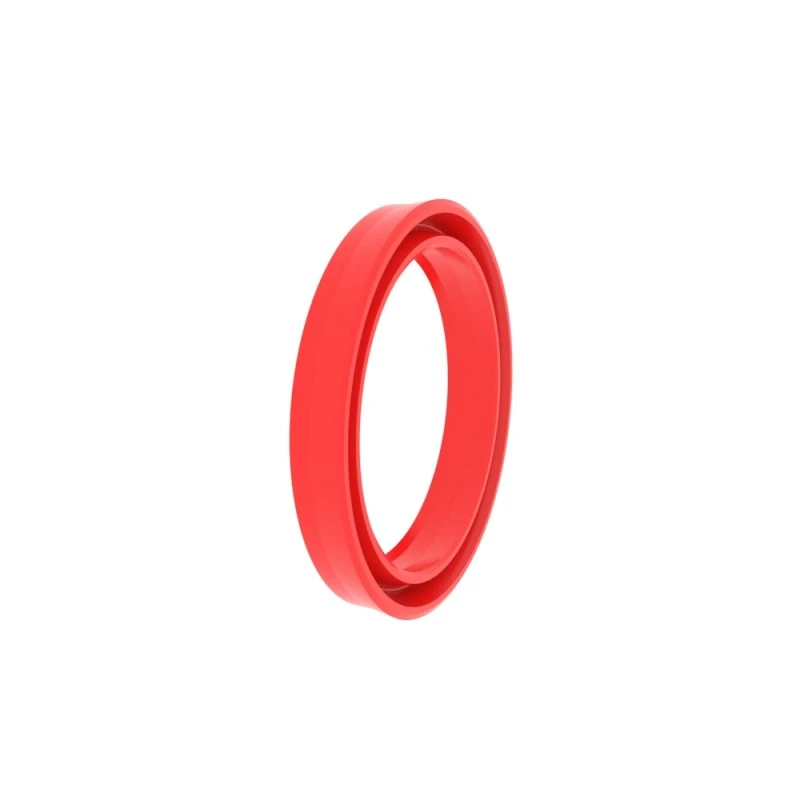

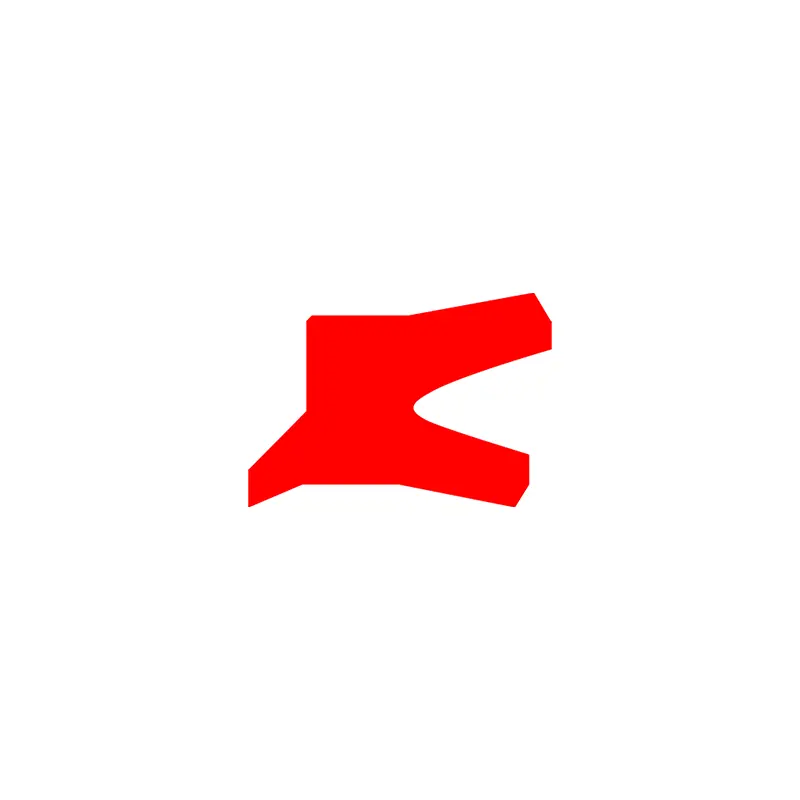

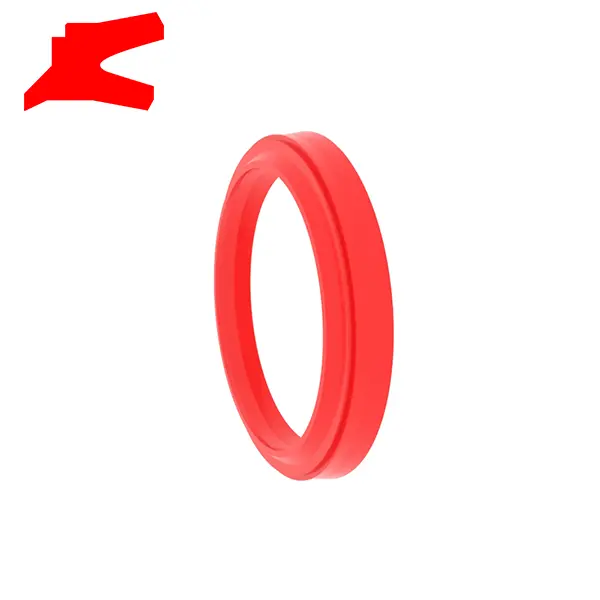

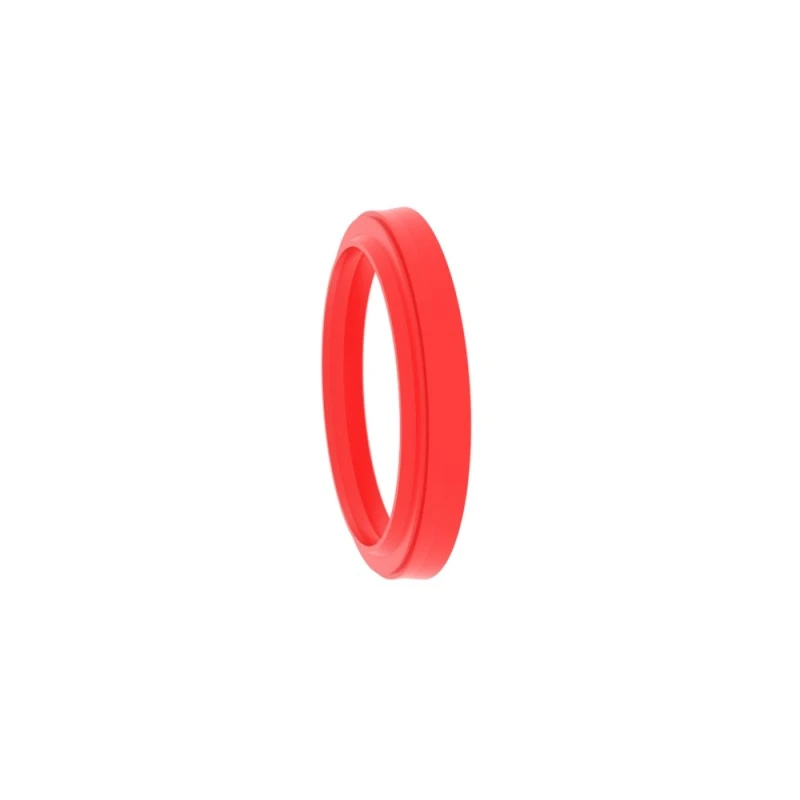

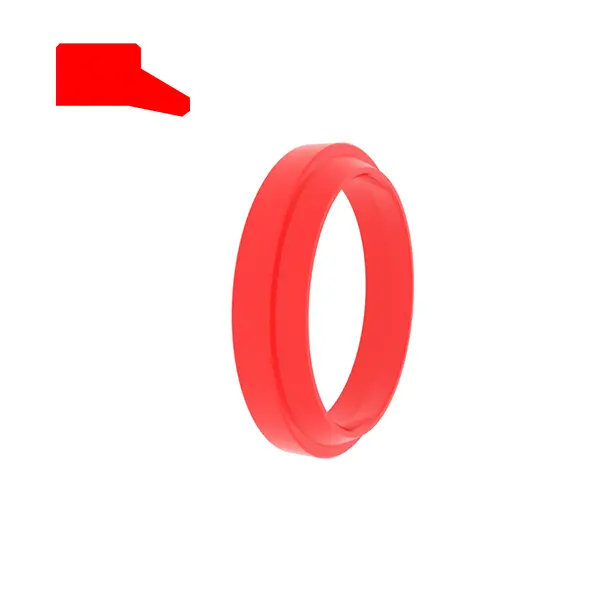

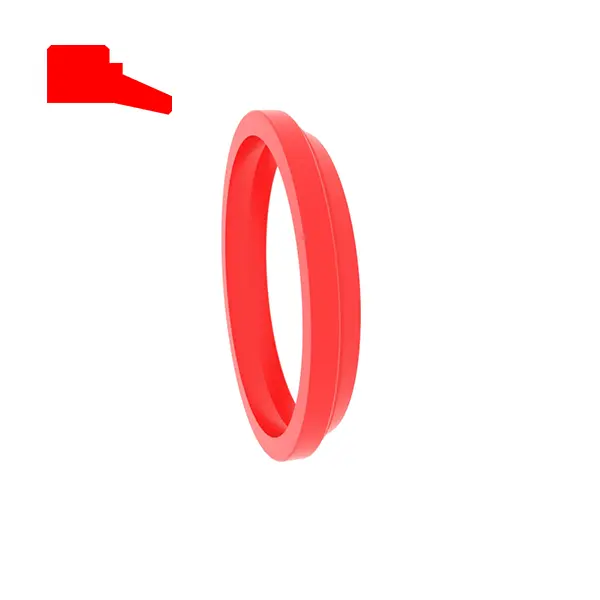

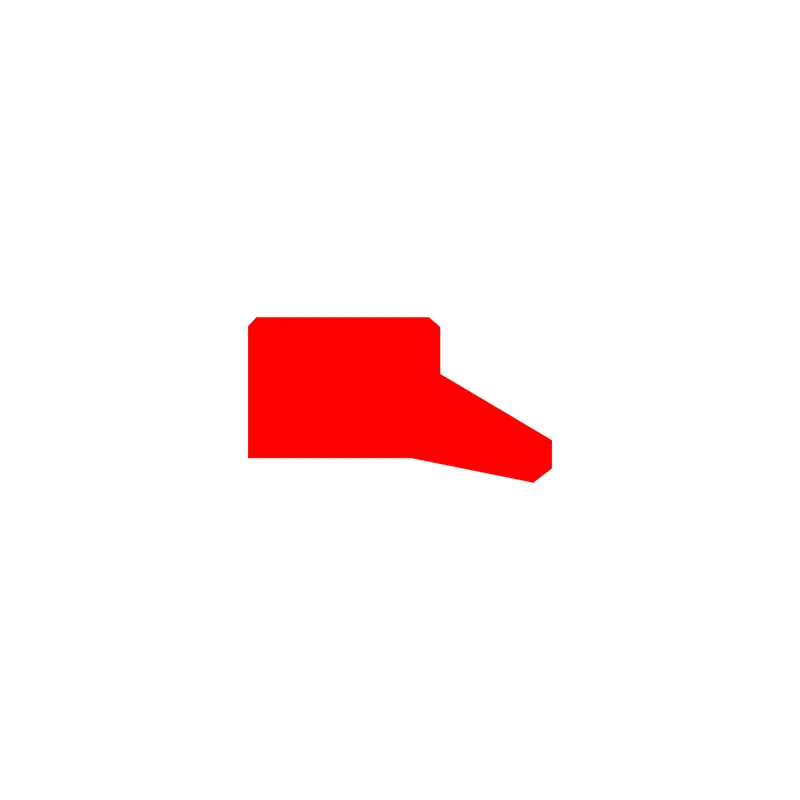

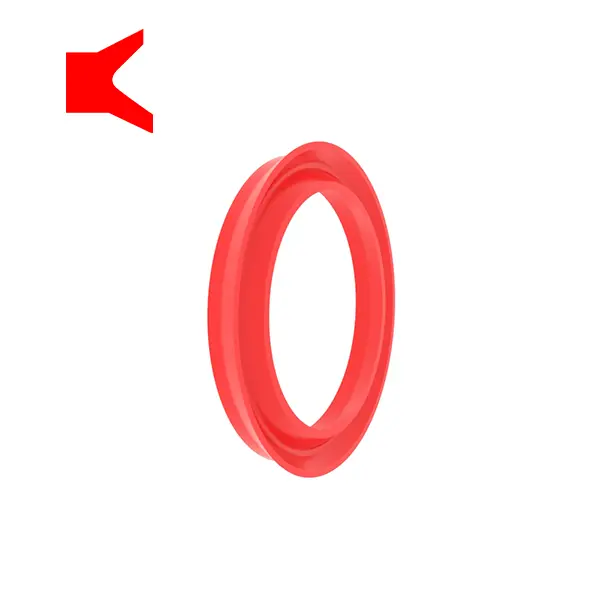

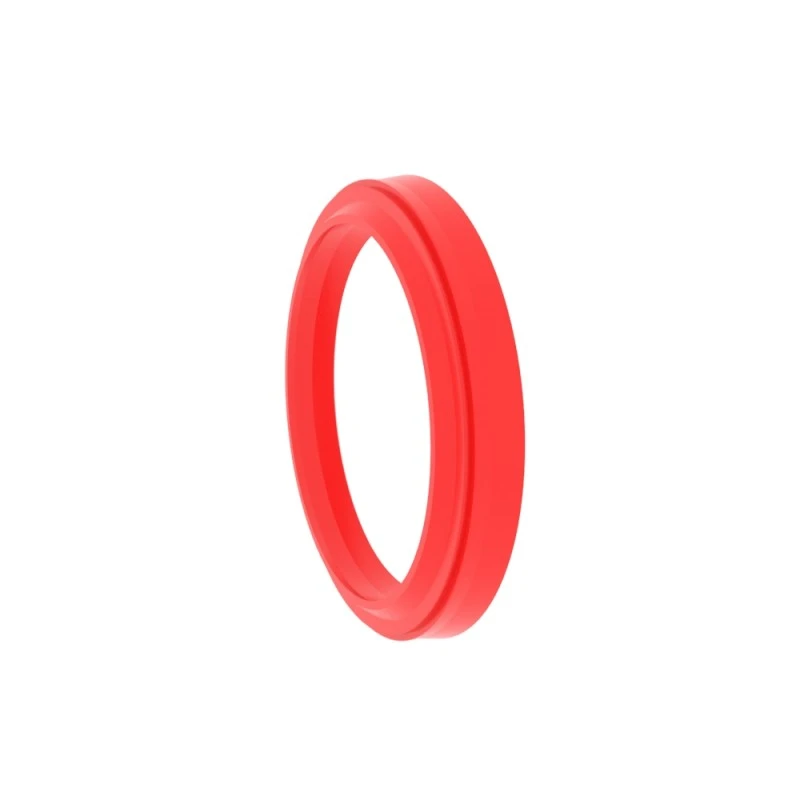

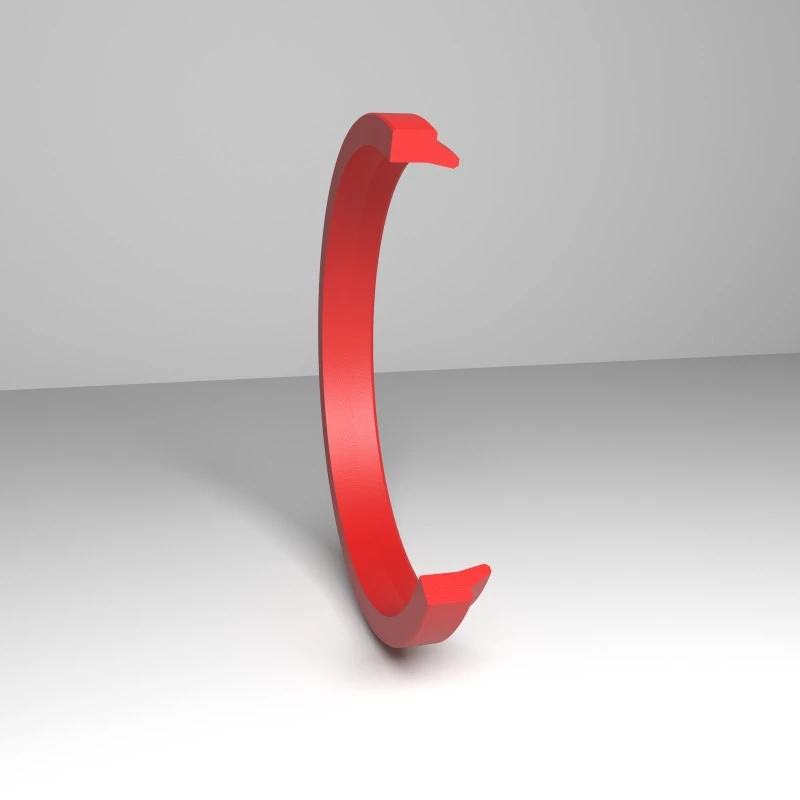

Rca101
Ordinem magnitudine
Φd ...... exterius diameter
Φd ...... interiorem diameter
L ...... sulcus width
H ...... summa altitudo pulveris sigillum
| Superficiem metam | R tmax (μm) | Ra (μm) |
| Slstring superficiem matching Flexilis / Polyurethane signacula Signa Ptfe Sigillis Sigilla | ≤2.5 ≤2 | ≤0.1-0.5 ≤0.05-0.3 |
| Sulcus imo Sulcus | ≤6.3 ≤15 | ≤1.6 ≤3 |
| TP Profile Support Longitudo Ratio | L% -95% |
|
| Tolerantia | |
| Φd1 H11 | L <10mm +0.2 |
| Φd H11 | L> 10mm +0.3 |
Ordinatione exemplum
Model: RCA101
Tempus Size: 100x108x4 / VII
Material: RC-Pu-H
Sigillum Type: RCA101, RCA104
Pelagus Application: Pulveris Pulvis Donec oleum Cylinders
Commoda: Simple installation, optimum anti-friction et dustproof effectus, nec vicissimam lumen in cavum, nullum pressura ostium inter signing anulum et pulvis anulum.
Material: Polyurethane, Flexilis

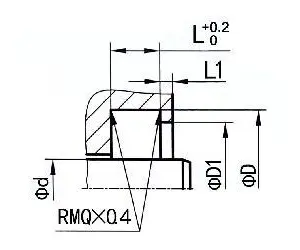

| Sigillum sulcus exempla | Et haec sint vexillum sulcus dimensiones (pulveris sigillis aliqua magnitudine in magnitudine rhoncus potest produci) | |||||||
 |
Rca101
|
Φd | Φd | FD1 | L | L1 | H | |
| 6-100 | Φd + VIII | VI φd VI | 4 | 1 | 7 | |||
|

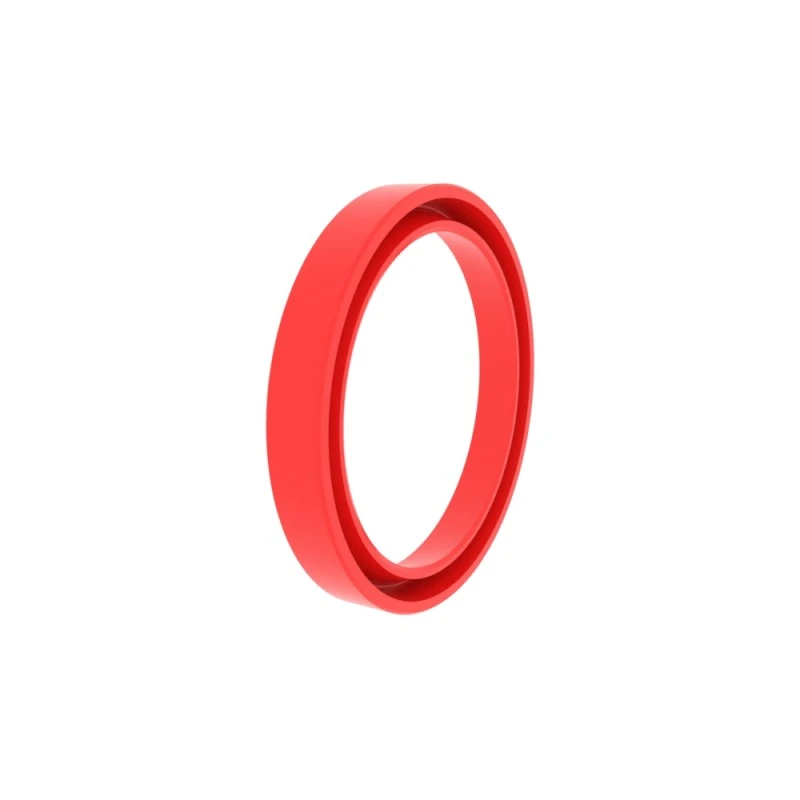

Rca104
|
100.1-149.9 | Φd + XII | Φd + IX | 5.5 | 1.5 | 10 | ||
| ≥150 | Φd + XV | Φd11 | 6.5 | 2 | 13 | |||

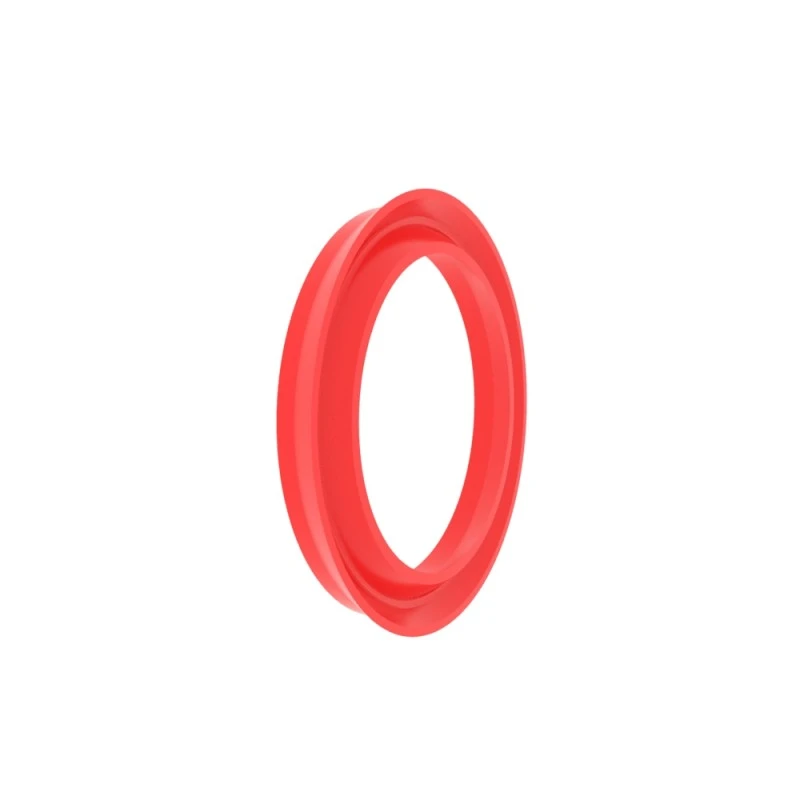

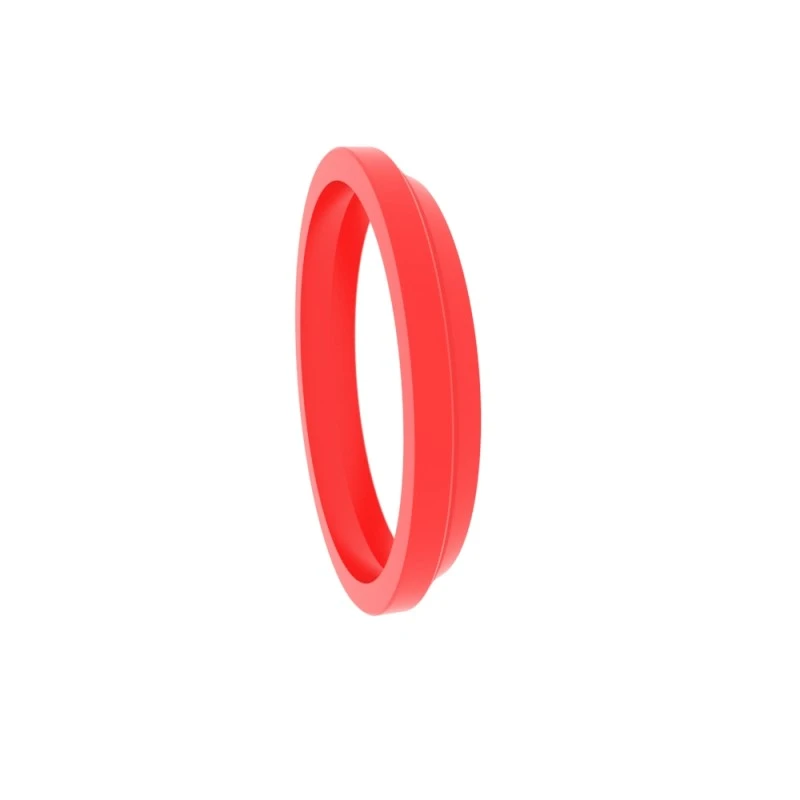

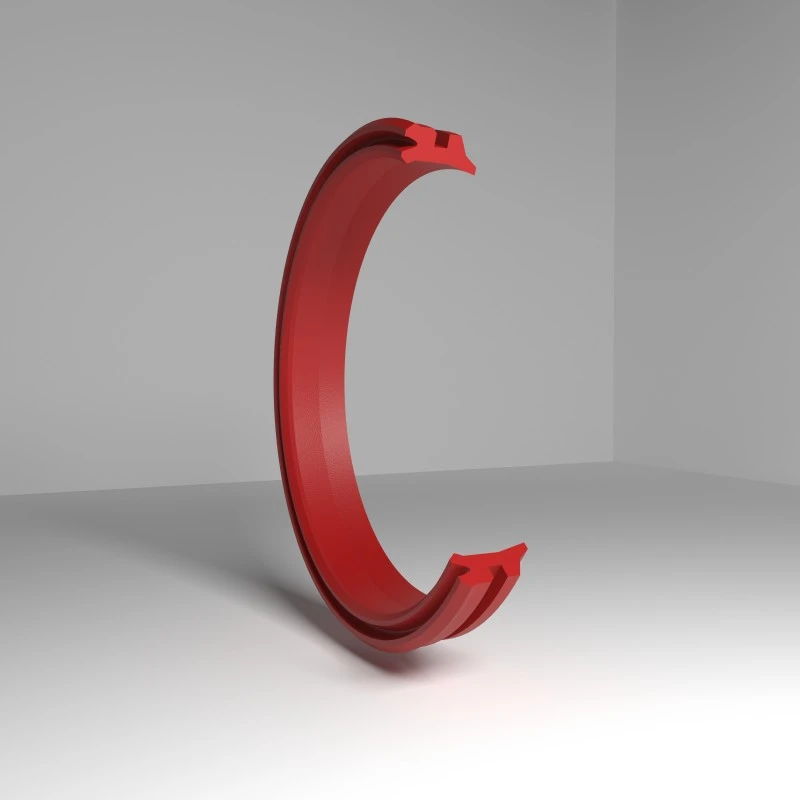

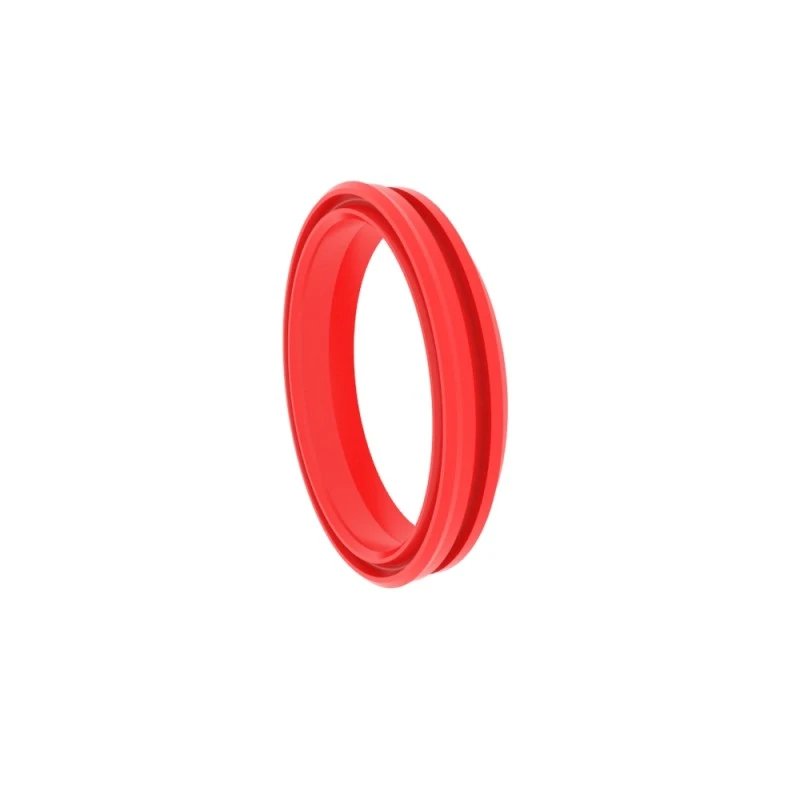

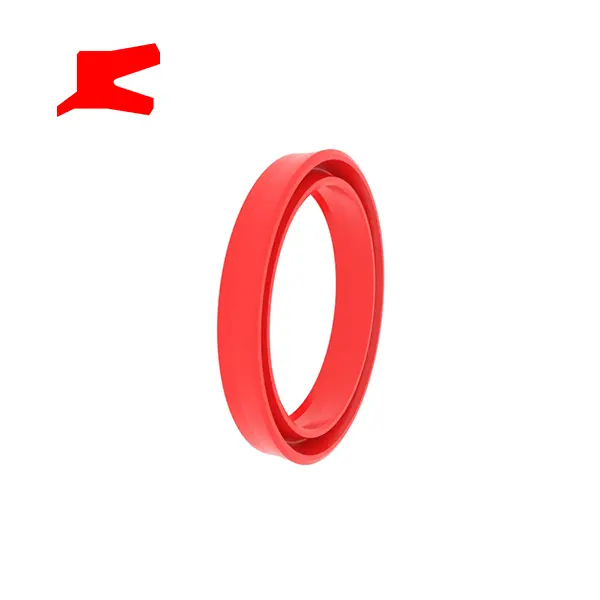

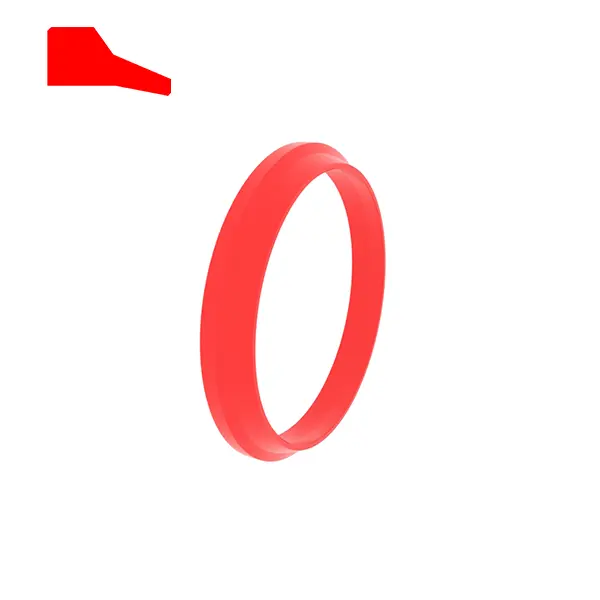

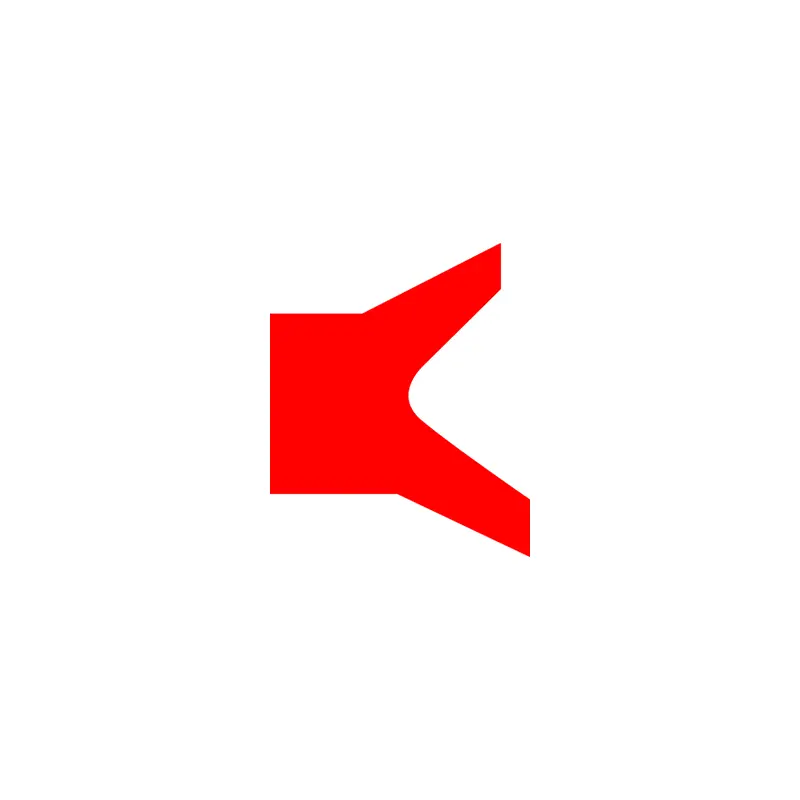

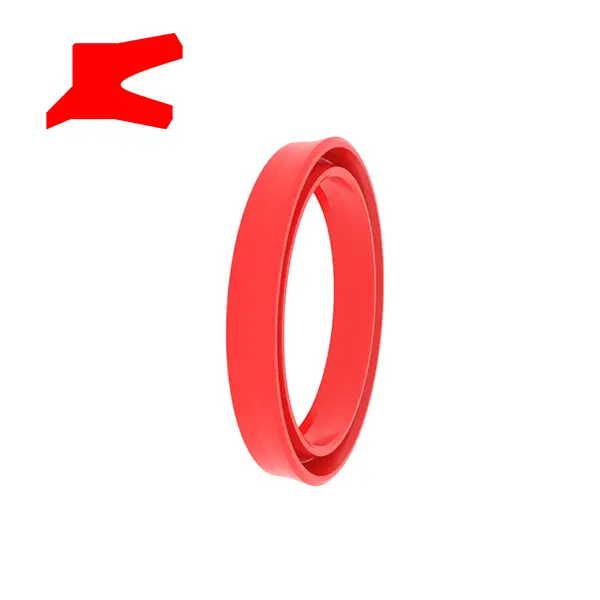

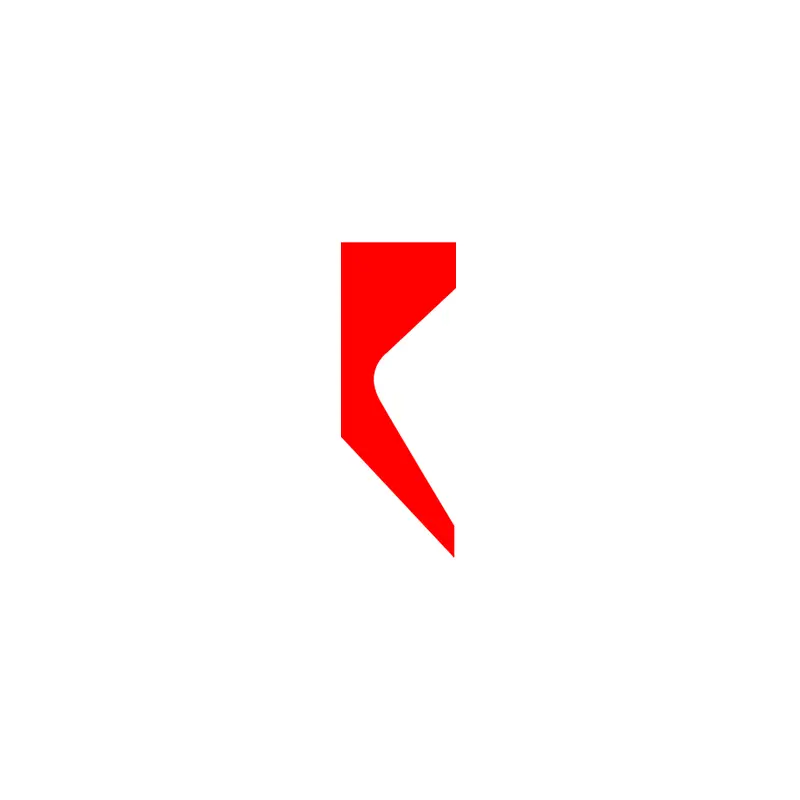

Rca102
Ordinem magnitudine
Φd ...... exterius diameter
Φd ...... interiorem diameter
L ...... sulcus width
H ...... summa altitudo pulveris sigillum
| Superficiem metam | R tmax (μm) | Ra (μm) |
| Slstring superficiem matching Flexilis / Polyurethane signacula Signa Ptfe Sigillis Sigilla | ≤2.5 ≤2 | ≤0.1-0.5 ≤0.05-0.3 |
| Sulcus imo Sulcus | ≤6.3 ≤15 | ≤1.6 ≤3 |
| TP Profile Support Longitudo Ratio | L% -95% |
|
| Tolerantia | |
| Φd1 H11 | L <10mm +0.2 |
| Φd H11 | L> 10mm +0.3 |
Ordinatione exemplum
Model: RCA102
Tempus Size / Summa Pulvis Sigillum altitudo: 100x115x8.5
Material: RC-Pu-H
Sigillum Type: RCA102, RCA105, RCA211
Pelagus applicationem: maxime usus est in illapsum combination Sigals
Commoda: bonum friction euismod, RCA211 Bidirectional Sigillum
Material: (Ultra-High Durate) Polyurethane, Flexilis
| Sigillum sulcus exempla | Et haec sint vexillum sulcus dimensiones (pulveris sigillis aliqua magnitudine in magnitudine rhoncus potest produci) | |||||||
 |
Rca102
|
Φd | Φd | FD1 | L | L1 | H | |
|
Rca105
|
6-49.9 | Φd + VIII | IV φd | 5 | ≥2 | 6 | ||
|
Rca211
|
50-99.9 | X φd + | V φd + | 6 | ≥2 | 7 | ||
| > C | Φd + XV | Φd + 7.5 | 8.5 | ≥2 | 11.5 | |||

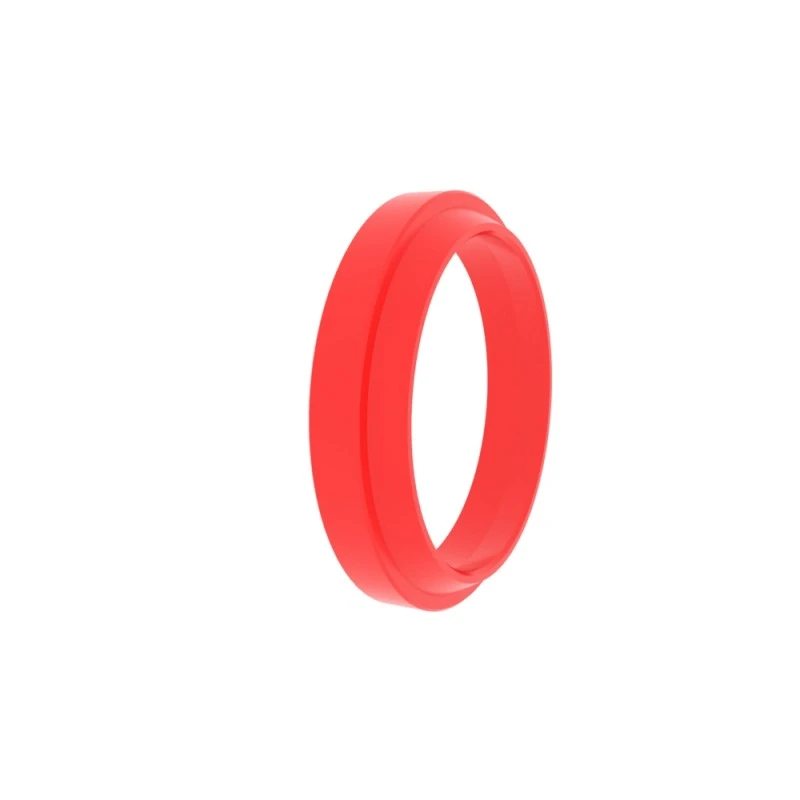

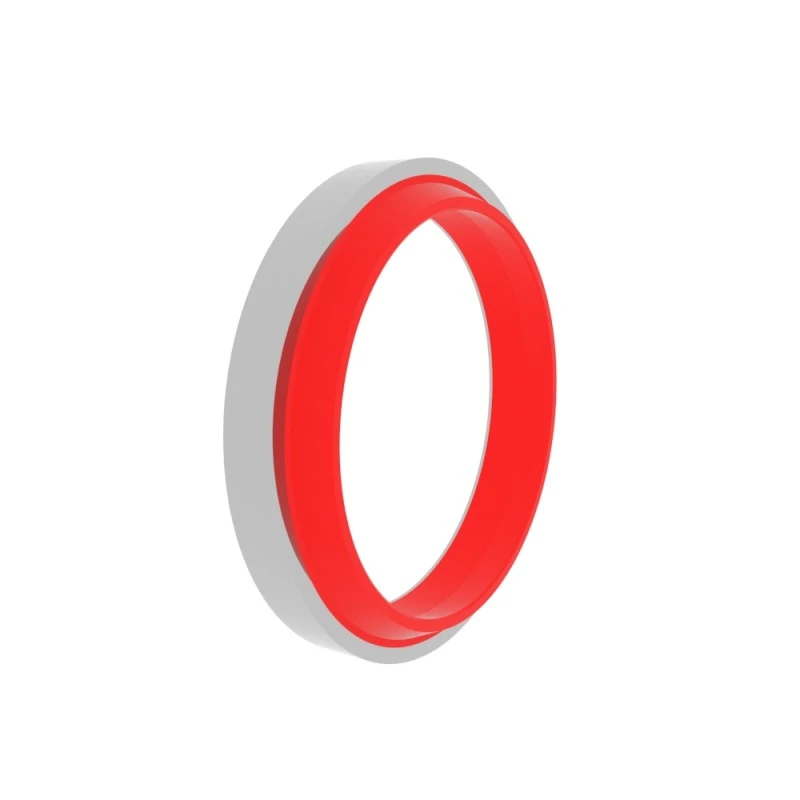

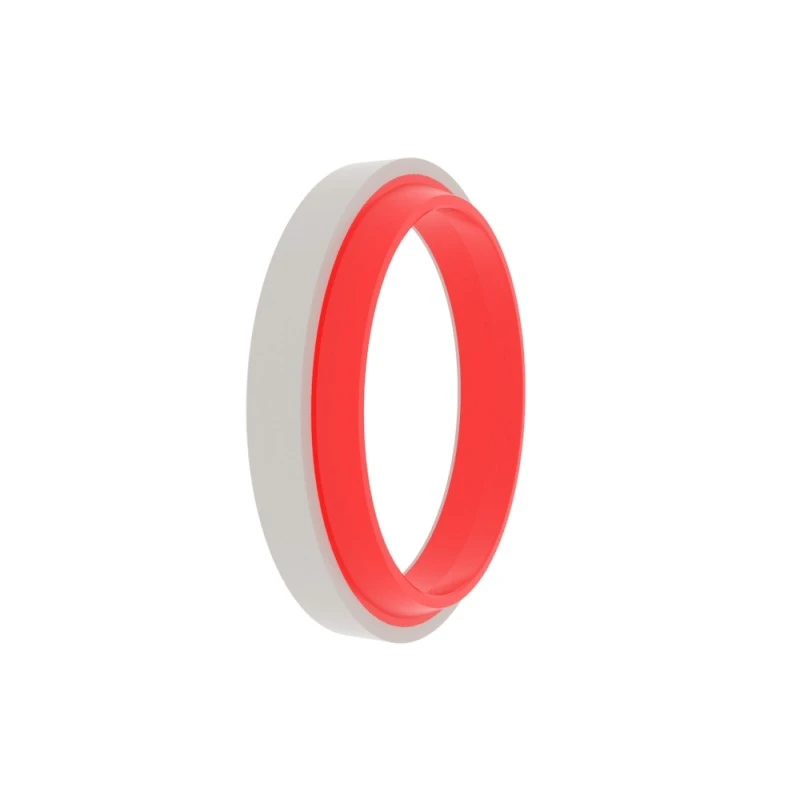

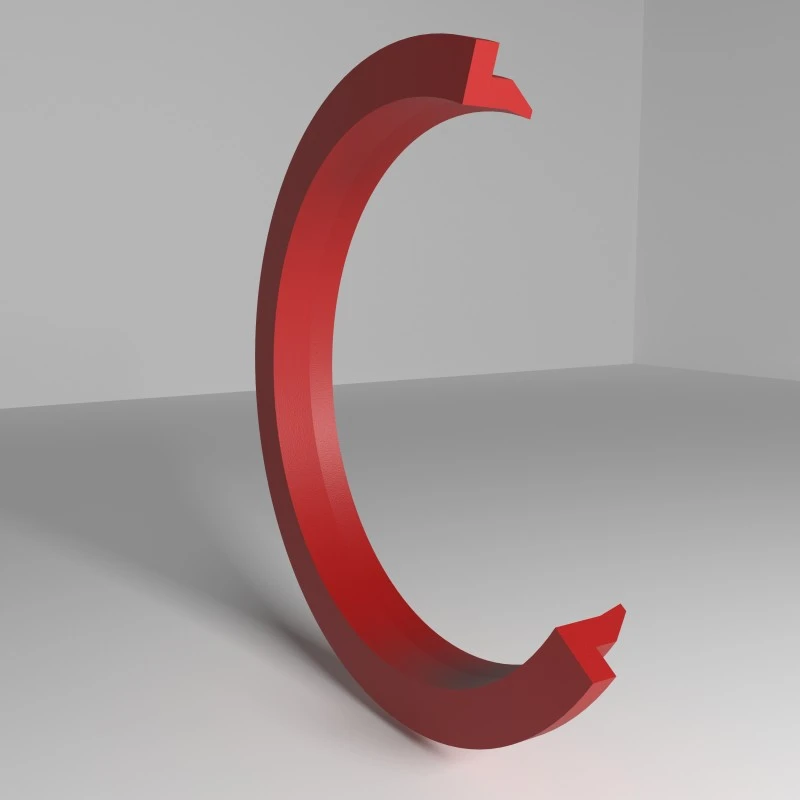

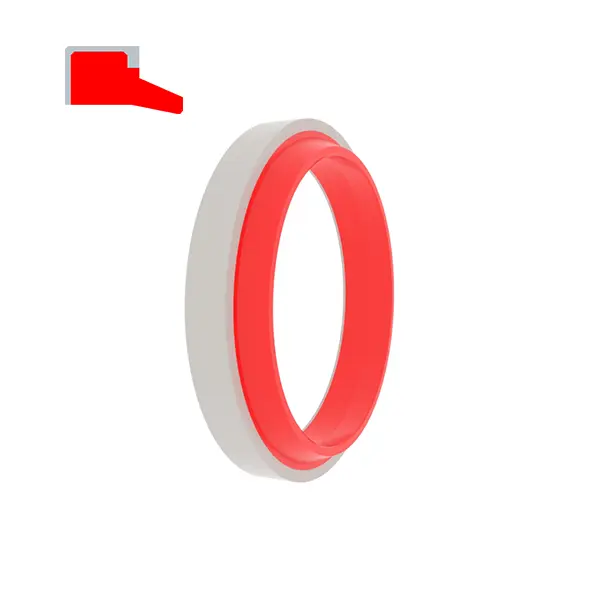

Rca103
Ordinem magnitudine
Φd ...... exterius diameter
Φd ...... interiorem diameter
L ...... sulcus width
H ...... summa altitudo pulveris sigillum
| Superficiem metam | R tmax (μm) | Ra (μm) |
| Slstring superficiem matching Flexilis / Polyurethane signacula Signa Ptfe Sigillis Sigilla | ≤2.5 ≤2 | ≤0.1-0.5 ≤0.05-0.3 |
| Sulcus imo Sulcus | ≤6.3 ≤15 | ≤1.6 ≤3 |
| TP Profile Support Longitudo Ratio | L% -95% |
|
| Tolerantia | |
| Φd1 H11 | L <10mm +0.2 |
| Φd H11 | L> 10mm +0.3 |
Ordinatione exemplum
Model: RCA103
Tempus Size / Summa Pulvis Signum Altitudo: 100x115x9 / XII
Material: RC-Pu-H + Pom
Sigillum Type: RCA103, RCA106
Pelagus Application: Latin Cylindrici et Open Grooves
Commoda: et anti-friction perficientur est bonum, et firmamentum anulus prohibet oxidatio ex occurrenti inter strepitum et sigillum, et positioning et apta in cavum firmanda.
Material: (Ultra-High durum) Polyurethane + Polyoxymethylene, Flexilis + Polyoxymethylene
| Sigillum sulcus exempla | Et haec sint vexillum sulcus dimensiones (pulveris sigillis aliqua magnitudine in magnitudine rhoncus potest produci) | |||||
 |
Rca103
|
Φd | Φd | L | H | |
| 6-9.9 |
Φd + VIII | 5 | 8 | |||
|
Rca106
|
10-99.9 | X φd + | 7 | 10 | ||
| 100-200 | Φd + XV | 9 | 12 | |||
| > CC | XX φd | 12 | 16 | |||

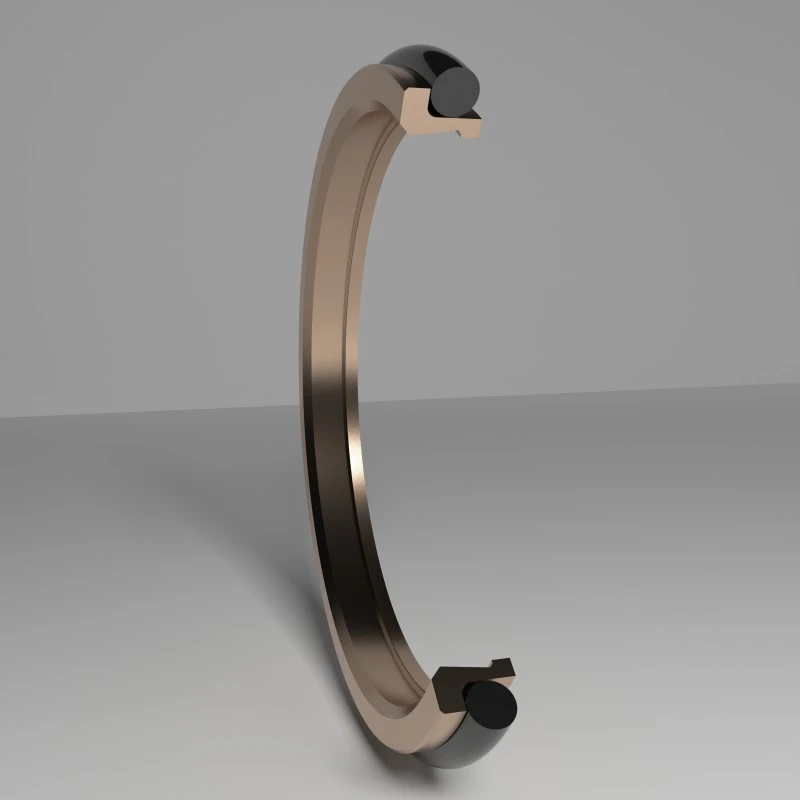

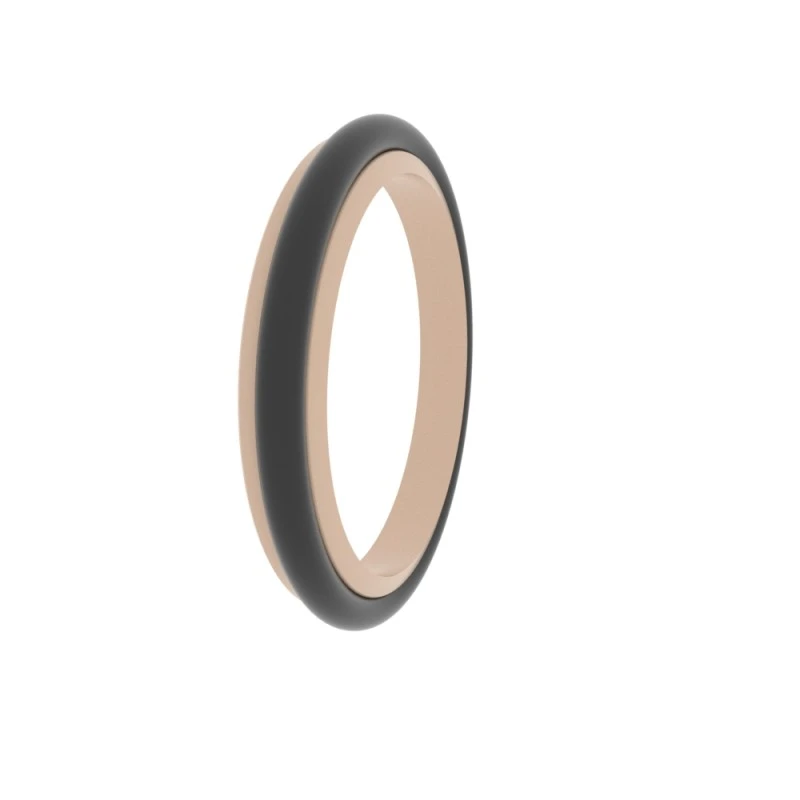

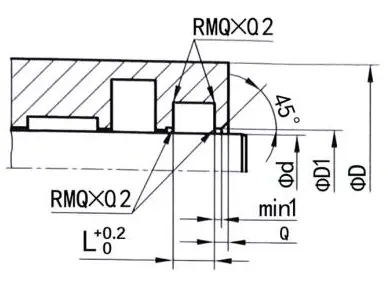

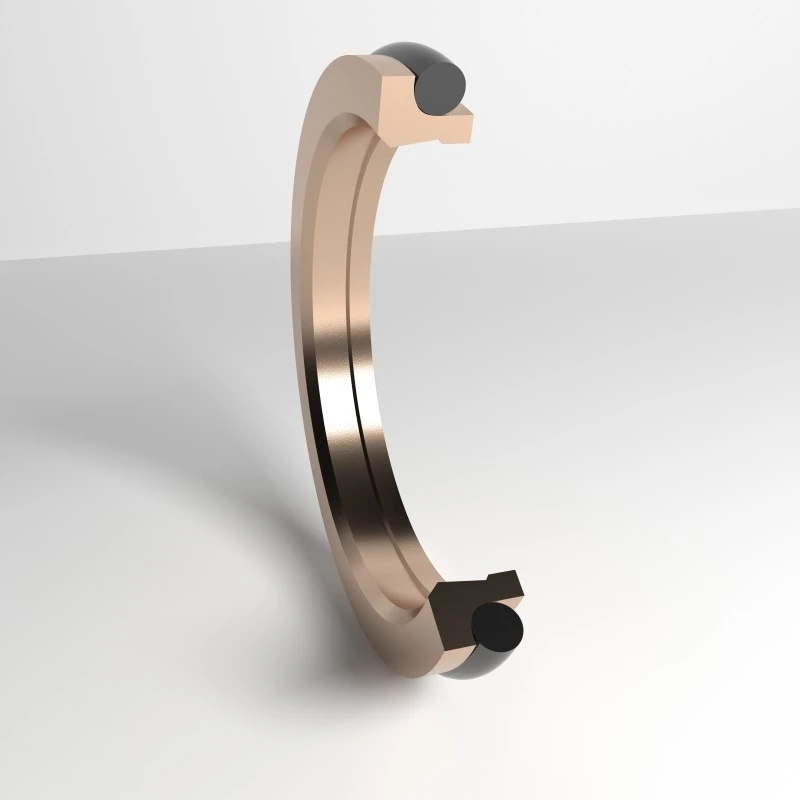

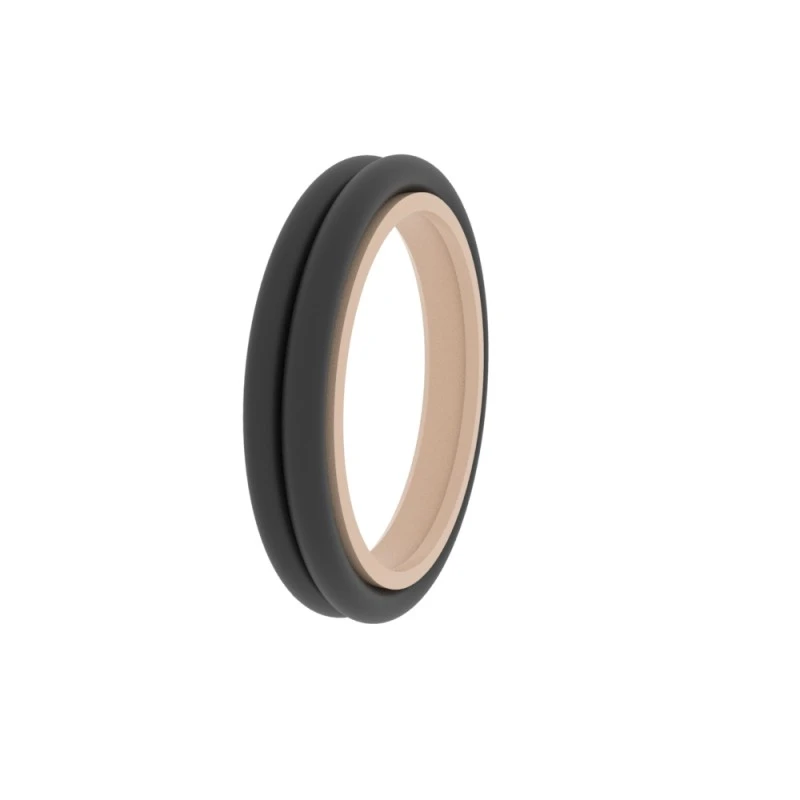

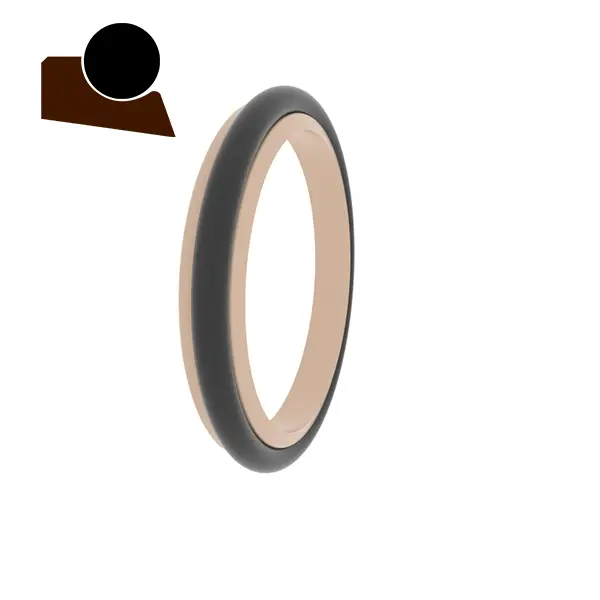

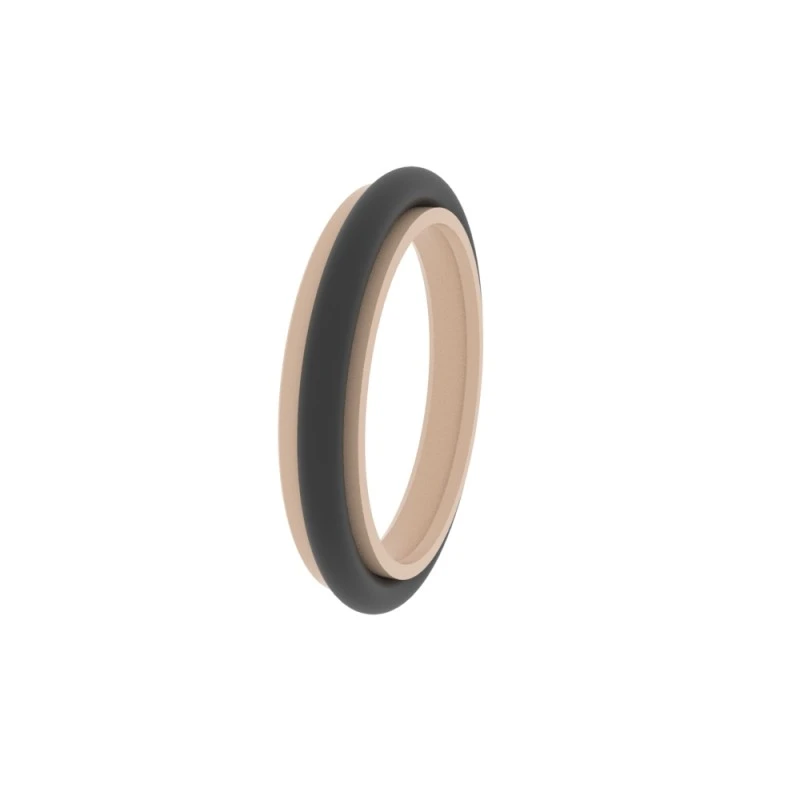

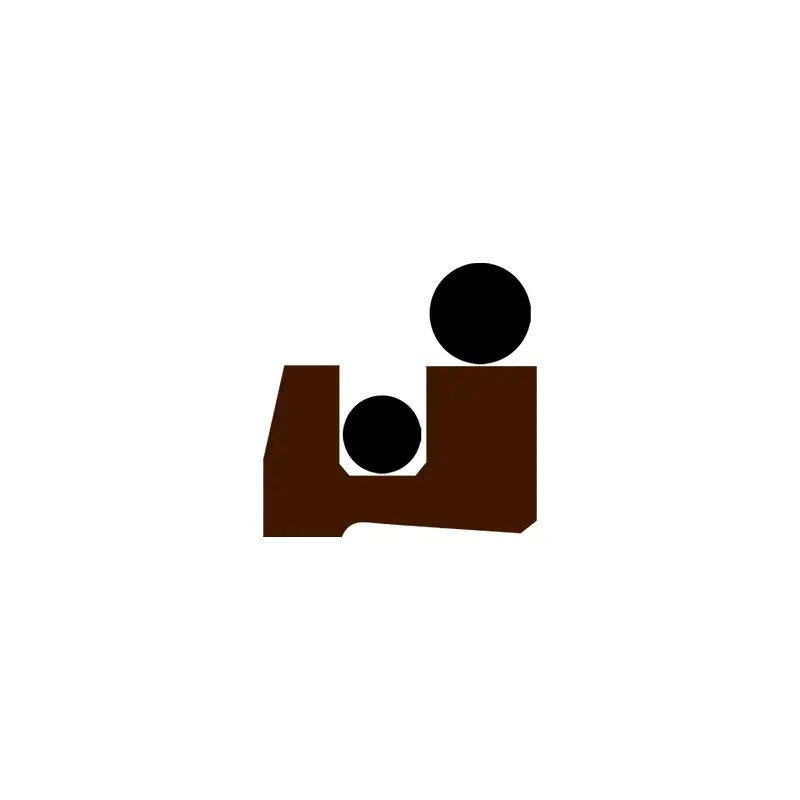

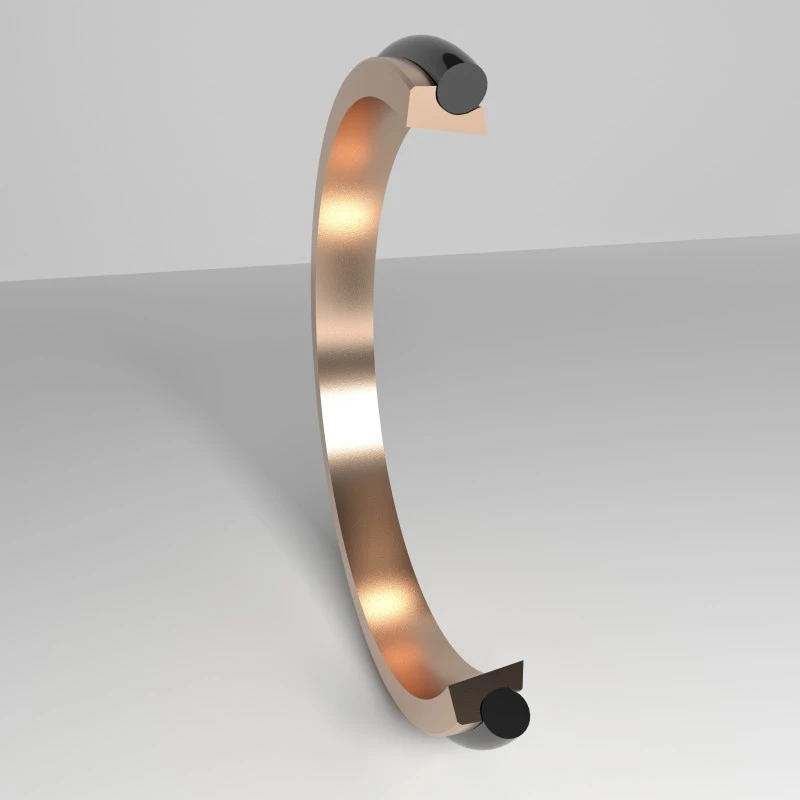

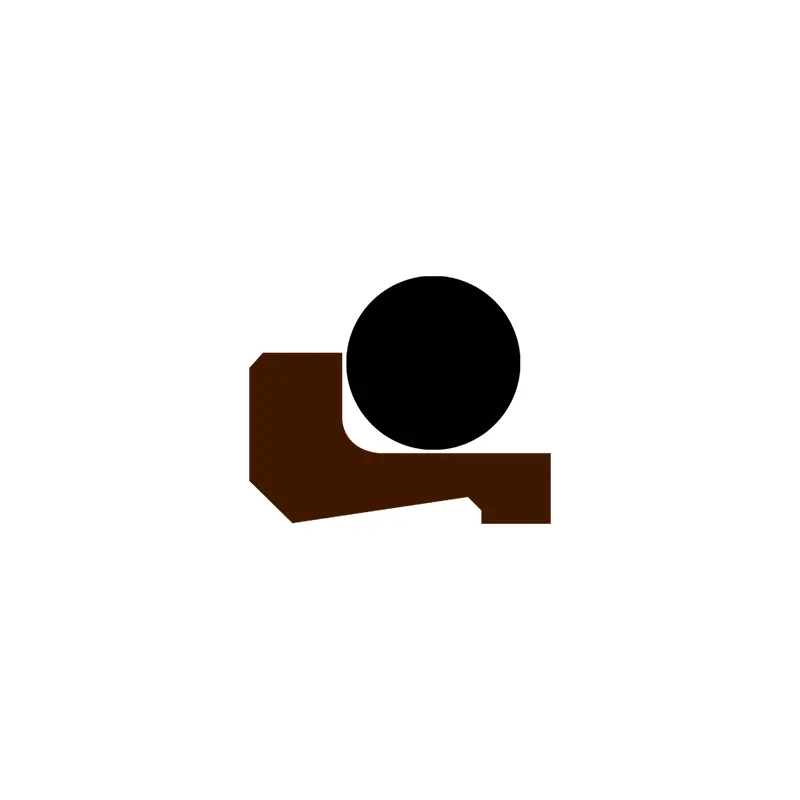

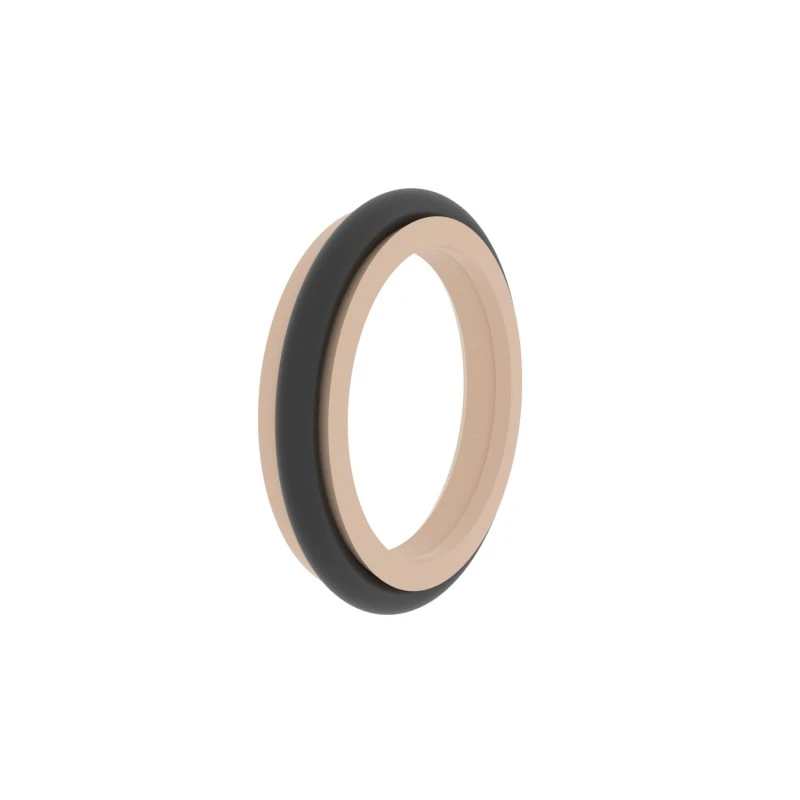

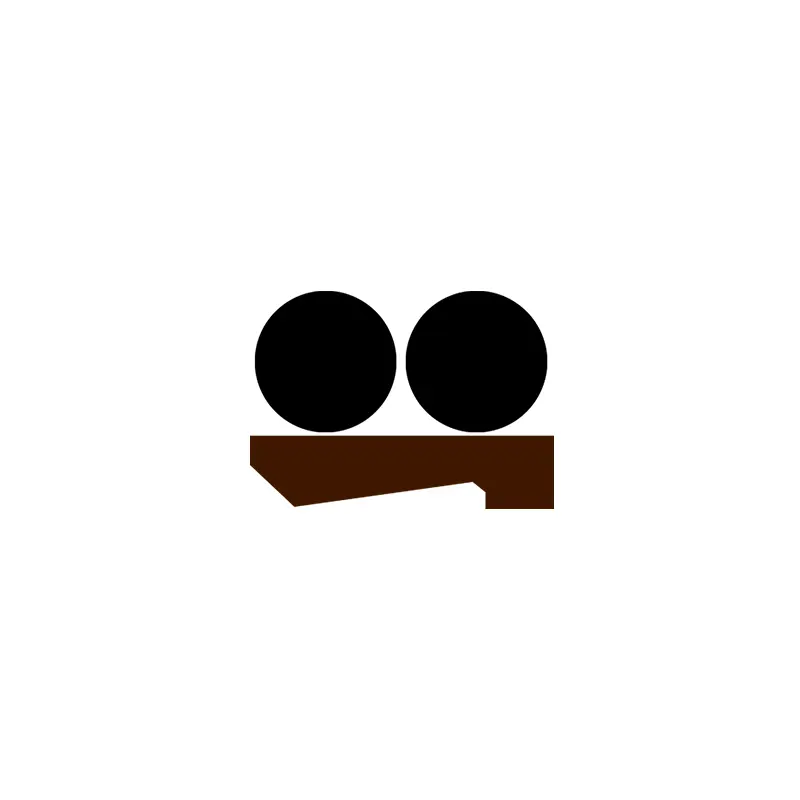

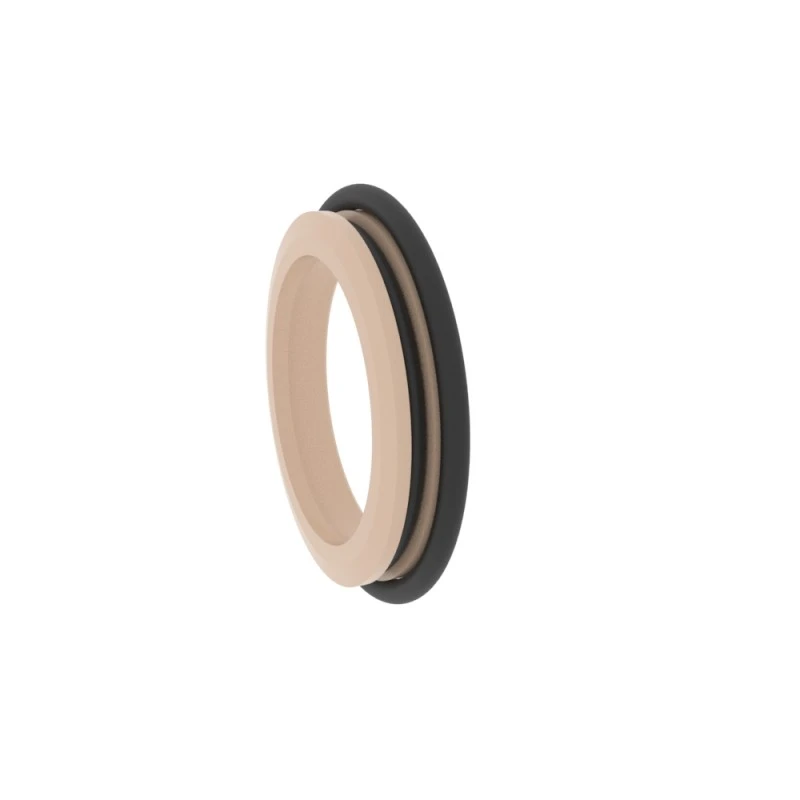

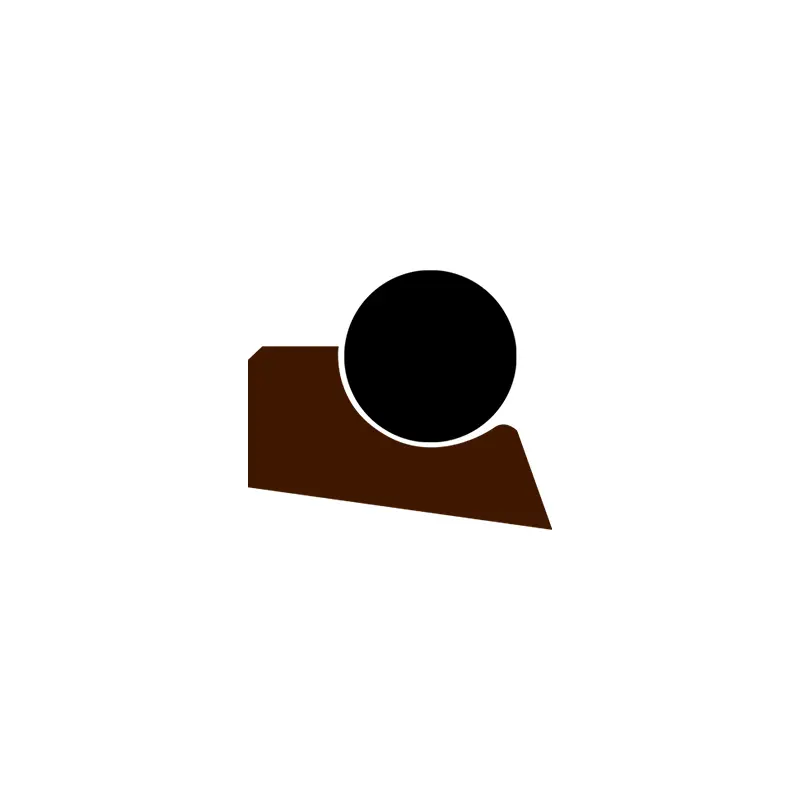

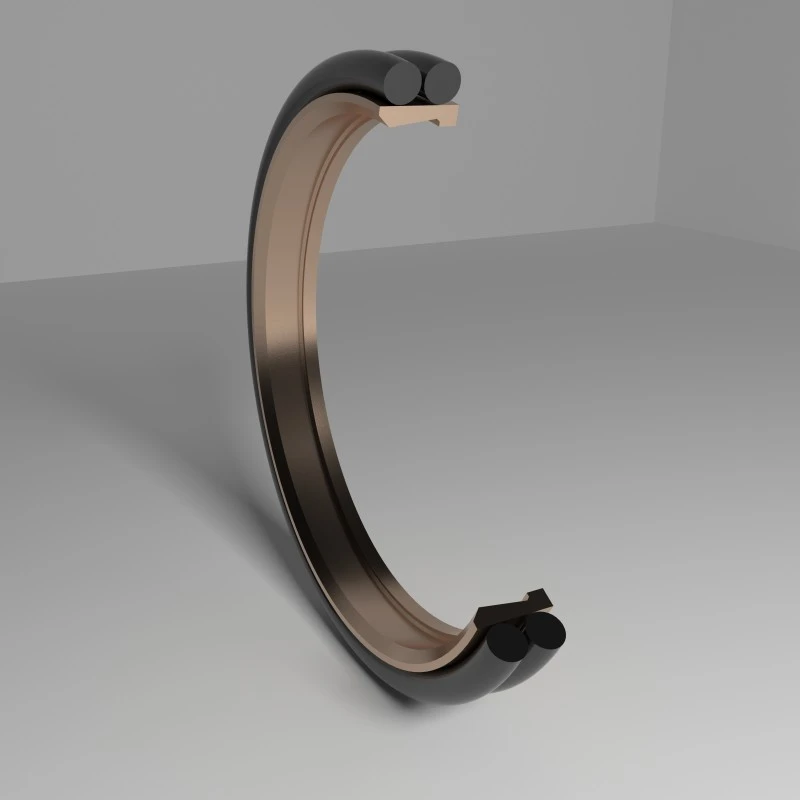

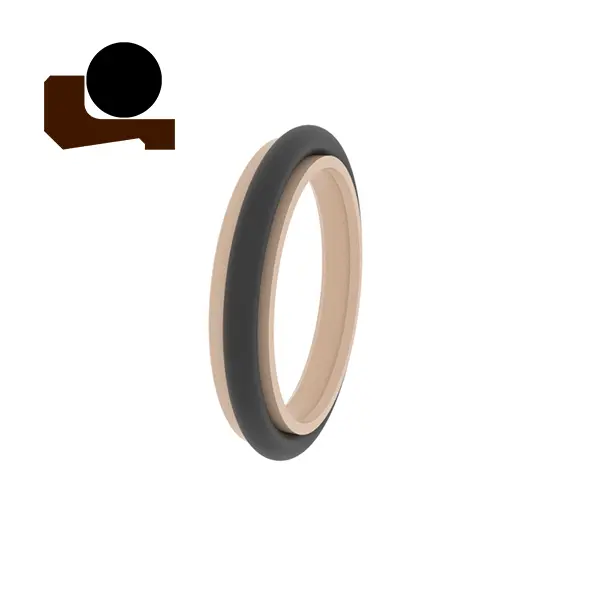

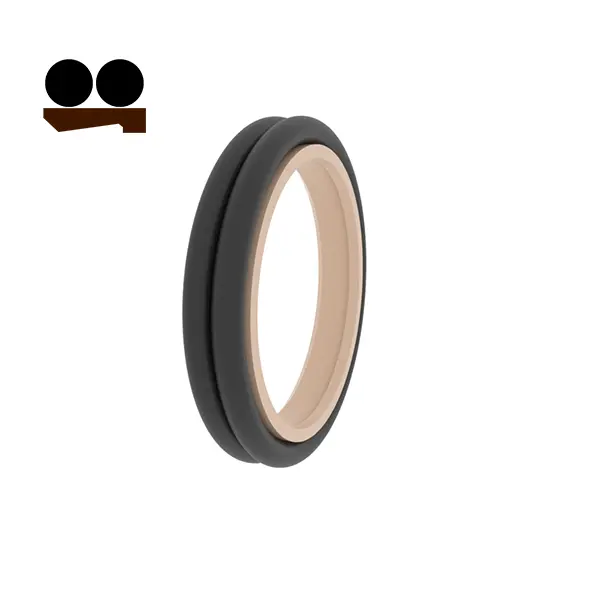

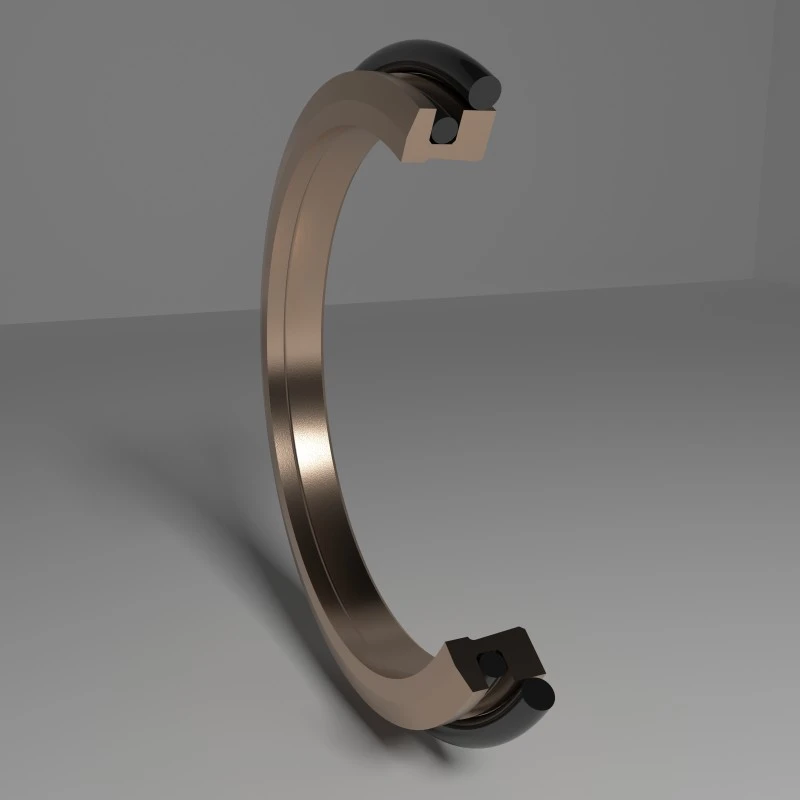

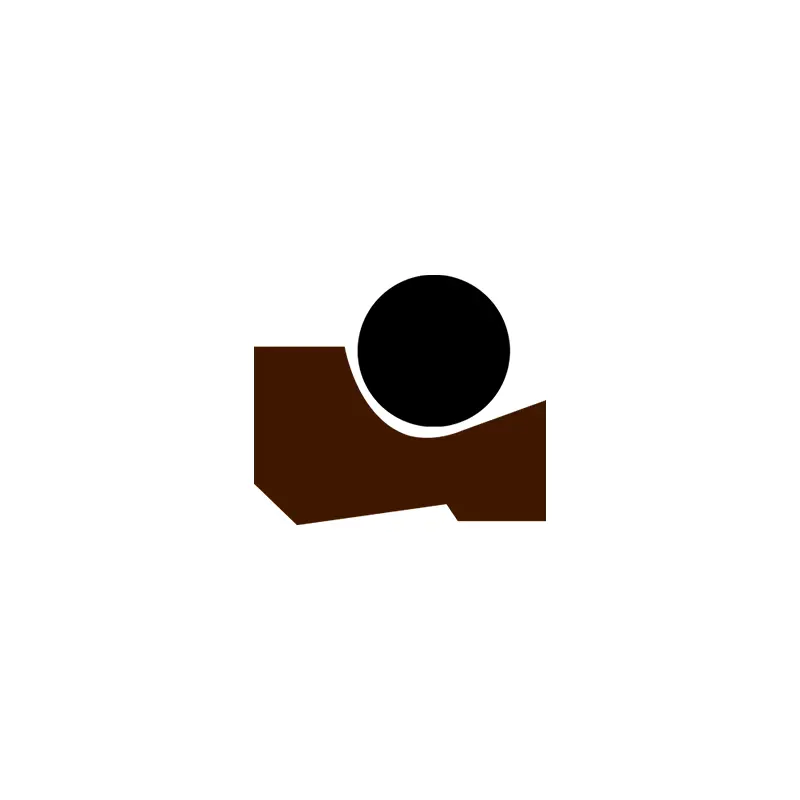

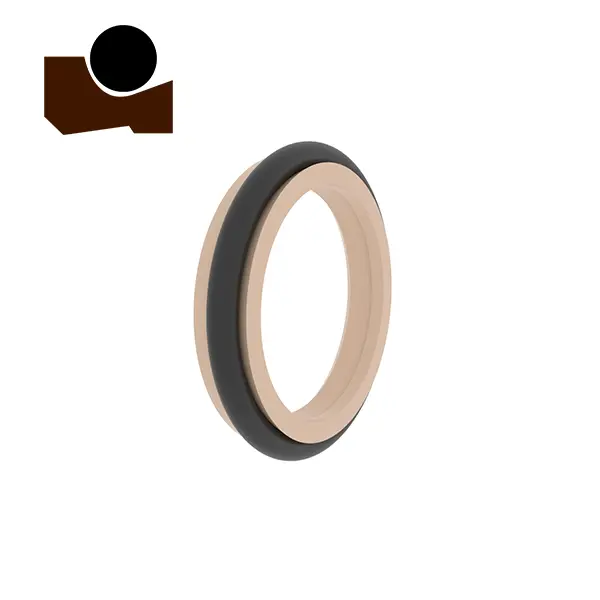

Rca115
Ordinem magnitudine
Φd ...... exterius diameter
Φd1 ...... exterius diameter
Φd ...... interiorem diameter
L ...... sulcus width
| Superficiem metam | R tmax (μm) | Ra (μm) |
| Slstring superficiem matching Flexilis / Polyurethane signacula Signa Ptfe Sigillis Sigilla | ≤2.5 ≤2 | ≤0.1-0.5 ≤0.05-0.3 |
| Sulcus imo Sulcus | ≤6.3 ≤15 | ≤1.6 ≤3 |
| TP Profile Support Longitudo Ratio | L% -95% |
|
| Tolerantia | |
| Φd1 H11 | L <10mm +0.2 |
| Φd H11 | L> 10mm +0.3 |
Ordinatione exemplum
Model: Rca115
Tempus Size / Summa Pulvis Sigillum altitudo: 100x108.8x6
Material: Ptfe3 + NBR
Sigillum Type: RCA115, RCA118
Main Application: Chemical Industry, cibum industria et servo valvulae
Commoda: humilis frictio coefficient, non reptile, parva installation spatium, diu lapsum, repugnans vita, et optimum temperatio et positioning capabilities in opere.
Material: Tetrafluoroethylene, Nitrile Flexor Fluor Flexorine
| Sigillum sulcus exempla | Et haec sint vexillum sulcus dimensiones (pulveris sigillis aliqua magnitudine in magnitudine rhoncus potest produci) | |||||||
 |
Rca115
|
Φd | Φd | L | D1 | a | O-anulus | |
| 6-11.9 |
4.8 φd + | 3.7 | D + 1.5 | 2 | 1.78 | |||
| 12-64.9 |
6.8 φd + | 5.0 | D + 1.5 | 2 | 2.62 | |||
|
Rca116
|
65-250.9 | 8.8 φd + | 6.0 | D + 1.5 | 3 | 3.53 | ||
| 251-420.9 | Φd + 12.2 | 8.4 | D + II | 3 | 5.33 | |||
| 421-650.9 | 16.0 φd + | 11.0 | D + II | 4 | 7.00 | |||
| ≥150 | 20.0 φd + | 12.0 | D + 2.5 | 5 | 8.40 | |||
