Sigilla

Hydrau quiddam signacula sunt genus hydrau signantes productum developed per Ruichen signacula. Nos committitur ad investigationem et progressionem sigilla et signantes materiae et providere amet solutions dum ensuring copia et productionem. Products sunt available in varietate exempla, et vos can eligere secundum opus tuum.

Mitte Inquisitionem

depictio producti

In hydrau systems, hydrau quiddam signacula ludere an maximus munus. Ruichen signacula habet developed a varietate hydrau quiddam sigillis pro diversis necessitatibus et operantes conditionibus.

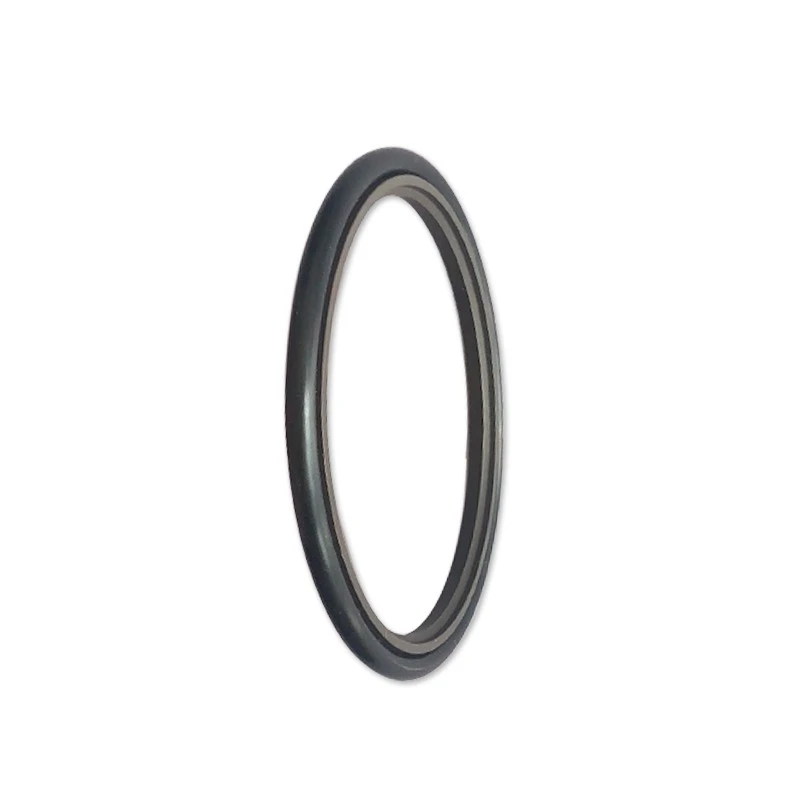

HBY et HBTS Buffer Sigilla sunt in Piston virgas in sigillis ad hauriendum impulsum et fluctuans pressura in altum onus, segregatio summus temperatus fluida et amplio ratio. Sunt in motrices scutras, rota oneratus, bulldozers, salsissimus vir vivens granes, rota granes, TUBER trucks, etc.

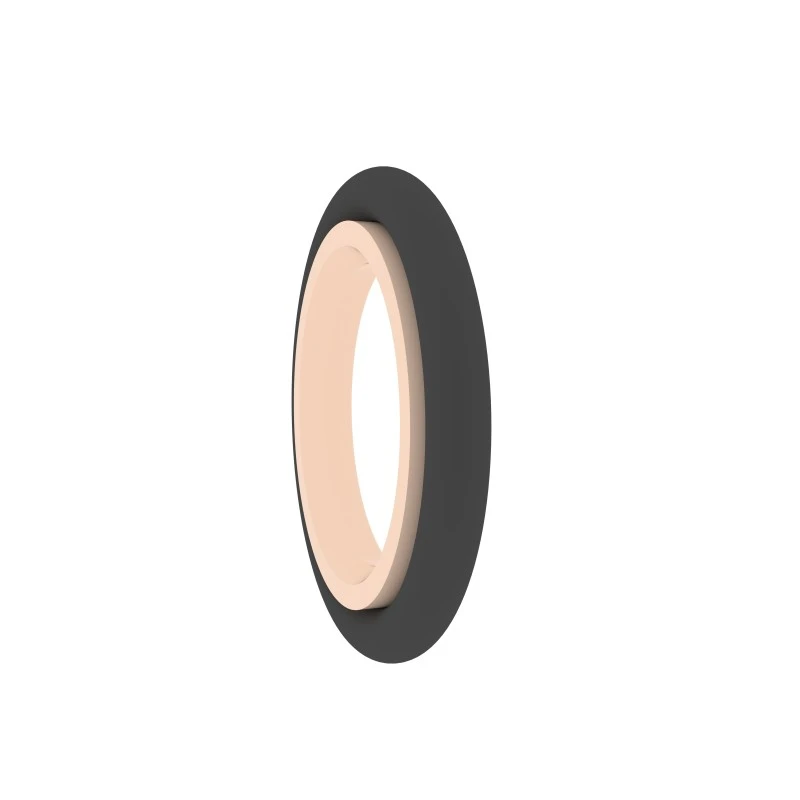

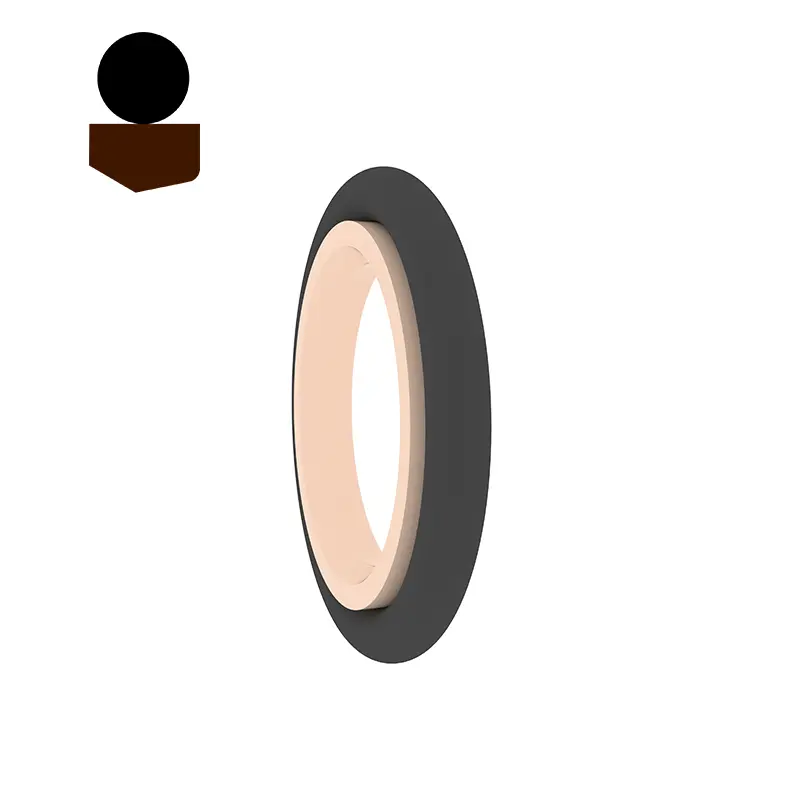

HBTS Buffer Sigillis sunt in signantes systems ut ipsum machinery.

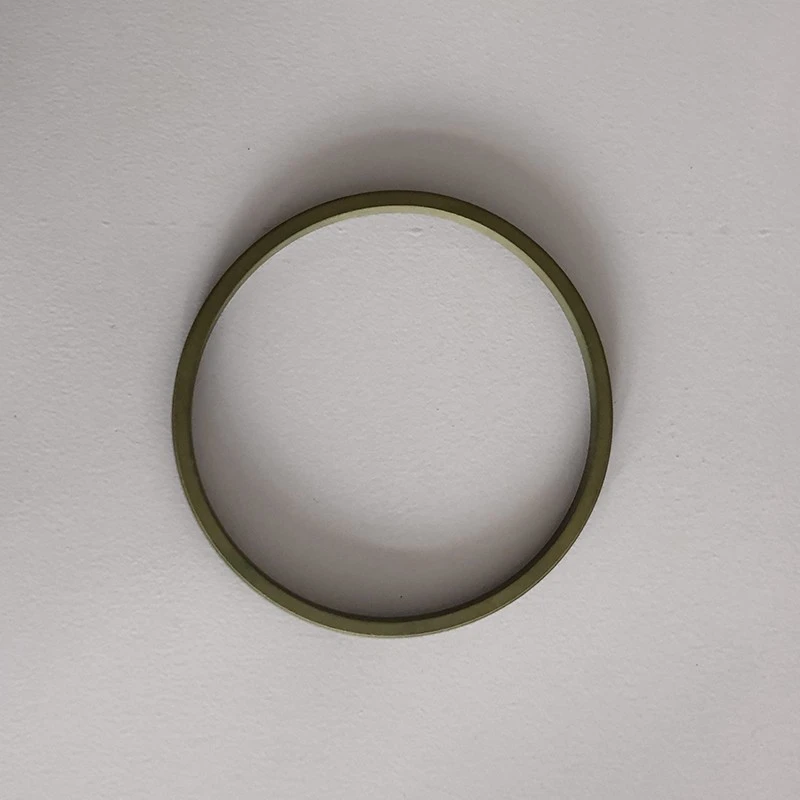

Kzt habet munus immersionem immersionem debitum ad polytetrafluoroethylene materia. Cum usus est in aliam cum Piston signaculis et dux annulos, quod prohibet impudicitiis et lutum in oleum cylindrici a causa abnormes damnum ad signationem ratio, cursus reliability et diu vitae signationis ratio.

Product Features et Applications:

Material Electio:

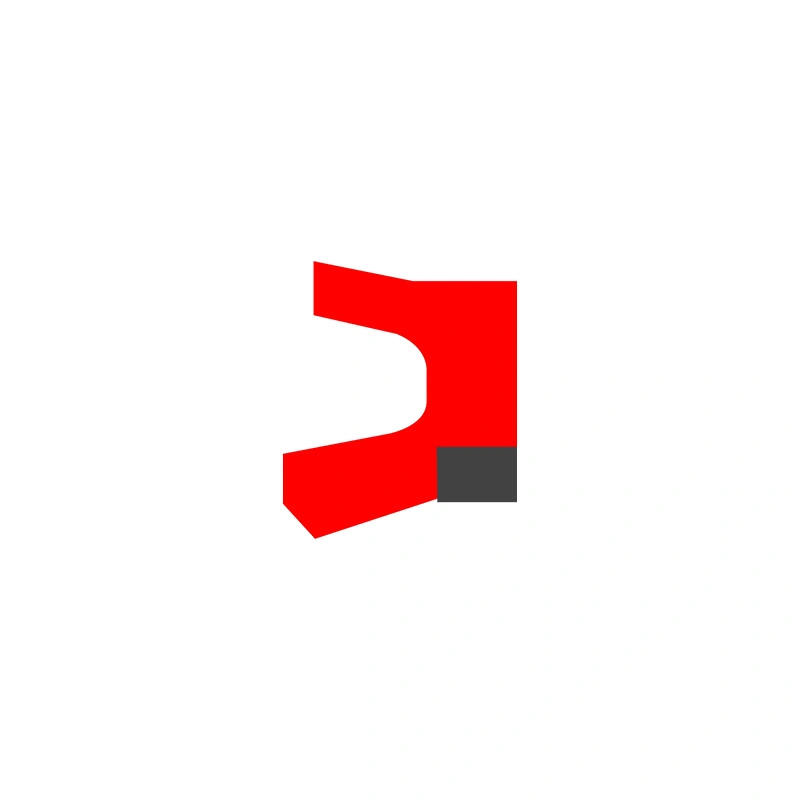

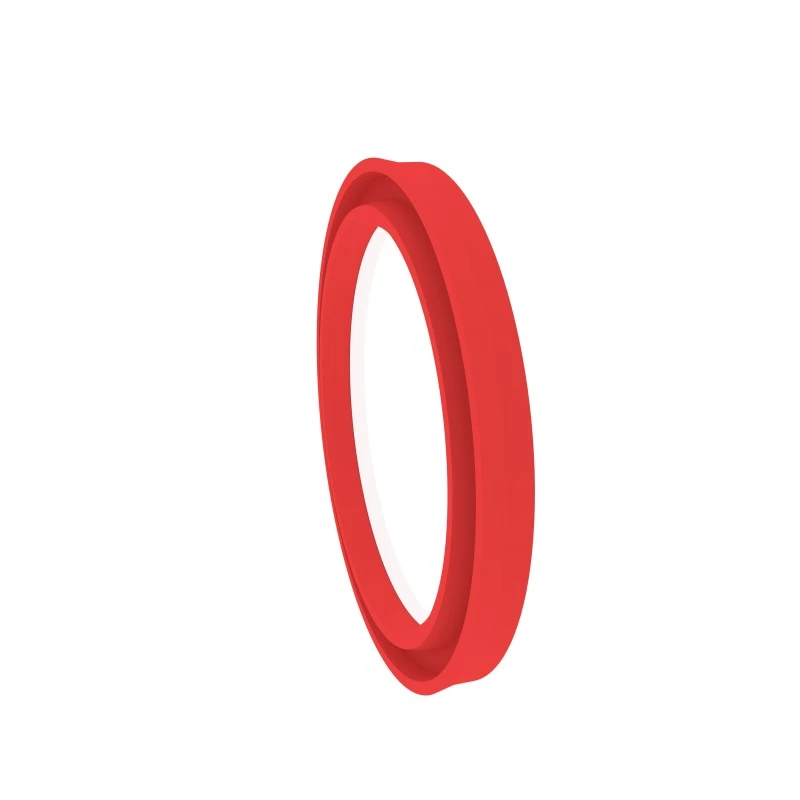

Hby

Signatio Ring: Polyurethane (Pu) Ringing Ring: Pom / Pom

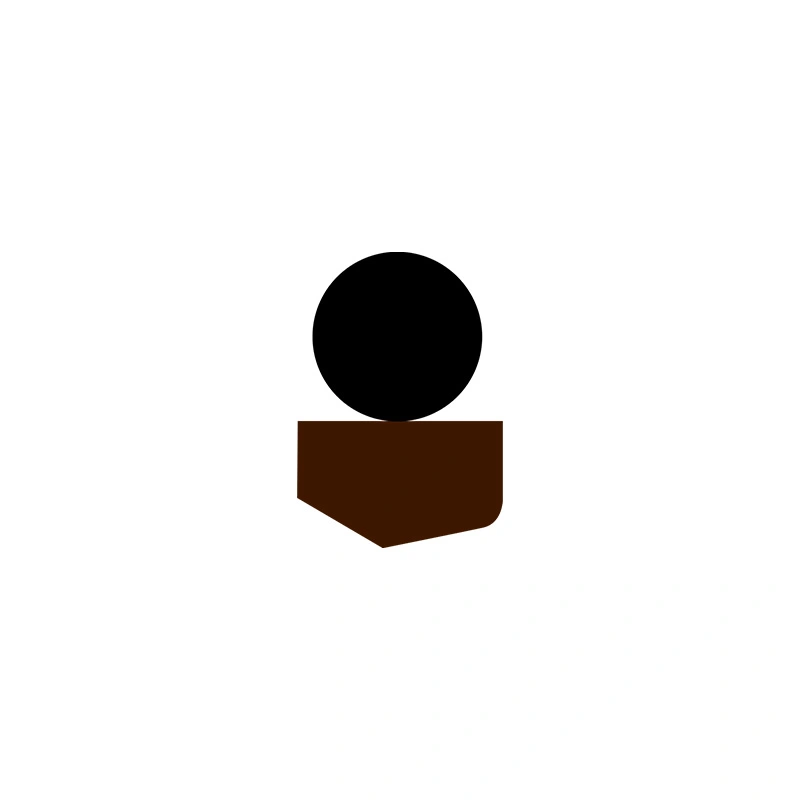

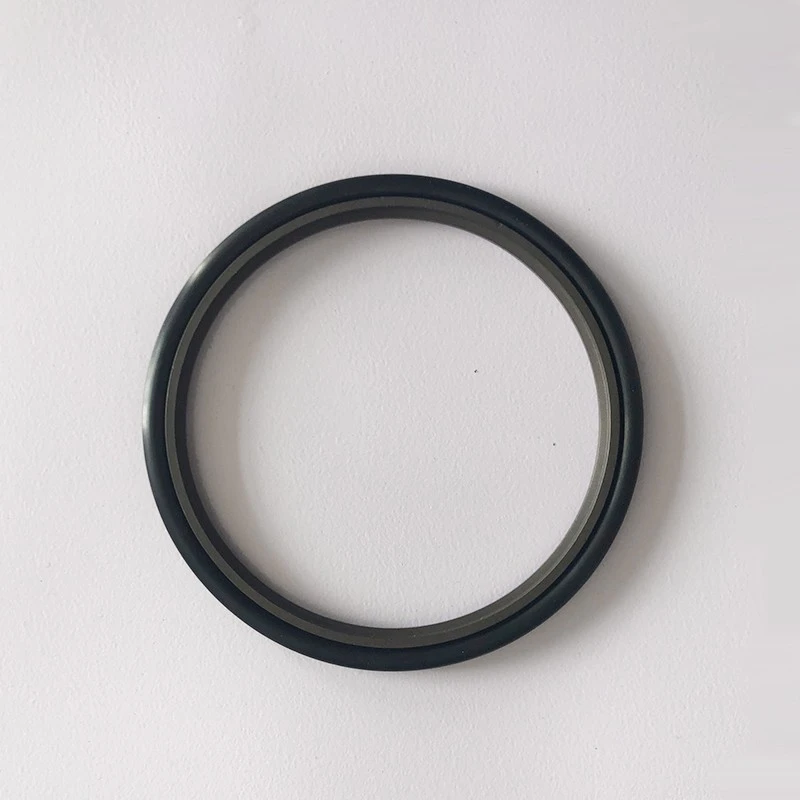

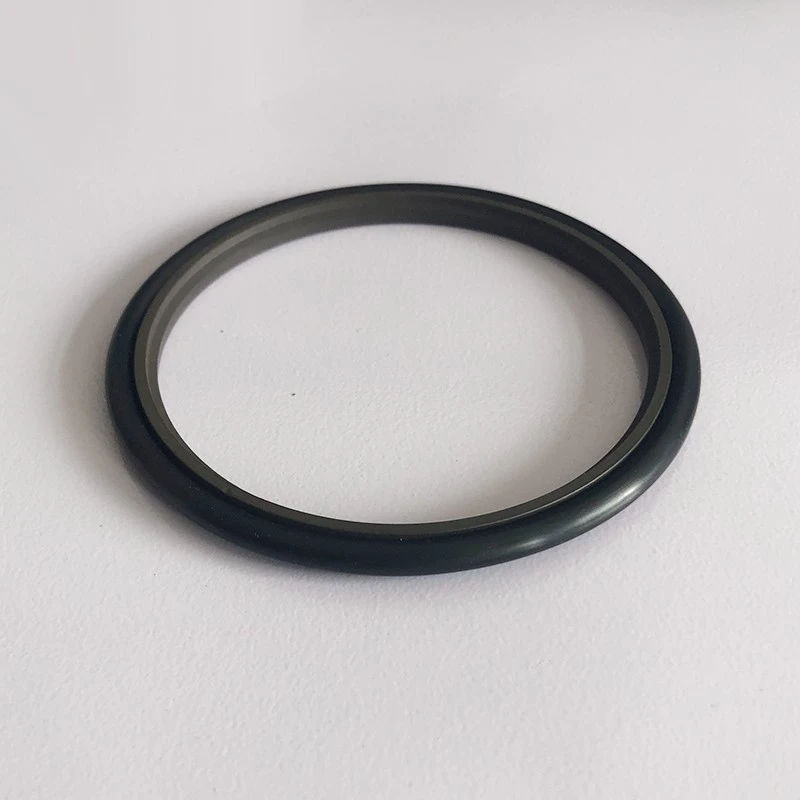

HBTS

Buffer Ring: Ptfe2, Ptfe3, etc.

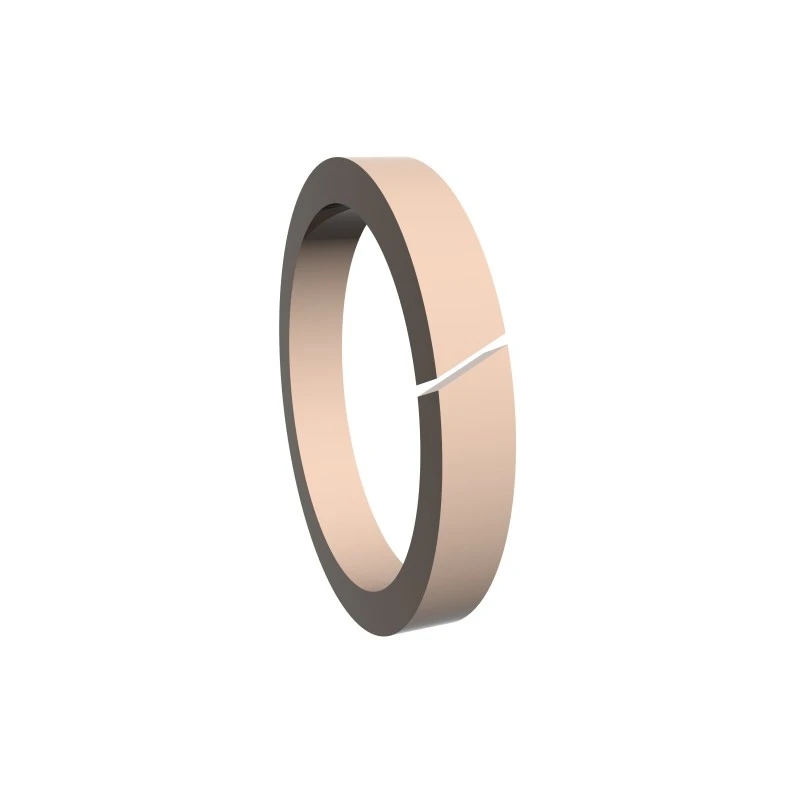

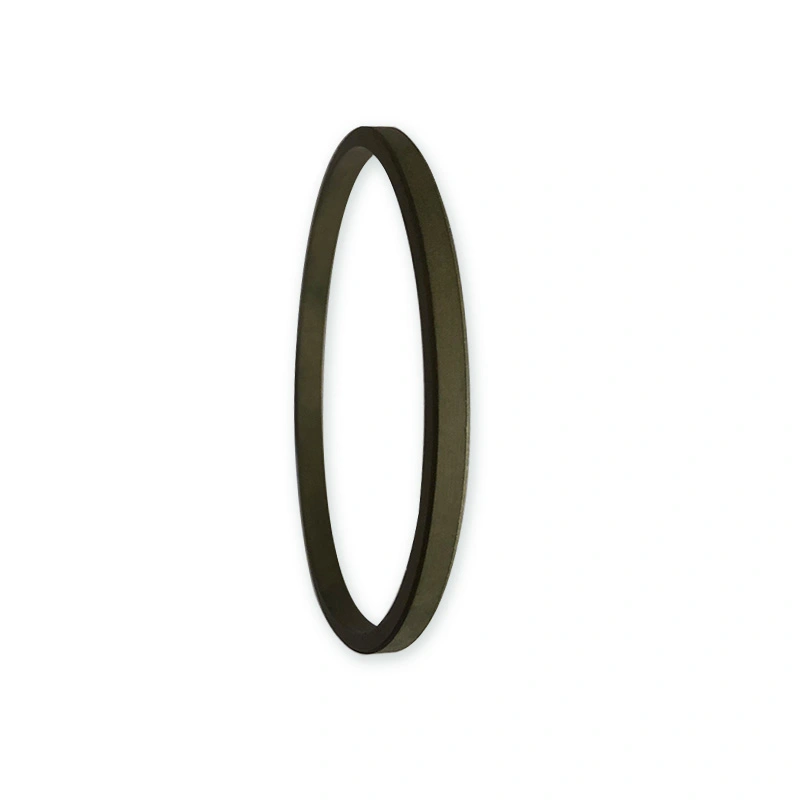

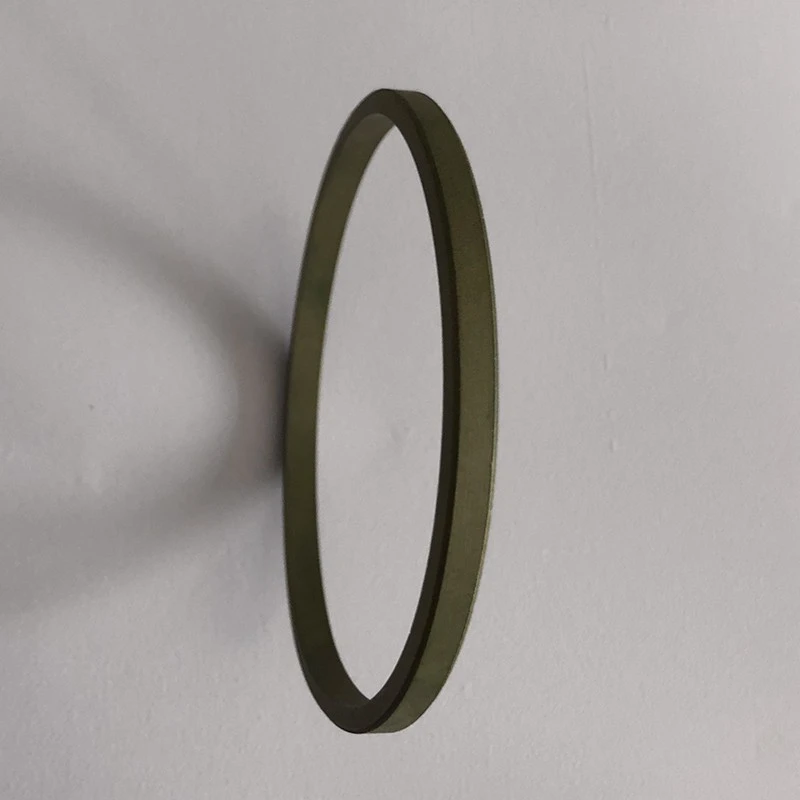

Kzt

Latin materia: ptfe3, alia libitum materiae Ptfe2, ptfe4 (videatur Material Description)

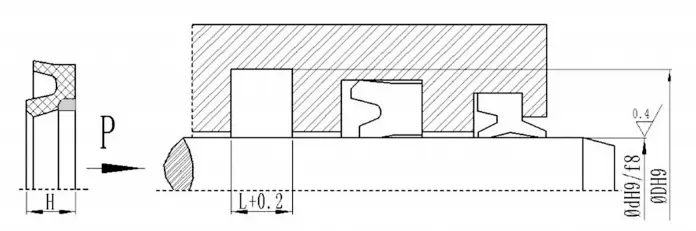

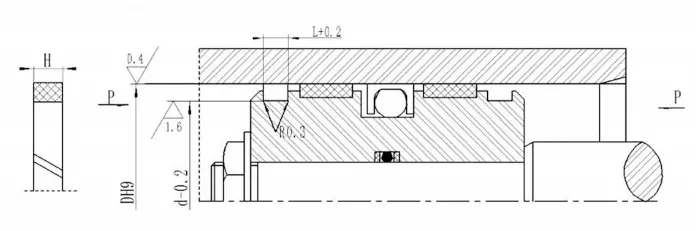

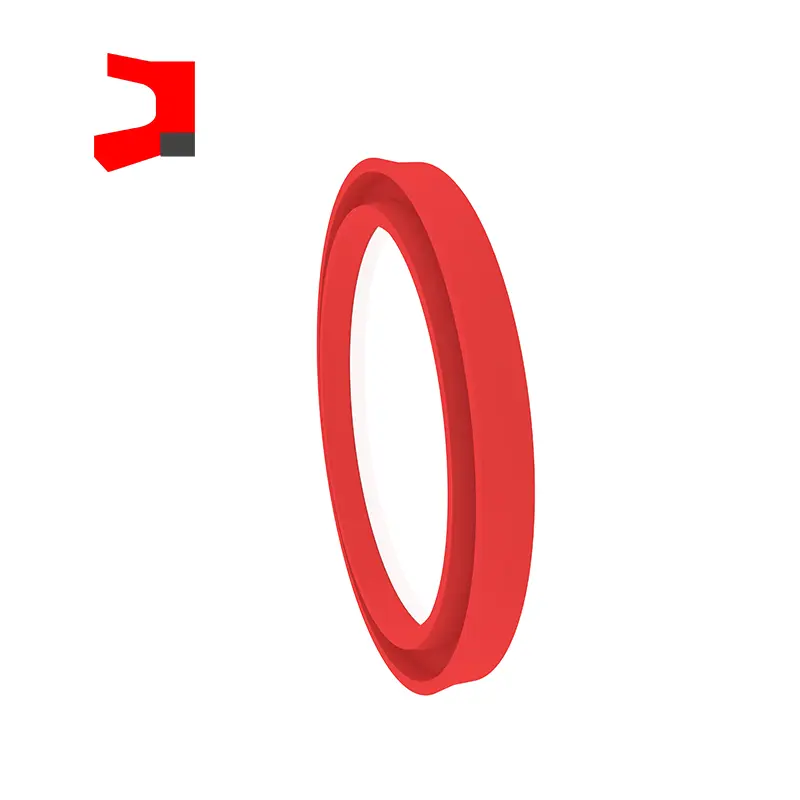

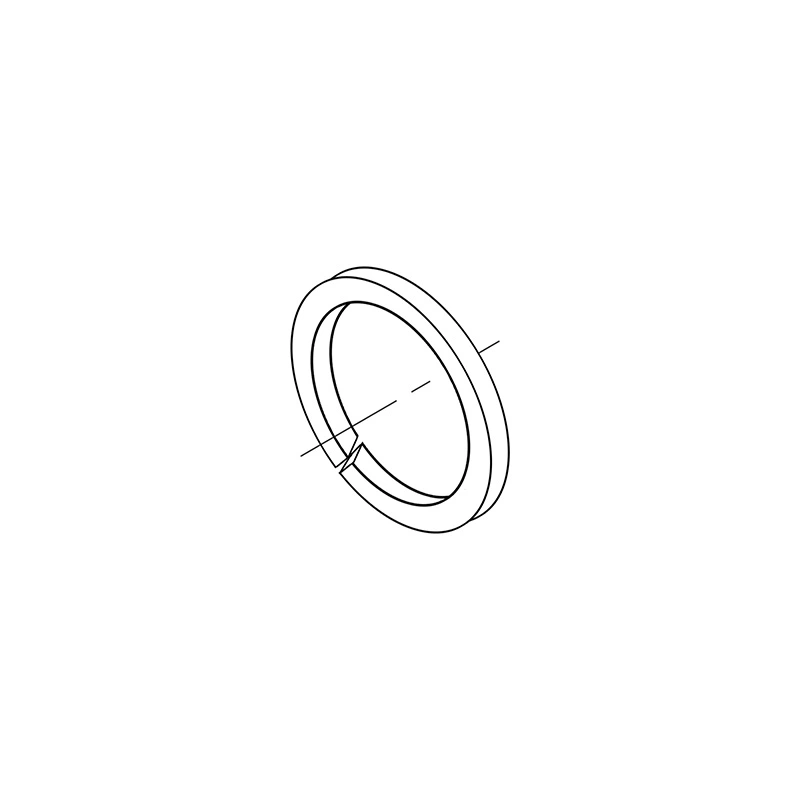

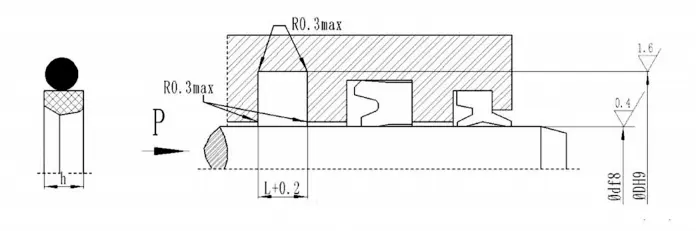

Structural Diagram:

Hby

HBTS

Kzt

Specifications et dimensiones:

Hby

d	D	H	L	d	D	H	L	d	D	H	L	d	D	H	L
40	55.5	6	6.3	70	85.5	6	6.3	105	120.5	6	6.3	150	165.5	6	6.3
45	60.5	6	6.3	75	90.5	6	6.3	110	125.5	6	6.3	155	170.5	6	6.3
50	65.5	6	6.3	80	95.5	6	6.3	115	130.5	6	6.3	160	175.5	6	6.3
55	70.5	6	6.3	85	100.5	6	6.3	120	135.5	6	6.3	170	185.5	6	6.3
60	75.5	6	6.3	90	105.5	6	6.3	125	140.5	6	6.3	180	195.5	6	6.3
63	78.5	6	6.3	95	110.5	6	6.3	130	145.5	6	6.3
65	80.5	6	6.3	100	115.5	6	6.3	140	155.5	6	6.3
Nota alias cubits esse amet petentibus. Machined signacula sunt etiam available.

HBTS

Nominis magnitudine sigillis			L
d	D	h	L
40	55.5	5.9	6.3
45	60.5	5.9	6.3
50	65.5	5.9	6.3
55	70.5	5.9	6.3
60	75.5	5.9	6.3
65	80.5	5.9	6.3
70	85.5	5.9	6.3
75	90.5	5.9	6.3
80	95.5	5.9	6.3
85	100.5	5.9	6.3
90	105.5	5.9	6.3
100	115.5	5.9	6.3
110	125.5	5.9	6.3
120	135.5	5.9	6.3
130	145.5	5.9	6.3
140	155.5	5.9	6.3
Nota alias cubits esse amet petentibus. Machined signacula sunt etiam available.

Kzt

D	d	H	L	D	d	H	L	D	d	H	L	D	d	H	L
20	14	5	5.2	63	55	6	6.2	120	112	6	6.2	230	222	8	8.2
25	19	5	5.2	65	57	6	6.2	125	117	6	6.2	240	232	8	8.2
30	24	5	5.2	70	62	6	6.2	130	122	6	6.2	250	242	8	8.2
31.5	25.5	5	5.2	71	63	6	6.2	135	127	6	6.2	260	252	8	8.2
32	26	5	5.2	75	67	6	6.2	140	132	6	6.2	270	262	8	8.2
35	29	5	5.2	80	72	6	6.2	150	142	6	6.2	280	272	8	8.2
35.5	29.5	5	5.2	85	77	6	6.2	160	152	6	6.2	290	282	8	8.2
40	34	5	5.2	90	82	6	6.2	170	162	8	8.2	300	392	8	8.2
45	39	5	5.2	95	87	6	6.2	180	172	8	8.2	310	302	8	8.2
50	44	5	5.2	100	92	6	6.2	190	182	8	8.2	320	312	8	8.2
53	47	5	5.2	105	97	6	6.2	200	192	8	8.2	340	332	8	8.2
55	49	5	5.2	110	102	6	6.2	210	202	8	8.2	350	342	8	8.2
56	50	5	5.2	112	104	6	6.2	220	212	8	8.2
60	54	5	5.2	115	107	6	6.2	224	216	8	8.2
Nota: CAESUS products sunt praesto, aliqua magnitudo of Latin crucem-section is available et diameter non limited.
