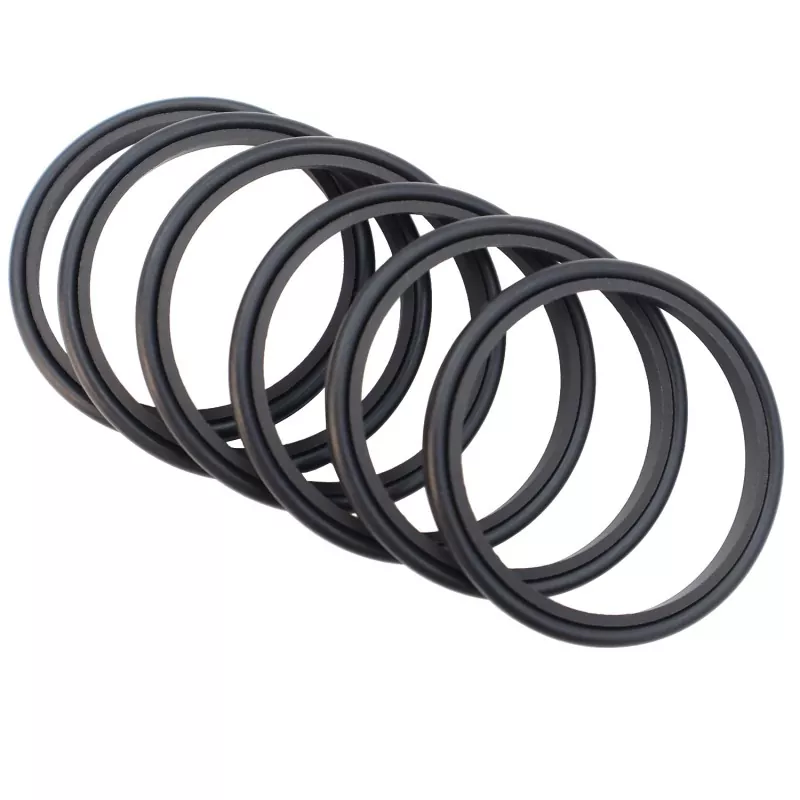

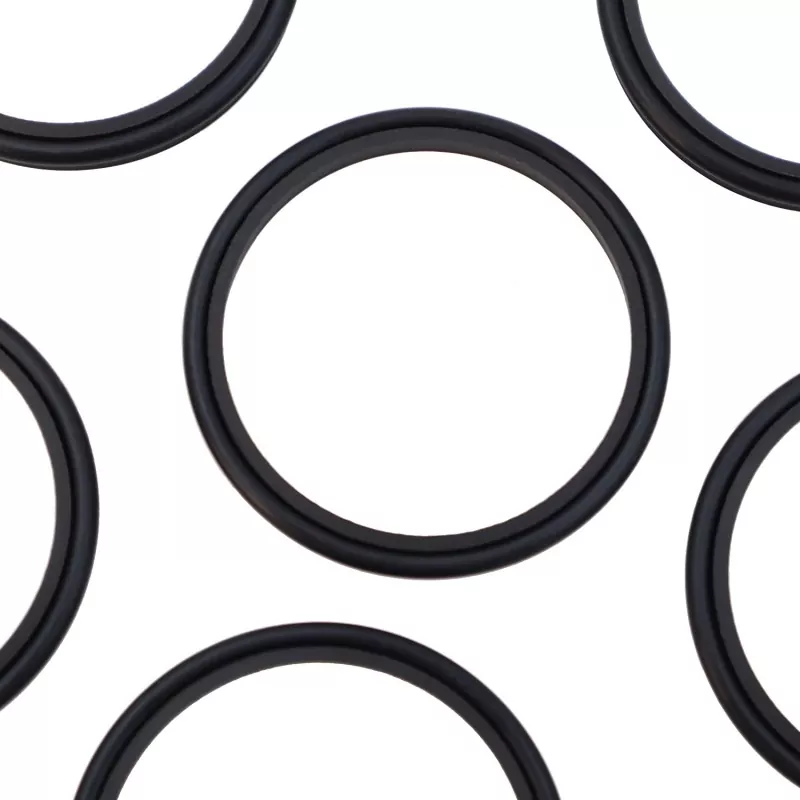

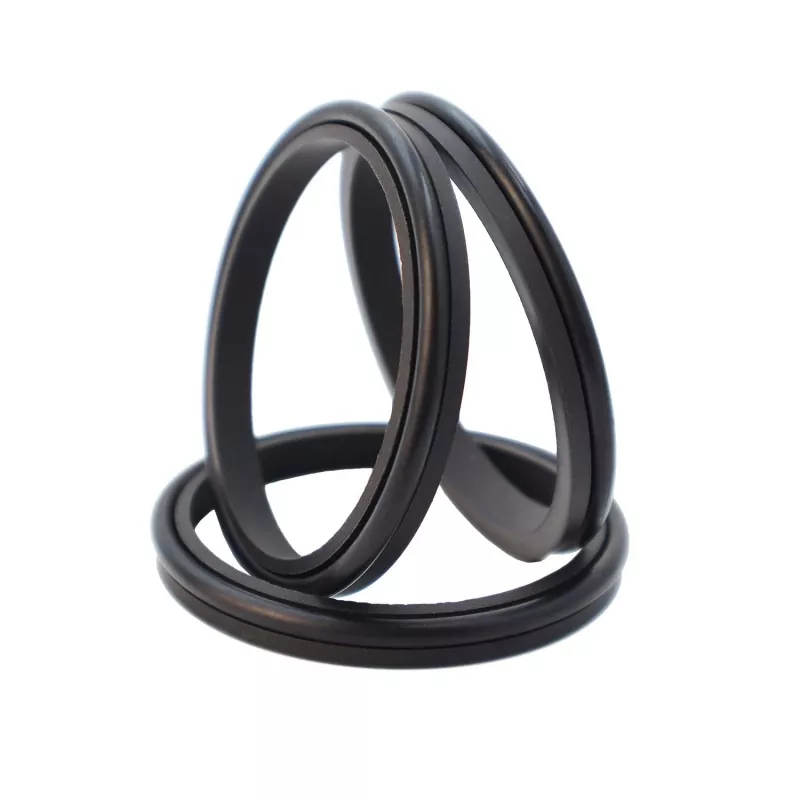

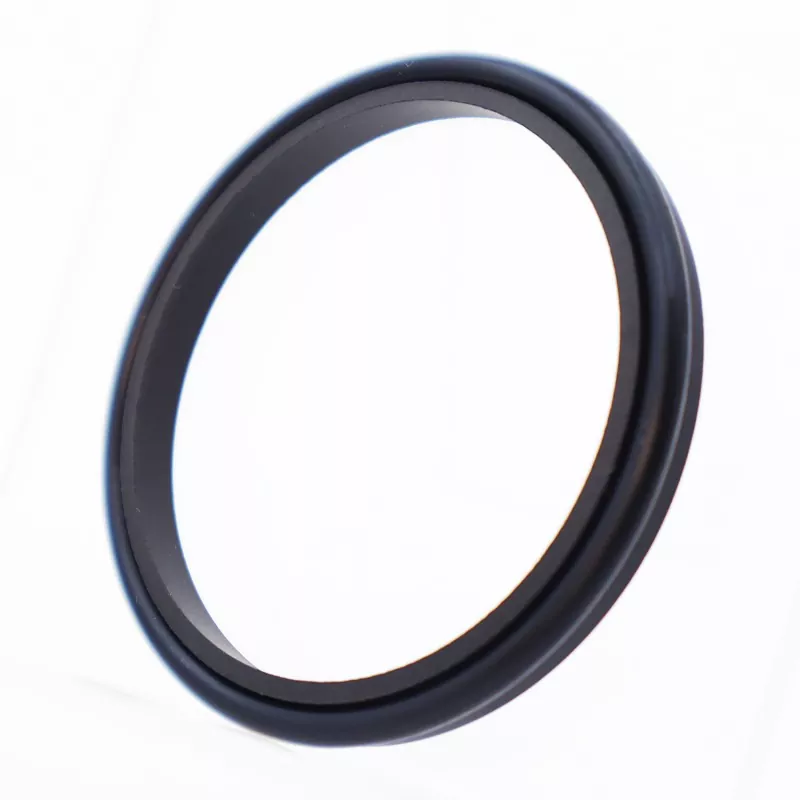

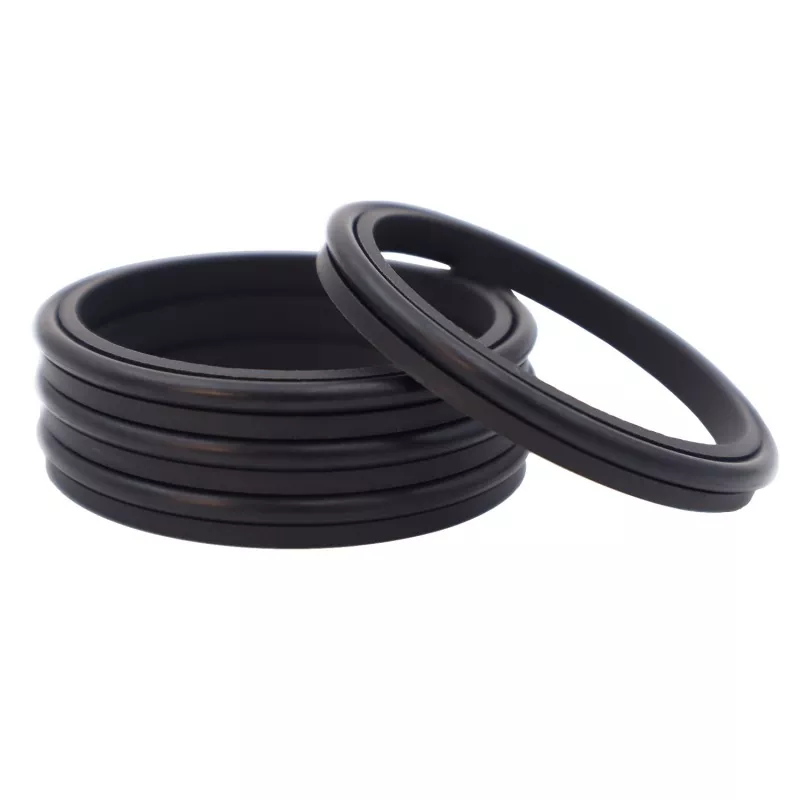

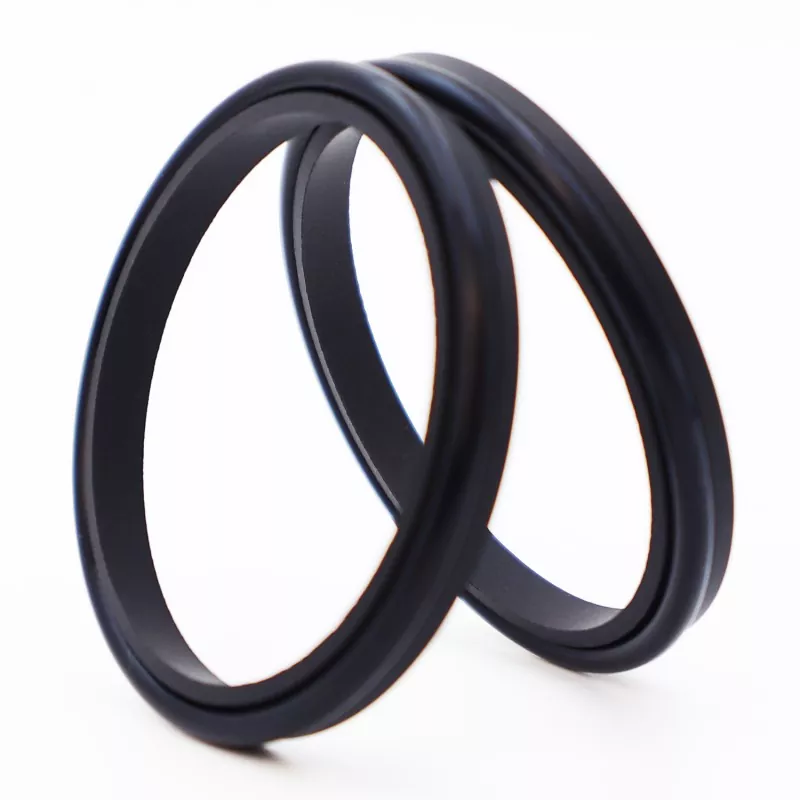

Unius labii Wiperi Sigillum deductum est sigillum unicum agens deletorium compositum ex anulo labii PTFE repleti unius delentis et globulus O-anulus; functiones facit ut pulvis eradat et contagione systematis praeveniat. Apta est applicationes motus reciproci, oscillantis vel helici.
|
Pressura (MPa) |
Temperatus (°C) |
Celeritas m/s* |
Media |
|
- |
-35 ad +100 (cum NBR O-annulo) |
6 |
Oleum hydraulicum, emulsio, aqua, &c. |
|
-20 ad +200 (cum FKM O-anulum) |
Order Model: RCF03-80-PTFE3-R01
RCF03 - Model | 80 – Shaft Diameter | PTFE3 - General-proposito Modified PTFE | R01 - Materia Code pro Flexilis Components
Nitrile Rubber (NBR) – R01 | Fluororubber (FKM) - R02
Producta suppleri possunt in magnitudine qualibet intra modulum determinatum.
|

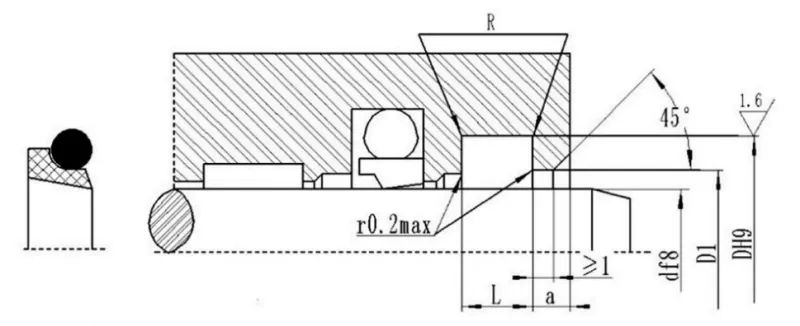

Spiculum diameter range d f8 |
Sulcus diameter D H9 |
Sulcus latitudo L+0.2 |
Clearance foramen diametri D1 H11 |
Patet foramen latitudine a ≥ |
Radii anguli R≤ |
O inauris Diameter-sectionem crucis do |
|
4~11 |
d+4.8 |
3.7 |
d+1.5 |
2 |
0.4 |
1.80 |
|
12~64 |
d+6.8 |
5.0 |
d+1.5 |
2 |
0.7 |
2.65 |
|
65~250 |
d+8.8 |
6.0 |
d+1.5 |
3 |
1.0 |
3.55 |
|
251~ 420 |
d+12.2 |
8.4 |
d+2.0 |
4 |
1.5 |
5.30 |
|
421~650 |
d+16.0 |
11.0 |
d+2.0 |
4 |
1.5 |
7.00 |
|
651~150 |
d+20.0 |
14.0 |
d+2.5 |
5 |
2.0 |
8.60 |
