1. Praeclara chemica resistentia
2. Lata operating temperatus range
3. Apta ad low-lubricationem et oleum liberum lubricationis
4. Minimum friction ad minimum virtutis consummatio
5. Idoneum altum celeritates lineares
6. Nullus effectus lapsus baculus, humilis resistentia incipiens post longum tempus downtime
7. Apta spicula firmata rotating (cum congruis lectio sigillis labii PTFE)
8. Idoneum pro summus pressura applications
Applicationes typicas comprehendunt: compressores gyratorii, compressores cochleae, nuntii/gearboxes, cornicines, machinae, instrumenta machinae, soleatus, motores hydraulicos, machinamenta, etc.
Duritiam necessaria ad admissuram superficierum
Duritiam commendatur: HRC ≥ 58. Duritia requiritur in multis causis; nam pressione demissa et demissa velocitate medicamenta, spicula rotanda molliora etiam apta sunt. Pro mollibus metallis, PTFE6 labii sigilla commendantur.
Qualitas requisita ad rationes maritendas Ra=0.2-0.63 um Rz=1-3um Rmax=1-4um
|
Crucem-sectional figura |
Model |
Pressura |
Temperature |
Celeritas |
Medium |
|
|
RCS-A |
0.5 |
-35~+200 |
40 |
Oleum, gas, aqua, etc. |
|
|
RCS-B |
2 |
-35~+200 |
20 |
Oleum, gas, aqua, etc. |
|
|
RCS-C |
1 |
-35~+200 |
20 |
Oleum, gas, aqua, etc. |
|
|
RCS-D |
2 |
-35~+200 |
20 |
Oleum, gas, aqua, etc. |
Liquor Dynamic Spiral Recirculation Sigillum: RCS-D typus utitur labium sigillum cum recirculatione spiralis exemplaris, meliori obsignatione effectus. Scapus rotabilis solum in unam partem gyrari permittitur.

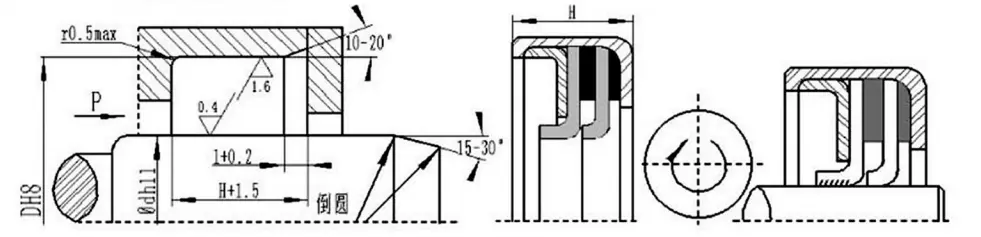

Installation locus opus
Exemplum iubes: RCS-A-65×85×10 Model - d×D×H
|
d*D*H* |
d*D*H* |
d*D*H* |
d*D*H* |
d*D*H* |
d*D*H* |
d*D*H* |
d*D*H* |
|
7*20*6 |
18*30*6 |
25*40*10 |
35*50*7 |
50*68*8 |
70*85*10 |
100*120*10 |
150*180*12 |
|
7*20*7 |
18*30*7 |
25*42*6 |
35*50*8 |
50*70*10 |
70*90*7 |
100*125*12 |
150*180*14 |
|
8*18*7 |
18*32*6 |
25*42*10 |
35* 52*6 |
50*72*7 |
70*90*10 |
100*125*13 |
160* 185*8.5 |
|
8*20*6 |
18*32*8 |
25*45*11 |
35*54*6 |
50*72*12 |
70*95*13 |
105*130*7.5 |
160* 185* 12 |
|
8*22*6 |
18*35*6 |
25*47*6 |
35*55*11 |
52*68*10 |
75*95*7 |
105*130*12 |
160* 190*15 |
|
8*22*7 |
18*35*8 |
26*40*6 |
38*50*6 |
52*70*10 |
75*95*10 |
105*135*14 |
160* 200*10 |
|
10*22*6 |
19*35*6 |
26*42*8 |
38* 52*8 |
52*75*12 |
75*100*11 |
110*135*12 |
170* 195* 12 |
|
10*22*7 |
19*35*8 |
27*47*11 |
38*58*11 |
55*70*7 |
75*100*13 |
110*140*14 |
170*200*12 |
|
10*25*7 |
20*30*7 |
28*40*6 |
40*52*7 |
55*72*7 |
80*95*10 |
110* 150*8 |
170*200*14 |
|
12*22*6 |
20*32*7 |
28*40*7 |
40* 52*8 |
55*72*8 |
80*100*7 |
115*145*14 |
170*200* 16 |
|
12*22*7 |
20*32*8 |
28*40*8 |
40*55*6 |
55*75*7 |
80*100*10 |
120* 140*7.5 |
180*205*12 |
|
12*24*6 |
20*35*6 |
28*40*9 |
40*55*7 |
55*75*10 |
80*105*7.5 |
120*140*10 |
180*210*8.5 |
|
12*25*8 |
20*35*8 |
28*45*8 |
40*55*8 |
55*78*12 |
80*105*13 |
120*145*12 |
190*215*12 |
|
12* 32*7 |
20*40*7 |
28*48*11 |
40*58*8 |
55*83*7 |
85* 105*7.5 |
120* 150*10 |
190*225*16 |
|
14*26*6 |
20*40*7 |
30*42*6 |
40*62*6 |
58*80*12 |
85* 105*10 |
120* 150*12 |
200*225*12 |
|
14*28*7 |
20*40*10 |
30*42*7 |
40*62*8 |
60*72*7 |
85* 110*8 |
120* 150*14 |
200*230*13 |
|
14*30*8 |
20*40*11 |
30*42*8 |
40*62*12 |
60*75*8 |
85* 110* 12 |
125* 150*12 |
240* 265*12 |
|
15*25*6 |
22* 32*6 |
30*45*8 |
42*62*7 |
60*75*10 |
85* 110*13 |
125*155*14 |
240* 270*8.5 |
|
15*30*7 |
22*35*6 |
30*50*11 |
42*65*12 |
60*80*7 |
85*120*8 |
130* 150*7.5 |
260* 280*10 |
|
15*30*7 |
22*35*8 |
30*52*7 |
45*58*7 |
60*80*10 |
90* 110*7.5 |
130* 155* 12 |
260* 285* 12 |
|
15*32*7 |
22*38*8 |
32* 44*8 |
45*62*10 |
60*82*12 |
90* 110*10 |
130*160*14 |
300*330*15 |
|
15*32*8 |
22*42*11 |
32*47*6 |
45*65*7 |
60*85*8 |
90* 110*12 |
135*160*12 |
300*340*20 |
|
15*35*6 |
24*40*6 |
32* 47*8 |
45*65*8 |
60*85*10 |
90*115*10 |
135*165*14 |
|
|
16*26*7 |
24*40*7 |
32*48*7 |
45*65*10 |
62*85*7 |
90*115*12 |
140*160*10 |
|
|
16*30*7 |
24*40*8 |
32*50*8 |
47*62*7 |
62*85*10 |
90*115*13 |
140*160*12 |
|
|
16*35*8 |
25*35*6 |
32* 52*6 |
48*65*10 |
62*85*12 |
90*120*10 |
140*165*12 |
|
|
16*40*10 |
25*37*6 |
32* 52*11 |
48*70*12 |
65*85*10 |
95*115*10 |
140* 170*14 |
|
|
17*30*6 |
25*38*8 |
34*54*11 |
50*65*7 |
65*90*7 |
95*120*12 |
140* 170*15 |
|
|
17*35*7 |
25*40*7 |
35*47*6 |
50*65*8 |
65*90*12 |
95*120*13 |
140*180*12 |
|
|
17*35*8 |
25*40*8 |
35*47*8 |
50*68*7 |
65*95*13 |
100*120*7.5 |
150* 180*8.5 |
|
Contactus nostra societas pete; exemplar products RC2057 cum maxima longitudine 1600mm praebet.
PTFE oleum Sigillum instruitur Libri
1. Tersus et praelinm oleum sigillum et omnes institutiones partes;
2. Ante institutionem sigillum oleum cum eadem diametro scapo in levem aptari debet ac scapum, ne nimis constringatur et deficiat institutionem, et ne in operatione initiali exardescat;
3. Ante institutionem, sigillum (ut Loctite 601 vel 641) applica ad circumferentiam exteriorem et finem faciei sigilli olei ne lacus in diametro exteriori;
4. Cum PTFE sigillum olei in stipite, labium oleum PTFE custodiendum est, ne detrimentum labii signandi a filis, clavis, etc.;
5. A duce manica adhibenda est sigillum oleum ad instituendum PTFE ut labrum a damno defendat. Gubernator manicam habet angulum 15-gradum cereum in fine ducens, et foraminis interior alterius extremitatis in hastili lapsus apta est. Diameter exterior manicae est scapus diametri + 1mm, superficie leni et marginibus rotundatis. Vide figuram 1 ad institutionem sigilli olei PTFE;
6. Dux manica materia suadetur ut materia plastica dura;

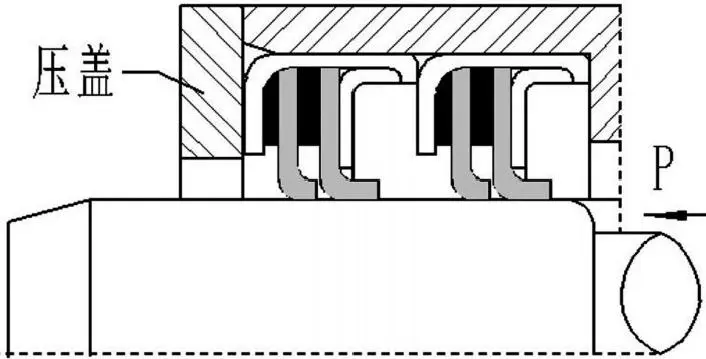

7. Sigillum oleum inauguratum, figimento figi debet et obsignari obsignatione exterioris circumferentiae et faciei fine. Vide figuram 2 ad figendum sigillum olei PTFE.

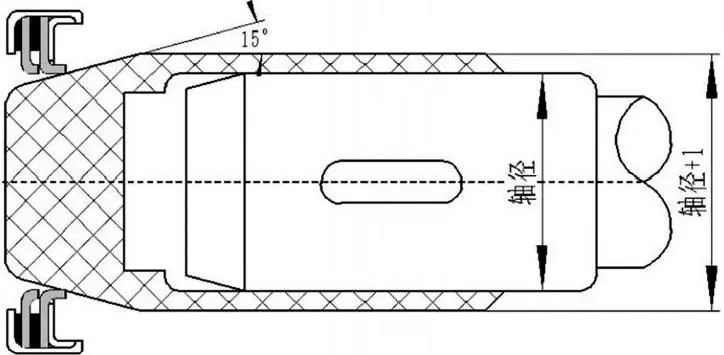

Figura 1. Installatio sigilli PTFE olei.
Figura 2. Fixio sigilli PTFE olei.
