Nostri Ruichen signacula princeps pressura finem LABIUM signacula capere amet consilium providere melius uber perficientur. Core est compositum ex repleti vel mutatio PTFE materiales specialem informibus signantes anulum et o-informibus (Flexilis), quod est idoneam ad axial (esca), quod est idoneam ad axium (pressura), et aquae pressura sigillum necessitates.
High pressure end flange seals have significant advantages, long life, reduced maintenance costs, excellent sealing to prevent media leakage, high pressure and ultra-high pressure resistance to meet extreme working conditions, and exquisite structure for easy installation.
Secundum diversas operationem condiciones, ut nos fecimus dividitur exempla pro te eligere a: RC2871 series (ius-angulus sigillum anulum et o-informibus Flexilis anulum) dividitur in et b genera ad cope cum diversis pressura missionibus; RC2872 Series (C-Formes Signis Annuli et O-informibus Flexilis anulum) est idoneam ad static pressura signantes; RC2873 (AUCTORFORCED recta-angulus sigillum anulum et o-informibus Flexilis anulum) Specialitatem in ultra-princeps pressura static obsignationem; RC2874 (Y-informibus signantes anulum et o-informibus Flexilis anulum) ensures stabilitatem de ultra-excelsum pressura signantes; RC2875 Series (pedites informibus sigillum annulum et o-informibus Flexilis anulum) est divisa in et B genera in occursum variis static signantes necessitates.
Quidam specialem junctiones sunt plena ornare se, ut modified pedites informibus signantes anulum cum o-anulum, quod utitur pre-pressuribus et impulsu et resistere melior et ultra-excelsum pressuris; Simile est verum pro compositum de C informibus et adiectis ius-angulus signing annulos et o-annulos, providente certa solutio ad altus pressura finis (LABIS) forsit in omnes directiones.
Product Features et Applications:

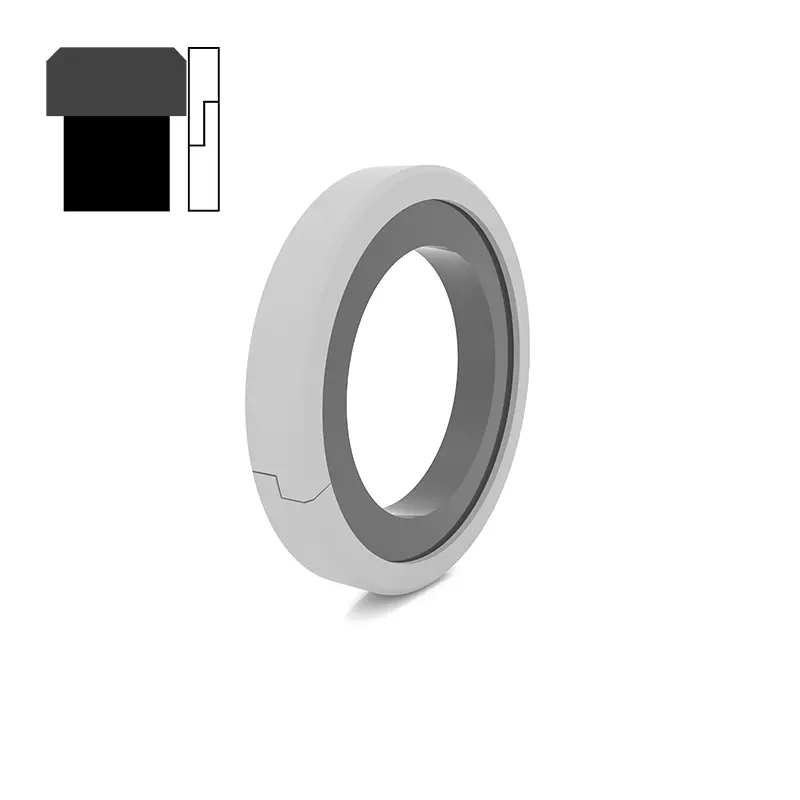

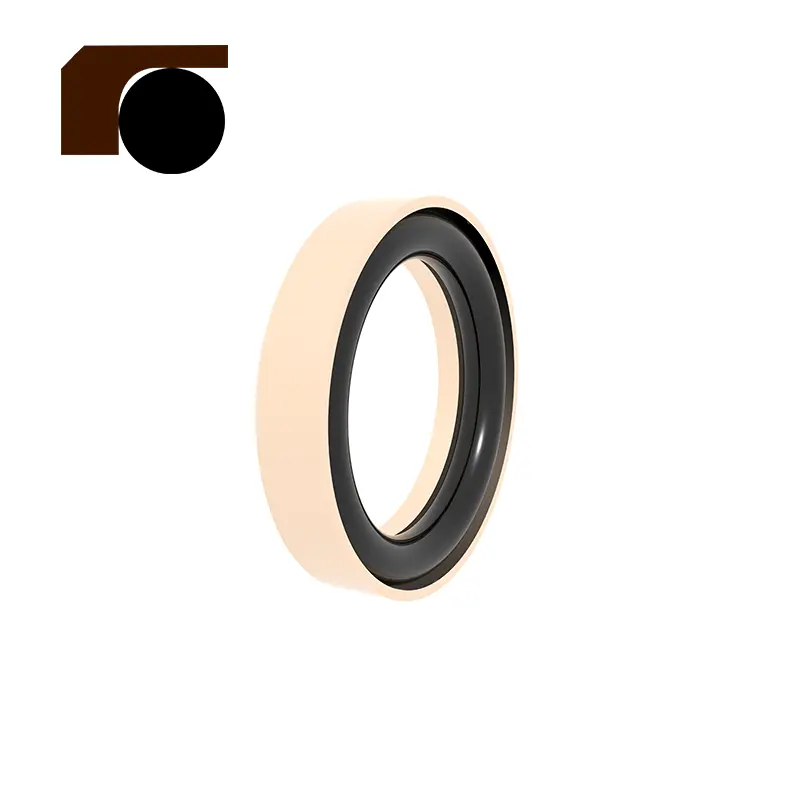

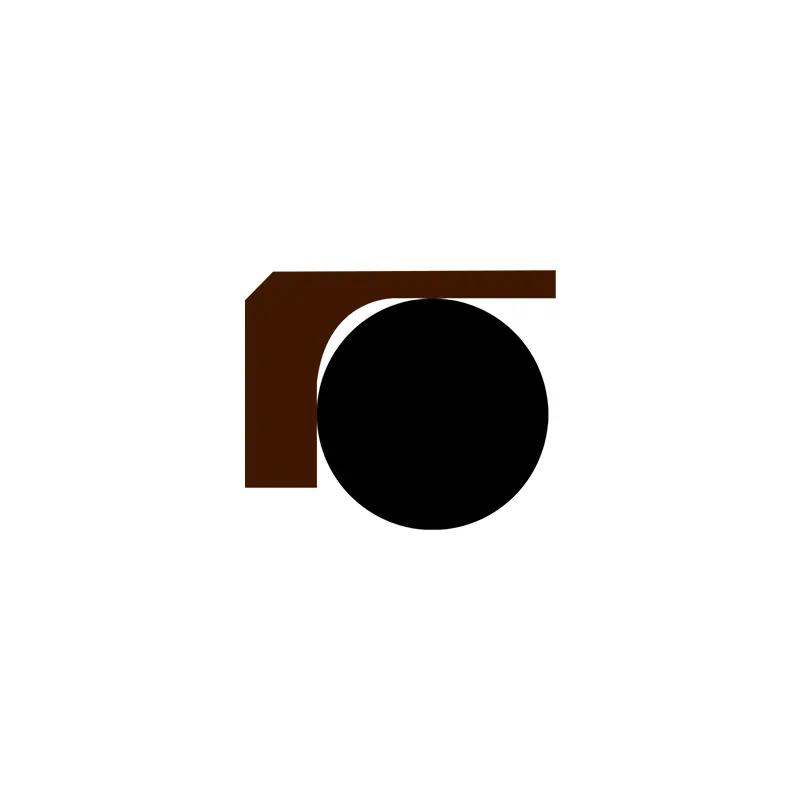

Hoc sigillum composito ex iure-angulus sigillaing anulum ex Ptfe et an anulum. O-anulum est pre-compressi ad generare in clamping vis ad consequi signantes. Clamping vi signal augetur sub pressura, id est, superior pressura, in melius signantes. Cum lapsus circulum adoptat latus costa structuram, o-anulum non expressi et potest sustinere princeps pressura.
Hoc sigillum composito ex ptfe C informibus signantes circulum et anulus. O-anulum est pre-compressi ad generare in clamping vis ad consequi signantes. Clamping vi signal augetur sub pressura, id est, superior pressura, in melius signantes. Cum lapsus circulum adoptat duplex postesided costa structuram, in o-anulum non expressi et potest sustinere princeps pressura.
RC2873
RC2874
Hoc sigillum composito ex pedites informibus signantes annulum factum est mutatio Ptfe materia et in o-anulum. O-anulum est pre-compressi ad generare in clamping vis ad consequi signantes. Clamping vi signal augetur sub pressura, id est, superior pressura, in melius signantes. Cum lapsus circulum adoptat latus pede informibus costa structuram, o-anulum non expressi et potest resistere altum et ultra-pressura.
Specifications:
| RC2871-A Internus pressura genus specifications (omnes cubits intra modularis range sunt available) | |||||
| Exterius diameter range D H11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Sulcus width
L1 + 0,2 pressura> 80MPA |
Rotunda Rmax |
O-Orbis filum diameter dO |
| XII ~ XXX | 2.35 | 4.5 | 6.8 | 0.4 | 2.65 |
| XXXI ~ L | 3.10 | 5.6 | 8.0 | 0.4 | 3.55 |
| LI ~ CXXVII | 4.65 | 7.6 | 11.0 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.25 | 10.2 | 12.6 | 0.6 | 7.00 |
| D ~ MDC | 7.50 | 12.5 | 15.0 | 0.7 | 8.60 |
| RC2871-B externa pressura typus specifications (omnes cubits intra modularis range sunt available) | |||||
| Exterius diameter range DH11 | Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Tempus Width L1 + 0.2 pressura> 80MPA |
Rotunda Rmax | O-Orbis filum diameter dO |
| V ~ XXX | 2.35 | 4.5 | 6.8 | 0.4 | 2.65 |
| XXXI ~ L | 3.10 | 5.6 | 8.0 | 0.4 | 3.55 |
| LI ~ CXXVII | 4.65 | 7.6 | 11.0 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.25 | 10.2 | 12.6 | 0.6 | 7.00 |
| D ~ MDC | 7.50 | 12.5 | 15.0 | 0.7 | 8.60 |
| RC2872-A Internus pressura typus specifications (omnes cubits intra modularis range sunt available) | ||||
| Exterius diameter range D H11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Rotunda Rmax |
O-Orbis filum diameter dO |
| XV ~ XXX | 2.35 | 5.5 | 0.4 | 2.65 |
| XXXI ~ L | 3.10 | 6.6 | 0.4 | 3.55 |
| LI ~ CXXVII | 4.65 | 9.6 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.25 | 11.7 | 0.6 | 7.00 |
| D ~ MDC | 7.5 | 13.6 | 0.7 | 8.60 |
| RC2872-B externa pressura typus specifications (omnes cubits in parametri range sunt available) | ||||
| Exterius diameter range D H11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Rotunda R |
O-Orbis filum diameter dO |
| V ~ XXX | 2.35 | 5.5 | 0.4 | 2.65 |
| XXXI ~ L | 3.10 | 6.6 | 0.4 | 3.55 |
| LI ~ CXXVII | 4.65 | 9.6 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.25 | 11.7 | 0.6 | 7.00 |
| D ~ MDC | 7.50 | 13.6 | 0.7 | 8.60 |
| Exterius diameter range IE11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Rotunda Rmax |
O-Orbis filum diameter dO |
| XV ~ XXVIII | 2.80 | 5.5 | 0.4 | 2.65 |
| XXIX ~ LIV | 3.55 | 6.6 | 0.4 | 3.55 |
| LV ~ CXXVIII | 5.30 | 9.1 | 0.5 | 5.30 |
| CXXIX ~ CDXCIX | 7.20 | 11.8 | 0.6 | 7.00 |
| D ~ MDC | 8.50 | 13.8 | 0.7 | 8.60 |
| Exterius diameter range IE11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Rotunda Rmax |
O-Orbis filum diameter dO |
| XV ~ XXVI | 3.4 | 5.5 | 0.4 | 2.65 |
| XXVII ~ L | 4.2 | 6.6 | 0.4 | 3.55 |
| LI ~ CXXVII | 6.1 | 9.1 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 8.0 | 11.8 | 0.6 | 7.00 |
| D ~ MDC | 9.5 | 15.5 | 0.7 | 8.60 |
| RC2875-A Internus pressura typus specifications (omnes cubits intra modularis range sunt available) | |||||
| Exterius diameter range D H11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Tempus Width L1 + 0.2 pressura> 100MPA |
Rotunda Rmax |
O-Orbis filum diameter dO |
| XVII ~ L | 3.1 | 6.6 | 8.6 | 0.4 | 3.55 |
| LI ~ CXXVII | 4.6 | 10.0 | 12.0 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.3 | 13.2 | 15.2 | 0.6 | 7.00 |
| D ~ MDC | 7.5 | 15.8 | 17.8 | 0.7 | 8.60 |
| RC2875-B externa pressura type cubits (omnes cubits intra modularis range sunt available) | |||||
| Exterius diameter range D H11 |
Sulcus profundum h-0.05 |
Sulcus width L+0.2 |
Tempus Width L1 + 0.2 pressura> 100MPA |
Rotunda Rmax |
O-Orbis filum diameter dO |
| V ~ XL | 3.1 | 6.6 | 8.6 | 0.4 | 3.55 |
| XLI ~ CXXVII | 4.6 | 10.0 | 12.0 | 0.5 | 5.30 |
| CXXVIII ~ CDXCIX | 6.3 | 13.2 | 15.2 | 0.6 | 7.00 |
| D ~ MDC | 7.5 | 15.8 | 17.8 | 0.7 | 8.60 |
| Maximum pressura finem LABIUM SEALS INDIGNUS Working Conditions | ||||
| Set | Exemplar | Pressura (MPa) |
Temperature (℃) | MEDIUS |
 |
RC2871-A | ≤300 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2871-B | ≤300 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2872-A | ≤100 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2872, B | ≤100 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2873 | ≤200 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2874 | ≤300 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2875-A | ≤300 | -35 ~ + C (matching o-circulum NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2875-B | ≤300 | -35 ~ + C (matching rectangulis anulus NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ + CC (matching rectangulis circulum fkm) | ||||
 |
RC2879-A | 105 | -35 ~ + C (matching rectangulis anulus NBR) | Hydraulica oleum EMULSIO aqua Gas etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||
 |
RC2875-B | 105 | -35 ~ + C (matching o-circulum NBR) -20 ~ CC (matching o-anulum fkm) |
Hydraulica oleum EMULSIO aqua Gas etc. |
