Princeps pressura Piston virga signacula

Princeps pressura Piston virga signacula est princeps pressura signati productum de Ruichen signacula. Nos es professional sigillum manufacturer et elit. Hoc productum est composito ex ptfe signa anulum et o-informibus Flexilis anulum, quae est idoneam ad hydraulicas reciprocating motus unum, modo signantes. Nos autem valde volens providere vobis cum magis uber notitia et quoties, placere sentire liberum contactus nobis.

Mitte Inquisitionem

depictio producti

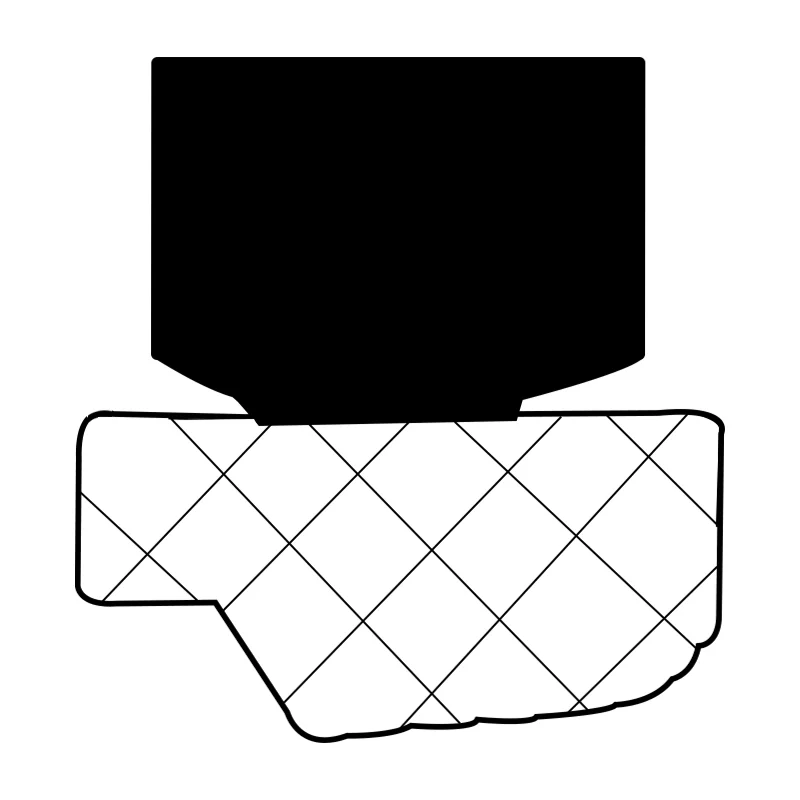

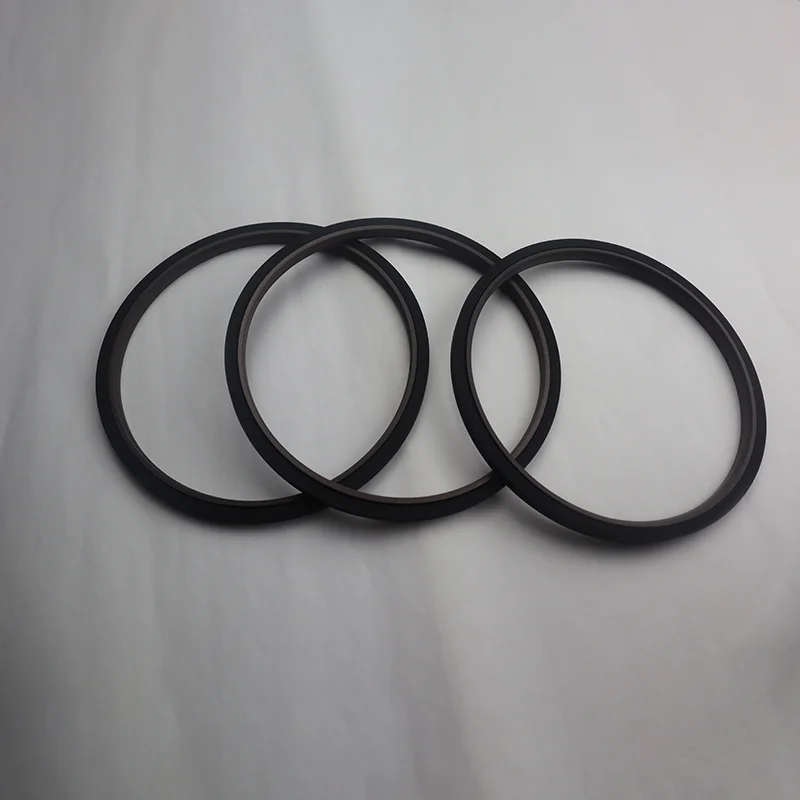

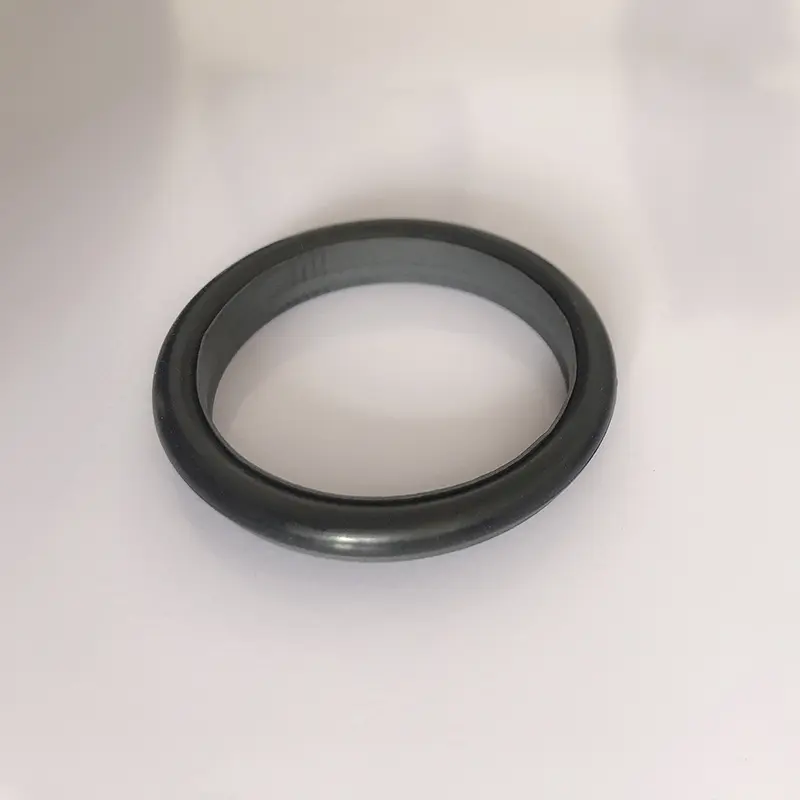

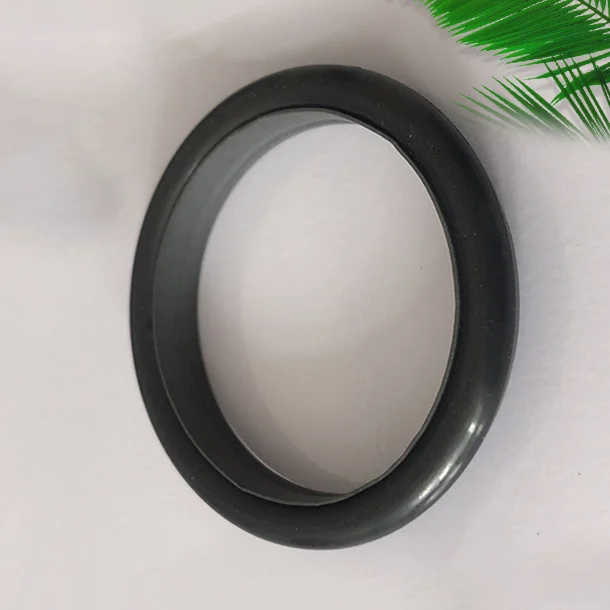

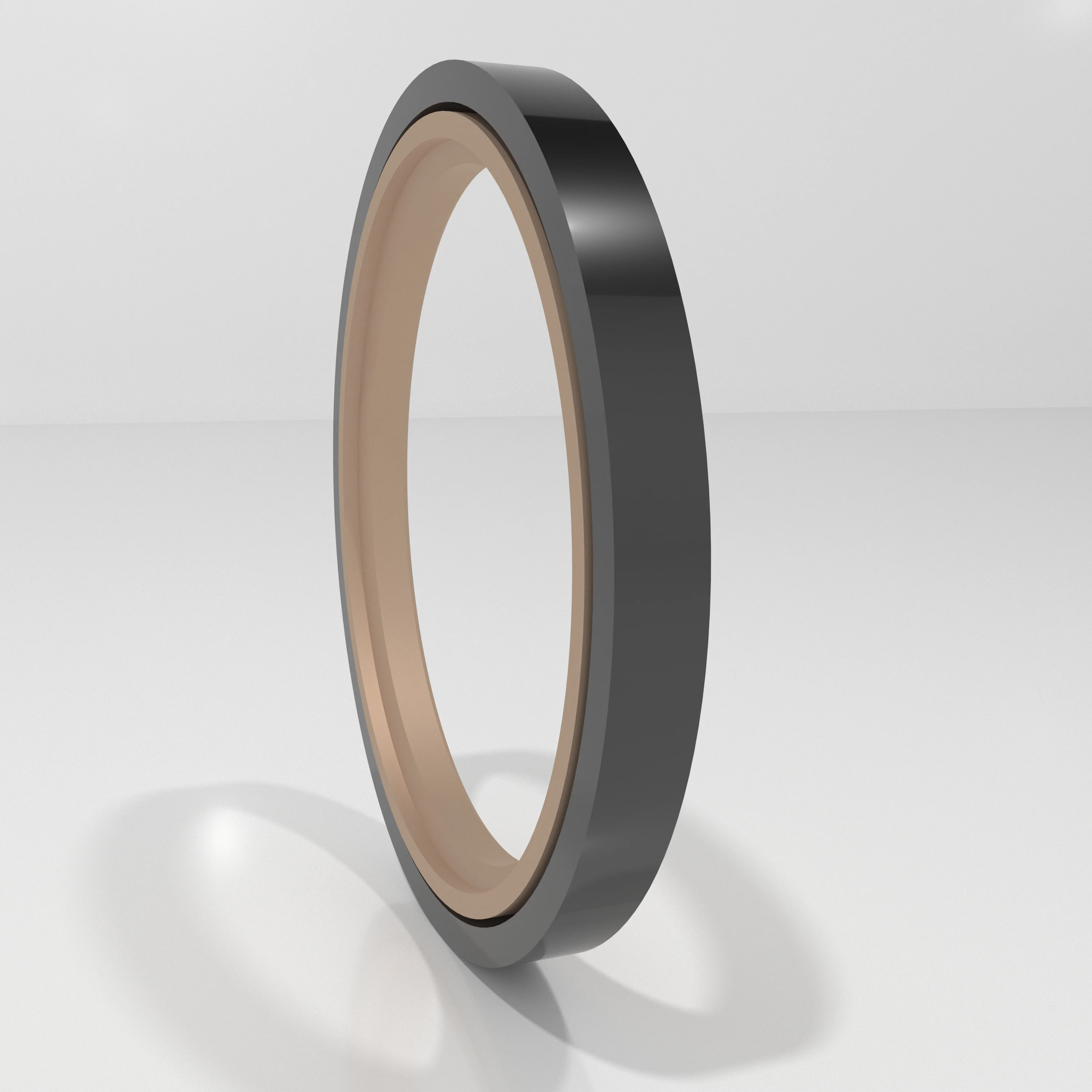

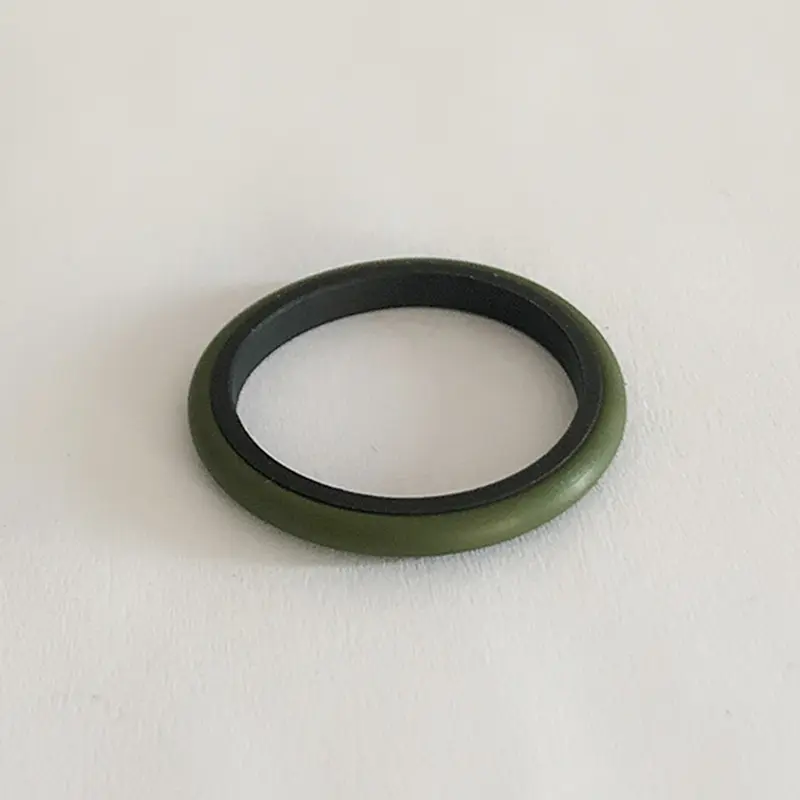

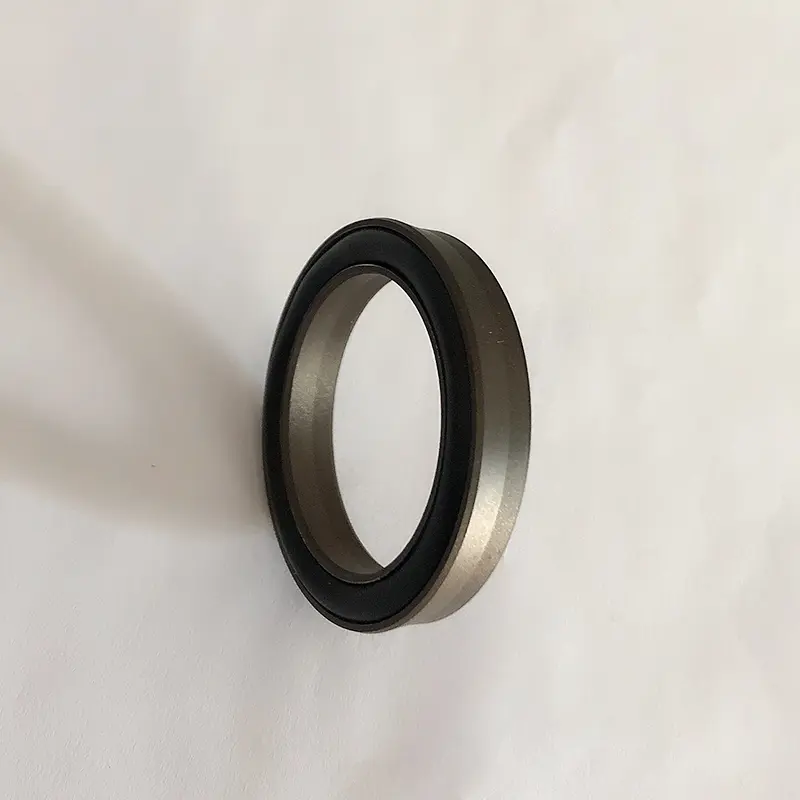

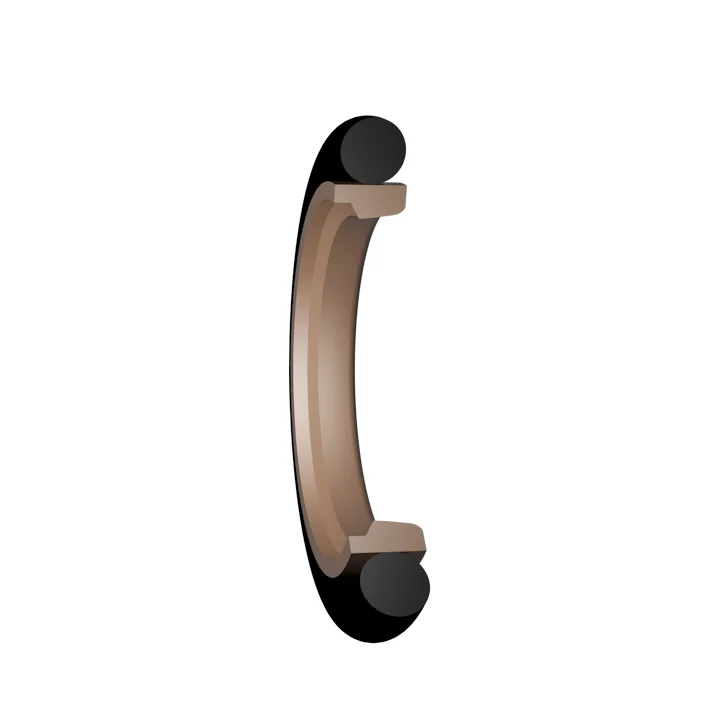

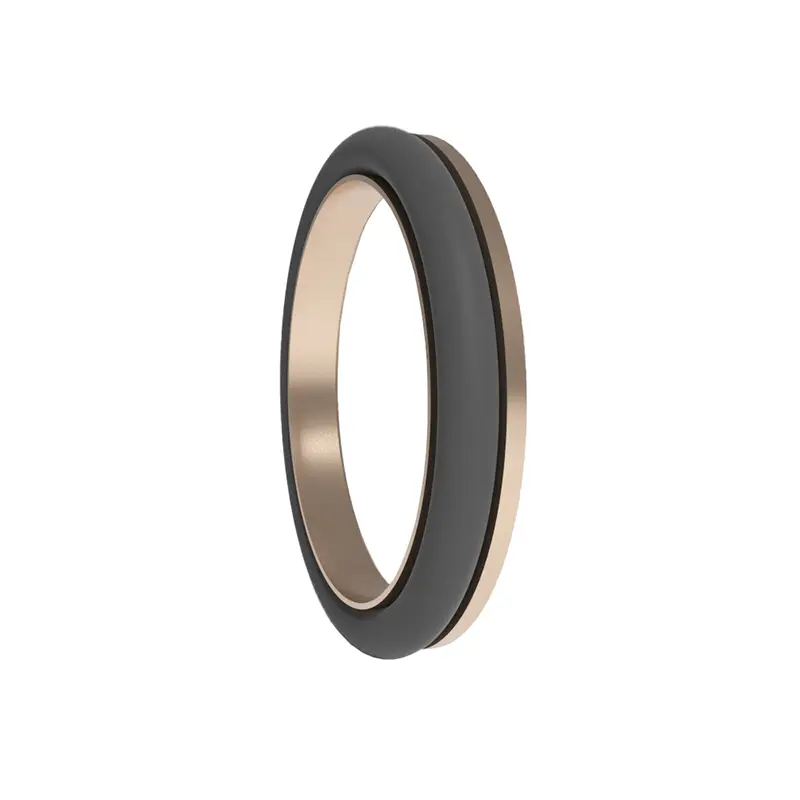

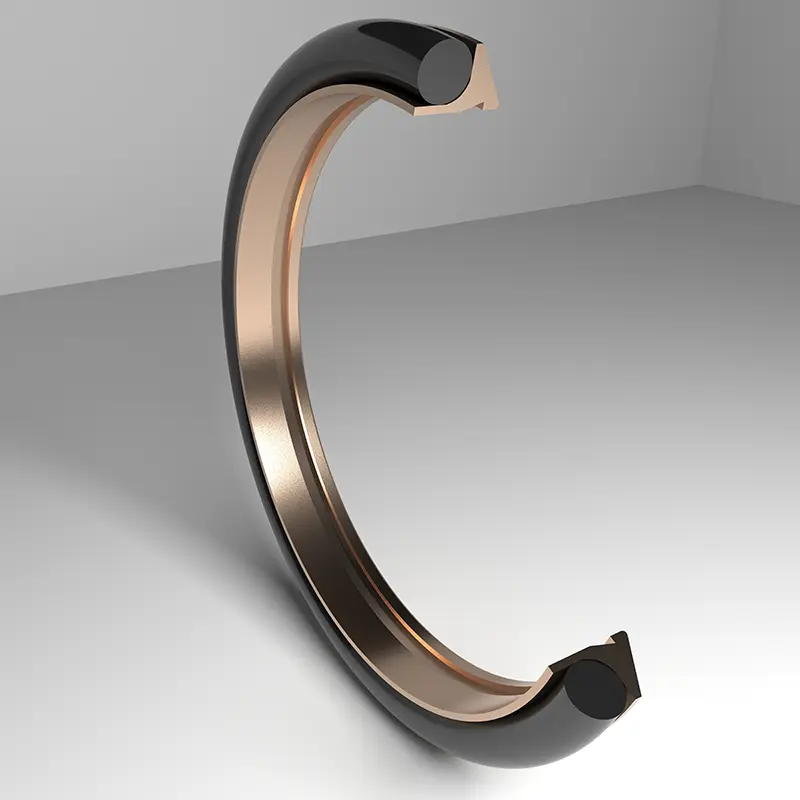

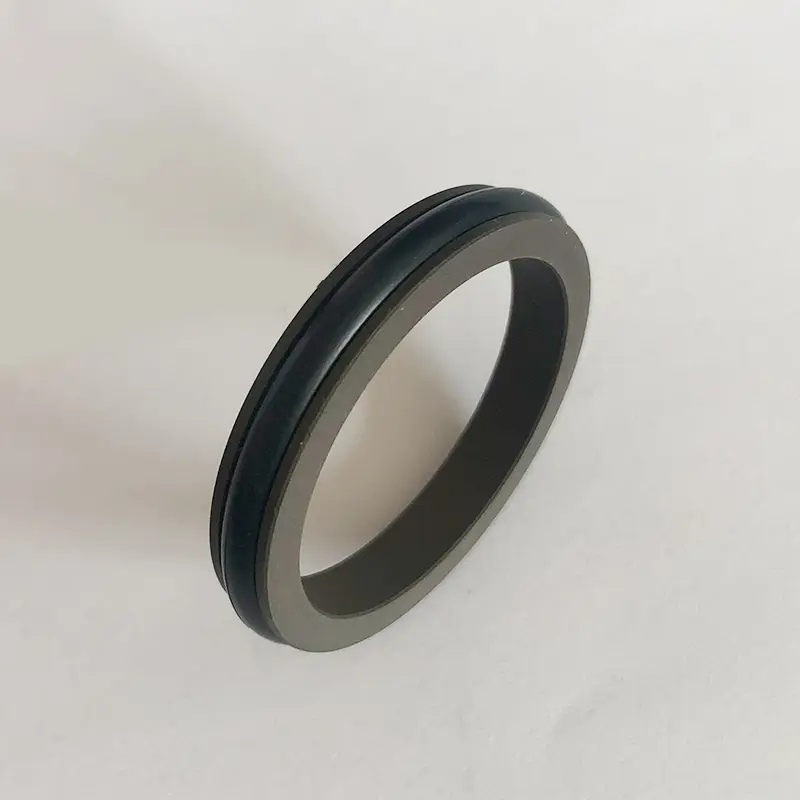

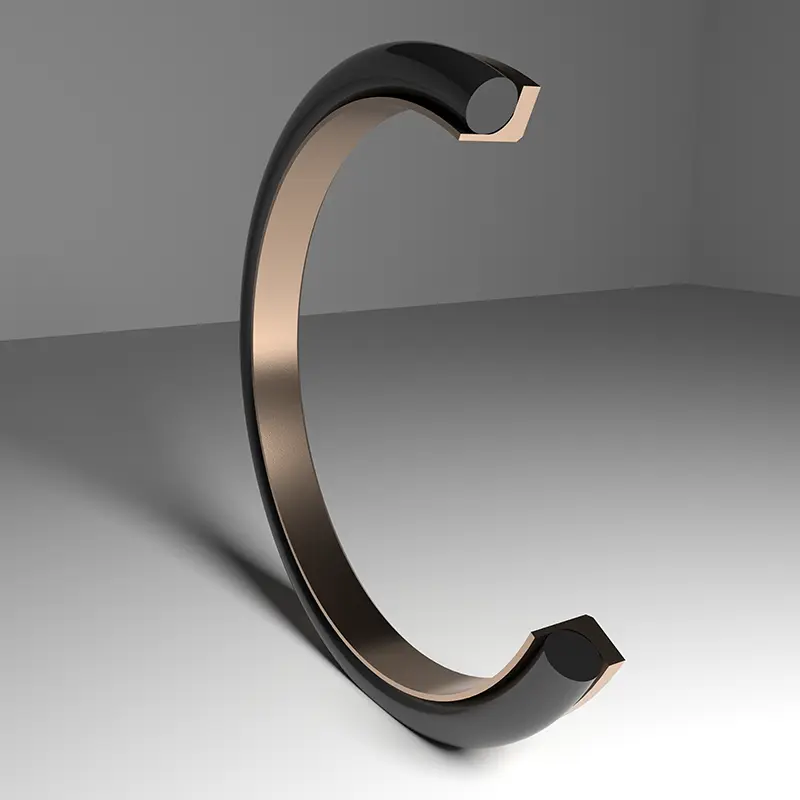

Et princeps pressura Piston virga signacula provisum est a Ruichen sunt composito ex PTFE signantes Annulorum et O-informibus Flexilis annulos, quae maxime propter unum, modo signantes de hydraulicis reciprocing motus. Sunt dividitur in RC01-RC14 series secundum matching o-annulos. Cum opus, in O-anulus providet radialis vi compensare ad gere, ad signationem circulum, et tenuis labium consilio signantes annulum habet bonum fit. Duo cooperantur ad partum a bonam signantes effectus.

Nostra princeps pressura Piston virga signacula sunt late in iniectio CUMATIUM machinas et mori-casting machinis in industriae hydrau systems, excavators et in automobile vestibulum et sustentacionem, et hydraulicorum et actuatores et windladses in navem in navem et in navalibus et hydraulicorum in navigatione et actores et windelasses in navem et in navibus in navalibus et hydraulicorum et actores et windelasses in navigationibus in navem et in navalibus et hydraulicorum in navalibus et in navalibus et hydraulicorum in navalibus et hydraulicorum in navigationibus et in navalibus et hydraulicorum in navigationibus et actuos et windelas in navigationibus in navem et in navalibus in navibus. Non potest efficaciter curare firmum operationem de hydrau systems et vitare lacus.

Product Features et Applications:

Features:

I. princeps pressura Piston virga signacula potest esse pro utroque hydraulicis et pneumatic applications.

II. Et signantes perficientur semper bonum sive sit altus vel humilis pressura signati conditionibus.

III. Humilis frictio, parva incipiens resistentia, lenis motus, aequale dynamic et stabilis frictio, nihil reptile.

IV. Sigillum habet longam vitam, idoneam oleum-liberum lubrication signantes.

V. Parvus structural spatio et securus installation et sustentationem.

AppliBMBAL Conditions:

Lorem opus conditionibus princeps pressura Piston virga signacula (terminum values non videtur simul)

Set	Exemplar	Pressura (MPa)	Temperature (℃)	Celeritate (m / s)	MEDIUS
	RC01 / Rc02	≤70	-35 ~ + C (matching o-circulum NBR)	≤6	Hydraulicorum oleum, flamma retardant fluidum (HFA / HFB), Gas, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC03 / RC04	≤100	-35 ~ + C (matching o-circulum NBR)	≤6	Hydraulicorum oleum, flamma retardant fluidum (HFA / HFB), Gas, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	Rc05	≤200	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC06 / Rc07	≤100	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC08 / RC09	≤200	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	Rc10	≤260	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC11	≤60	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	Rc11, b	≤60	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC12	≤60	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC13	≤20	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)
	RC14	≤20	-35 ~ + C (matching o-circulum NBR)	≤6	Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc.
			-20 ~ CLXXX + (matching o-anulum fkm)

Material Electio:

I. De matching o-anulum materiae potest electus: R01 Nitrile (NBR), Ro2 Fluorubber (FKM), etc.

II. Annuli Signing Materials: Ptfe1, Ptfe2, Ptfe3, Ptfe4, Pu, etc.

Ordinis Exempli gratia: (nisi aliquam exempla monstrabit, quaeso contact us pro specifica ordine exempla)

Ordinis Model RC01-80X89.6X7.8-Ptfe3-R01

Model-rod Diameter X sulcus Diameter x sulcus width pfe3-mutatio Ptfe Material Code R01 O-Annuli Material Code

Ordinis Model RC03-80X89X10 Ptfe3-R01
Model-rod Diameter X sulcus Diameter x sulcus width pfe3-modified ptfe materia codice R01-O-anulus Material Code

Ordinis Model RC06-80X89.9X9.2, PTFE3-R01
Model-rod Diameter X sulcus Diameter x sulcus width pfe3-mutatio Ptfe Material Code R01 O-Annuli Material Code

Ordinis Model RC08-80X90.2X11.2-Ptfe3-R01 Model-Rod-Diameter X sulcus Diameter x sulcus width-material codice

Specifications:

(Tantum quaedam exempla monstrantur, placere contact us for specifica ordinem exempla)

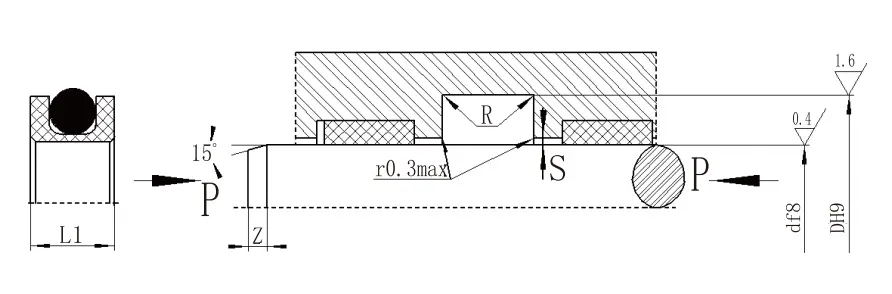

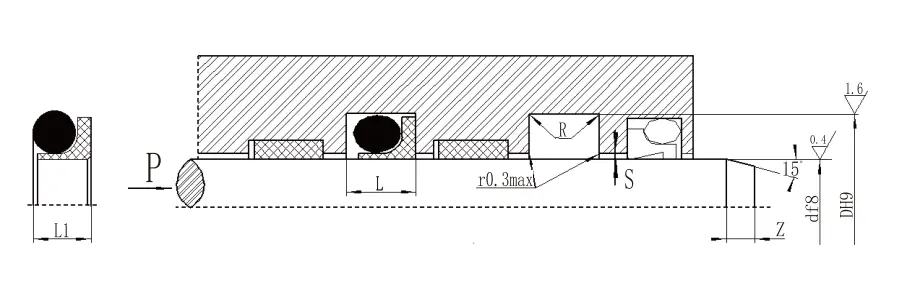

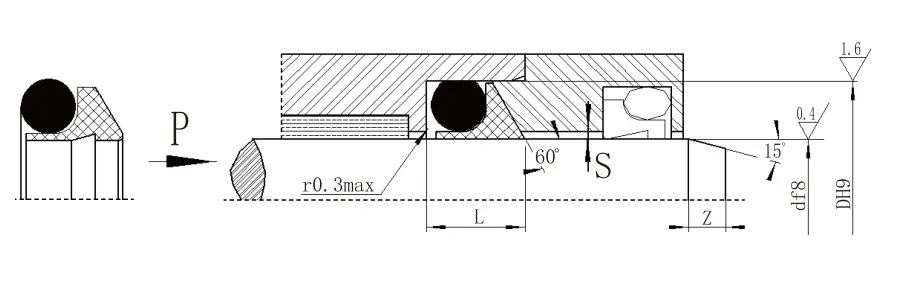

4.1 RC01 Specifications (products de aliqua magnitudine in specificationem mensa potest produci)
df8 Vexillum genus Rc01	df8 Lux onus Rc01 Q- Q	df8 Gravibus onus RC01-Z	D H9	L⁺^.²	L1	Rmax	S_max		Z_min	d₀
df8 Vexillum genus Rc01	df8 Lux onus Rc01 Q- Q	df8 Gravibus onus RC01-Z	D H9	L⁺^.²	L1	Rmax	<20MPA	<40MPA	Z_min	d₀
-	V ~ 17.9	-	D + 3.5	3.2	2.8	0.3	0.2	0.15	3	1.8
V ~ 17.9	XVIII ~ 39.9	-	D + 5.0	4.2	3.8	0.4	0.25	0.15	4	2.65
XVIII ~ 39.9	XL ~ 108.9	V ~ 17.9	D + 6.6	5.2	4.7	0.4	0.25	0.2	5	3.55
XL ~ 108.9	CIX ~ DCXXIX	XVIII ~ 39.9	D + 9,6	7.8	7	0.5	0.3	0.2	7	5.3
CIX ~ DCXXIX	DCXXX ~ CMXCIX	XL ~ 108.9	D + 12,5	9.8	8.8	0.6	0.35	0.25	10	7.00
DCXXX ~ CMXCIX	M ~ MDXCIX	CIX ~ DCXXIX	D + 15,2	11.6	10.6	0.7	0.5	0.3	12	8.6
M ~ MDXCIX	≥1600	DCXXX ~ CMXCIX	D + 17,8	14.8	13.5	0.8	0.6	0.4	15	10.0
≥1600	-	M ~ MDXCIX	D + 21,2	17.8	16.3	1	0.7	0.6	20	12.0
Nota: I. Nam ≤30mm, commendatur ut aperta sulcus.
II. Nam installation integralis (clausit) sulcus sigillis, placere ad nos societatem scriptor installation dux. III. Nam pressura> 40MPA, radix area sigillum utitur H8 / F8 fit tolerantia.

4.1 Rc03 Specification Parameter Table (products de aliqua magnitudine in specificationem mensa potest produci)
d F8	D H9	L^+.2	Smaax		Z_min	d₀
d F8	D H9	L^+.2	<40MPA	<60MPA	Z_min	d₀
V ~ XVII	D + 4.7	5.2	0.25	0.15	4	2.65
XVIII ~ XXXIX	D + 6.2	6.6	0.25	0.2	5	3.55
XL ~ CVIII	D + 9.0	10	0.3	0.2	7	5.3
CIX ~ DCLXX	D + 12.0	13.2	0.35	0.25	10	7
DCLXXI ~ CMXCIX	D + 14,6	15.8	0.5	0.3	12	8.6
M ~ MDC	D + XVIII	17.4	0.6	0.4	15	10
> MDC	D + 21,2	22	0.7	0.6	20	12
Note: I. Nam pressura> 60MPA, Sigillum Radix Area Usus H8 / F8 fit tolerantia et ultra-princeps pressura sigillum smax <0.05.
II. Placere consulere nostri comitatu cum clausa sulcus structuram debet esse.

4.1 Rc06 Specifications (products de aliqua magnitudine in specificationem mensa potest produci)
d F8 Vexillum genus Rc06	d F8 Lux onus Rc06-Q	d F8 Gravibus onus RC06-Z	D H9	L⁺^.²	L1	Rmax	S_max		Z_min	d₀
d F8 Vexillum genus Rc06	d F8 Lux onus Rc06-Q	d F8 Gravibus onus RC06-Z	D H9	L⁺^.²	L1	Rmax	<20MPA	<40MPA	Z_min	d₀
-	IV ~ 17.9	-	D + 3.6	4	3.6	0.3	0.2	0.15	3	1.8
IV ~ 17.9	XVIII ~ 39.9	-	D + 5.0	5	4.6	0.4	0.25	0.15	4	2.65
XVIII ~ 39.9	XL 106.9	IV ~ 17.9	D + 6.6	6.2	5.6	0.4	0.25	0.2	5	3.55
XL 106.9	CVII ~ 630,9	XVIII ~ 39.9	D + 9,9	9.2	8.5	0.5	0.3	0.2	7	5.30
CVII ~ 630,9	DCXXXI ~ CMXCIX	XL 106.9	D + 13.0	12.3	10.6	0.6	0.35	0.25	10	7.00
DCXXXI ~ CMXCIX	M ~ MDC	CVII ~ 630,9	D + 15,2	13.6	12	0.7	0.5	0.3	12	8.6
M ~ MDC	≥1600	DCXXXI ~ CMXCIX	D + 18,5	16	14.5	0.8	0.6	0.4	15	10
≥1600	-	M ~ MDC	D + XXII	19	17	1	0.7	0.6	20	12.0
Nota: I. Nam Shaft Diameter ≤70mm, commendatur ut aperta sulcus. Nam installation integralis (clausit) sigillis sigilla placere ad installation dux.
II. Nam pressura> 40mpa, radix area sigillum utitur H8 / F8 fit tolerantia.

4.1 Rc08 Specifications (products de aliqua magnitudine in specificationem mensa potest produci)
Latin genus df8 rc08	Lond DF8 RC08-Q	Gravis onus DF8 RC08-Z	Sulcus diameter D H9	Sulcus width L + 0,2	Sigillum altitudo L1	Rotundatis angulis rmax	S_max		Chamfer Z_min	O-Orbis filum Diamete d₀
Latin genus df8 rc08	Lond DF8 RC08-Q	Gravis onus DF8 RC08-Z	Sulcus diameter D H9	Sulcus width L + 0,2	Sigillum altitudo L1	Rotundatis angulis rmax	<20MPA	<60MPA	Chamfer Z_min	O-Orbis filum Diamete d₀
-	V ~ 17.9	-	D + 3.6	4.7	4.2	0.3	0.2	0.15	3	1.8
V ~ 17.9	XVIII ~ 39.9	-	D + 5.2	6.1	5.5	0.4	0.25	0.15	4	2.65
XVIII ~ 39.9	XL ~ 108.9	V ~ 17.9	D + 6.8	8	7	0.4	0.25	0.2	5	3.55
XL ~ 108.9	CIX ~ DCXXIX	XVIII ~ 39.9	D + 10,2	11.2	10	0.5	0.3	0.2	7	5.30
CIX ~ DCXXIX	DCXXX ~ CMXCIX	XL ~ 108.9	D + 13,4	14.2	12.7	0.6	0.35	0.25	10	7.00
DCXXX ~ CMXCIX	M ~ MDXCIX	CIX ~ DCXXIX	d 16,0 +	16.2	14.5	0.7	0.5	0.3	12	8.6
M ~ CLIX	≥1600	DCXXX ~ CMXCIX	D + 18,8	18.6	16.8	0.8	0.6	0.4	15	10.0
≥1600	-	M ~ MDXCIX	D + 22.8	21.8	19.8	1.0	0.7	0.6	20	12.0
Note: I. Placere consulere nostri comitatu cum clausa sulcus non requiritur.
II. Pressura> 60MPA, radix H8 / F8 matching tolerantia, ultra-princeps pressura sigillum smax <0.05.
