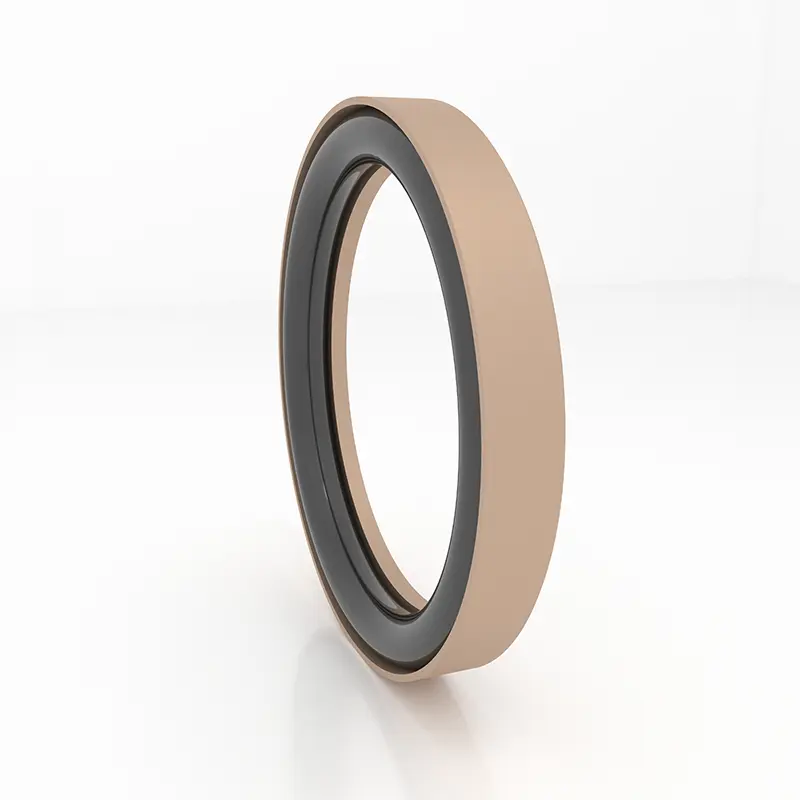

Princeps pressura signacula enim Piston foramina sunt praeclara, constans ptfe vel speciali compositum materia specialis informibus signantes annulos et altum elastica o-informationes Flexilis annulos. Secundum ad matching o-annulos, dividitur in RC58 - RC64 series (accommodata ad GB1235), quae maxime usus est ad hydraulicos reciprocating motus unum, modo signantes.
Ptfe materia est fortis eget stabilitatem, acidum et alcali corrosio resistentia, et adapts ad universa eget ambitum. Et signing anulum et Flexilis circulum opus simul ad consequi optimum signantes effectus.
In Marine Engineering, princeps pressura signacula enim Piston foramina potest providere clavis praesidium pro hydraulica ratio profunda mare detectors. Altum mare aquam pressura est altum et maris marcescere altus corrosi. In materia utilitatem est unum ex prerequisites pro productum providere princeps pressura resistentia et corrosio resistentia.
Gravis machinatione vestibulum magna greges hydrau telescopic arma prodesse amet. Et constructione site est universa, telescopic arma movere frequenter et pressura variatur. Ptfe materia est gerunt, repugnans, combined cum tenuis labrum consilio, realis-time ultricies ad gerunt, stricta signantes et reducitur defectum metus.
In agro novi industria vehicles, princeps pressura signacula enim Piston foramina sunt etiam discrimine. In EPs hydraulicis components, in materia est firmum et potest accuratius sigillum in faciem Hydraulicorum oleum exesa et temperatus mutationes; In fregit ratio, ad altus-pressura impulsum et fregit fluidi corrosio, specialem structuram et optimized crassitiem signantes circulum stricte ne layakage et curare salutem.
Et summus pressura signacula enim Piston foramina non producendum habent aliquam exempla cum tenuis labium consilio cum bonum ultrices et optimum obsignationem. Sunt bene optimized enim aqua pressura et humilis-viscositas media. Special structuram repugnant ad excelsum pressura et habet optimum materiale qualitas. Est optimum arbitrium ad foramen efficient signantes.
Product Features:
I. humilis frictio, parva incipiens resistentia, lenis motus, aequalis dynamic et stabilis frictio, nihil reptile;
II. Long vitae, potest esse oleum-liberum lubricyricticionem signacula;
III. Potest adhiberi ad signantes princeps pressura, ultra-princeps pressura, aqua et alia humilis viscosity media;
IV. Potest adhiberi ad signantes aquae et aliis humilis viscosity media
Material Electio
I. De materiae ad O-annulos sunt: R01 Nitrile Flexilis (NBR), R02 Fluorubber (FKM), etc.
II. Annuli Signing: Latin Material Ptfe3, Alia libitum materiae Ptfe1, ptfe2, ptfe4, compositum thermoplastic materiae.
| Lorem operantes conditionibus princeps pressura signacula pro Piston foramina (terminum values non apparere simul) | |||||
| Set | Exemplar | Pressura (MPa) |
Temperature (℃) | Celeritate (m / s) | MEDIUS |
 |
RC51 / RC52 | ≤70 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
RC53 / RC54 | ≤100 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
Rc55 | ≤200 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
RC56 / RC57 | ≤100 | XXXV ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
RC58 / RC59 | ≤200 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CC (matching o-anulum fkm) | |||||
 |
Rc60 | ≤260 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CC (matching o-anulum fkm) | |||||
 |
RC61 | ≤60 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CC (matching o-anulum fkm) | |||||
 |
RC61-B | ≤60 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CC (matching o-anulum fkm) | |||||
 |
Rc62 | ≤60 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), aqua, etc. |
| -20 ~ CC (matching o-anulum fkm) | |||||
 |
RC63 / SPGC | ≤20 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
RC64 | ≤20 | -35 ~ + C (matching o-circulum NBR) | ≤6 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), Gas, etc. |
| -20 ~ CLXXX + (matching o-anulum fkm) | |||||
 |
Ok | ≤50 | -35 ~ + CX (matching o-circulum NBR) | ≤1 | Mineralis-fundatur hydrau oleum, flamma retardant fluidum (HFA / HFB), etc. |
Ordinatione exemplum:
Ordinis Model RC51-80X70X7.6, PTFE3-R01
Model-Cylinder Diameter X Draco Diameter X Tempus Width Ptfe3-modified Ptfe Material Code R01 O-Ring Material Code
Ordinis Model RC53-80X69.6x9.8-Ptfe3 -R01
Model-Cylinder Diameter X sulcus Diameter X sulcus Width Ptfe3-mutatio Ptfe Material Code R01- O-Ring Material Code
Ordinis Model RC55-80X69.4x10.6, PTFE3-R01
Model-Cylinder Diameter X sulcus Diameter X sulcus Width Ptfe3-mutatio Ptfe Material Code R01- O-Ring Material Code
Ordinis Model RC56-80X70X9.2, Ptfe3 -R01
Model-Cylinder Diameter X sulcus Diameter X sulcus Width Ptfe3-mutatio Ptfe Material Code R01- O-Ring Material Code
Ordinis Model Ok-80x59X8 Cylindrum Diameter X sulcus Diameter x sulcus width
Cubits
RC51 Specification Parametri Tabula (quis specifications intra modularis range sunt available)| Latin genus dh9 RC51 |
Lux onus dh9 RC51-Q |
Gravibus onus dh9 RC51-Z |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Sigillum altitudo L1 | Smax | Chamfer Zmin |
O-Orbis filum diameter d0 |
|
| <20MPA | <40MPA | ||||||||
| VIII ~ XII | 12,9 ~ 23.9 | - | D-3.5 | 3.2 | 2.8 | 0.2 | 0.15 | 3 | 1.8 |
| 12,9 ~ 23.9 | XXIV 49.9 ~ | - | D-5.3 | 4.2 | 3.8 | 0.25 | 0.15 | 4 | 2.65 |
| XXIV 49.9 ~ | L ~ 121.9 | 12,9 ~ 23.9 | D 6,8 | 5.2 | 4.7 | 0.25 | 0.2 | 5 | 3.55 |
| L ~ 121.9 | CXXII ~ 690,9 | XXIV 49.9 ~ | D-10.0 | 7.6 | 7 | 0.3 | 0.2 | 7 | 5.30 |
| CXXII ~ 690,9 | DCXCI ~ CMXCIX | L ~ 121.9 | D-13.0 | 9.6 | 8.8 | 0.35 | 0.25 | 10 | 7.00 |
| DCXCI ~ CMXCIX | M ~ MDXCIX | CXXII ~ 690,9 | D-15,9 | 11.6 | 10.5 | 0.5 | 0.3 | 12 | 8.6 |
| M ~ MDXCIX | ≥1600 | DCXCI ~ CMXCIX | D-17.8 | 14.8 | 13.5 | 0.6 | 0.4 | 15 | 10.0 |
| ≥1600 | - | M ~ MDXCIX | D-21.2 | 17.8 | 16.3 | 0.7 | 0.6 | 20 | 12.0 |
| Nota: I. Est facilius ut install in clausis striatus> 30mm per lucem onus series. | |||||||||
| II. Placere consulere nos societatem pro clausa sulcus installation. | |||||||||
| III. Nam pressura> 40MPA, radix area sigillum utitur H8 / F8 fit tolerantia. | |||||||||
| RC52 (matching o-circulum gb1235) Specifications (quis specifications intra modularis range sunt available) | ||||||
| Range range D H9 |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Altitudo sigillum L1 |
Alveus Smax |
Chamfer Zmin |
O-Orbis filum diameter d0 |
| XII ~ LV | D 6,8 | 5.2 | 4.7 | 0.3 | 5 | 3.5 |
| LVI ~ CLXIX | D-10,8 | 8.2 | 7.5 | 0.4 | 7 | 5.7 |
| CLXX ~ MD | D-15,9 | 11.6 | 10.5 | 0.4 | 12 | 8.6 |
| Ordering Exemplum RC52-80X69.2X8.2, Ptfe3-R01 | ||||||
| Model-Cylindri Diameter X sulcus Diameter x sulcus width ptfe3- modified ptfe Material R01- O-Annuli Material Code | ||||||
| RC53 Specifications (quis specifications intra parametri range sunt available) | ||||||
| Range range D H9 |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Radiales Clearance SMAX | Chamfer Zmin |
O-Orbis filum diameter dO |
|
| <40MPA | <60MPA | |||||
| XIII ~ XXIV | D-5.4 | 5.2 | 0.25 | 0.15 | 4 | 2.65 |
| XXV ~ XLIX | D 7,2 | 6.6 | 0.25 | 0.2 | 5 | 3.55 |
| L ~ CXXI | D-10,4 | 9.8 | 0.3 | 0.2 | 7 | 5.30 |
| CXXII ~ MD | D-13.6 | 12.8 | 0.35 | 0.25 | 10 | 7.00 |
| RC54 Specifications (matching o-circulum gb1235), (quis specifications intra modularis range sunt available) | ||||||
| Range range D H9 | Sulcus diameter D H9 | Sulcus width L+.2 | Radiales Clearance SMAX | Chamfer Zmin | O-Orbis filum diameter dO | |
| <40MPA | <60MPA | |||||
| XII ~ XLIX | D-7.0 | 6.6 | 0.25 | 0.2 | 5 | 3.5 |
| L ~ CLXIX | D-11.0 | 10.5 | 0.3 | 0.2 | 7 | 5.7 |
| CLXX ~ MD | D-16,6 | 15.5 | 0.5 | 0.3 | 12 | 8.6 |
| Nota: quia pressura> 60MPA, Sigillum Radix Area Usus H8 / F8 fit tolerantia, et ultra-excelsum pressura sigillum smax <0.05. | ||||||
| Range range D H9 | Sulcus diameter D H9 | Sulcus width L+.2 | Radiales Clearance SMAX | Chamfer Zmin | O-Orbis filum diameter dO | |
| <40MPA | <60MPA | |||||
| XII ~ XLIX | D 7,2 | 8.6 | 0.25 | 0.2 | 5 | 3.55 |
| L ~ CXXI | D-10,6 | 10.6 | 0.3 | 0.2 | 7 | 5.3 |
| CXXII ~ MD | D-XIV | 13.8 | 0.5 | 0.3 | 8 | 7 |
| Nota: quia pressura> 60MPA, Sigillum Radix Area Usus H8 / F8 fit tolerantia, et ultra-excelsum pressura sigillum smax <0.05. | ||||||
| RC56 Specifications (quis specifications intra modularis range sunt available) | ||||||||||
| Latin genus dh9 RC56 |
Lux onus dh9 RC56-Q |
Gravibus onus dh9 RC56-Z |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Sigillum altitudo L1 | Rotunda Rmax |
Smax | Chamfer Zmin |
O-Orbis filum diameter DO | |
| <20MPA | <40MPA | |||||||||
| VIII ~ 12,9 | XIII ~ 23.9 | - | D 3,8 | 4 | 3.6 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| XIII ~ 23.9 | XXIV 49.9 ~ | VIII ~ 12,9 | D-5.2 | 4.7 | 4.3 | 0.4 | 0.25 | 0.2 | 4 | 2.65 |
| XXIV 49.9 ~ | L ~ 121.9 | XIII ~ 23.9 | D 6,8 | 6.2 | 5.6 | 0.4 | 0.3 | 0.2 | 5 | 3.55 |
| L ~ 121.9 | CXXII ~ DCXXIX | XXIV 49.9 ~ | D-10.0 | 9.2 | 8.5 | 0.5 | 0.35 | 0.25 | 7 | 5.3 |
| CXXII ~ DCXXIX | DCXXX ~ CMXCIX | L ~ 121.9 | D-13.0 | 12.3 | 10.6 | 0.6 | 0.35 | 0.25 | 10 | 7.00 |
| DCXXX ~ CMXCIX | M ~ MDXCIX | CXXII ~ DCXXIX | D-XVI | 13.6 | 12 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
| M ~ MDXCIX | ≥1600 | DCXXX ~ CMXCIX | D-18.5 | 16 | 14.5 | 0.8 | 0.6 | 0.4 | 15 | 10.0 |
| ≥1600 | - | M ~ MDXCIX | D-XXII | 19 | 17 | 1.0 | 0.7 | 0.6 | 20 | 12.0 |
| Note: I. Nam pressuris> 60MPA, Sigillum Radix Area Usus H8 / F8 matching tolerantia et ultra-princeps pressura sigillum smaax <0.05. II. Cylindri diametri> 30mm, quod possit installed in clausa striatus. Placere consulere nostri comitatu. | ||||||||||
| RC57 Specifications (matching o-circulum gb1235) (quis specifications intra modularis range sunt available) | ||||||||
| Range range D H9 | Sulcus diameter D H9 | Sulcus width L+.2 | Altitudo sigillum L1 | Per angulos Rmax | Smax | Chamfer Zmin | O-Orbis filum diameter dO | |
| <20MPA | <40MPA | |||||||
| VIII ~ XXVII | D-4.6 | 4.5 | 4 | 0.4 | 0.25 | 0.15 | 4 | 2.4 |
| XXVIII ~ LV | D 6,8 | 6.2 | 5.6 | 0.4 | 0.25 | 0.2 | 5 | 3.5 |
| LVI ~ CLXIX | D-10,8 | 9.8 | 8.9 | 0.5 | 0.3 | 0.2 | 8 | 5.7 |
| CLXX ~ MD | D-16.0 | 13.6 | 12 | 0.7 | 0.5 | 0.3 | 12 | 8.6 |
| Ordering Exemplum RC57-80X69.2X9.8-PTFE3-R01 | ||||||||
| Model-Cylinder Diameter X sulcus Diameter X sulcus Width Ptfe3, R01 Material Code | ||||||||
