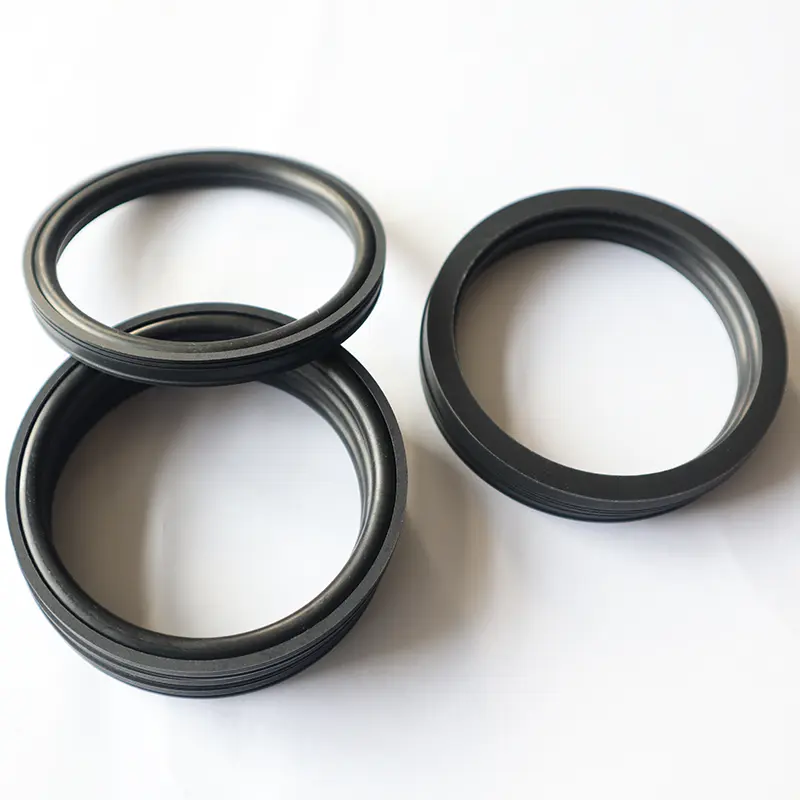

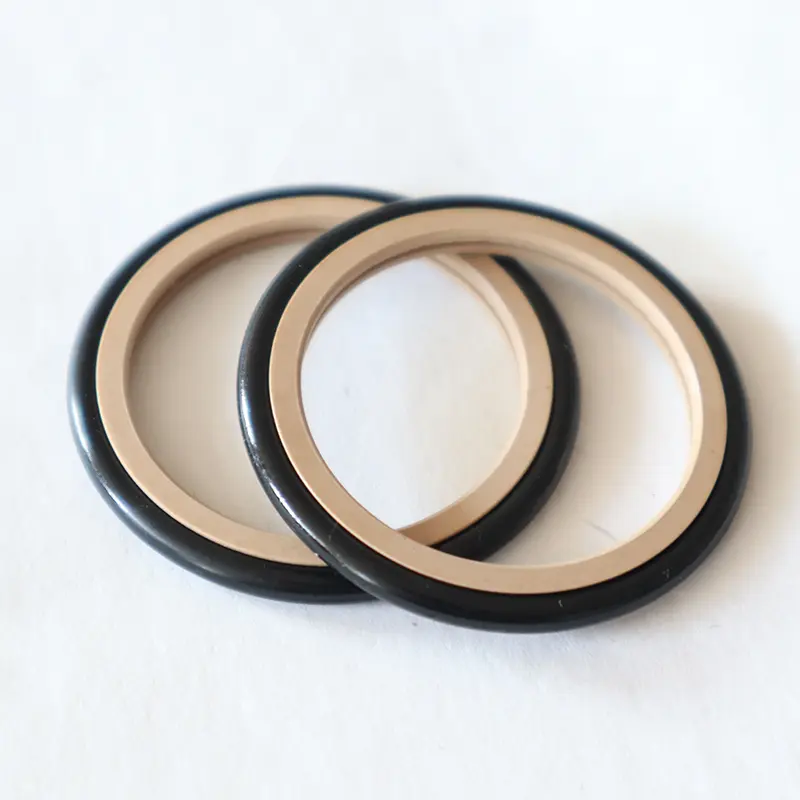

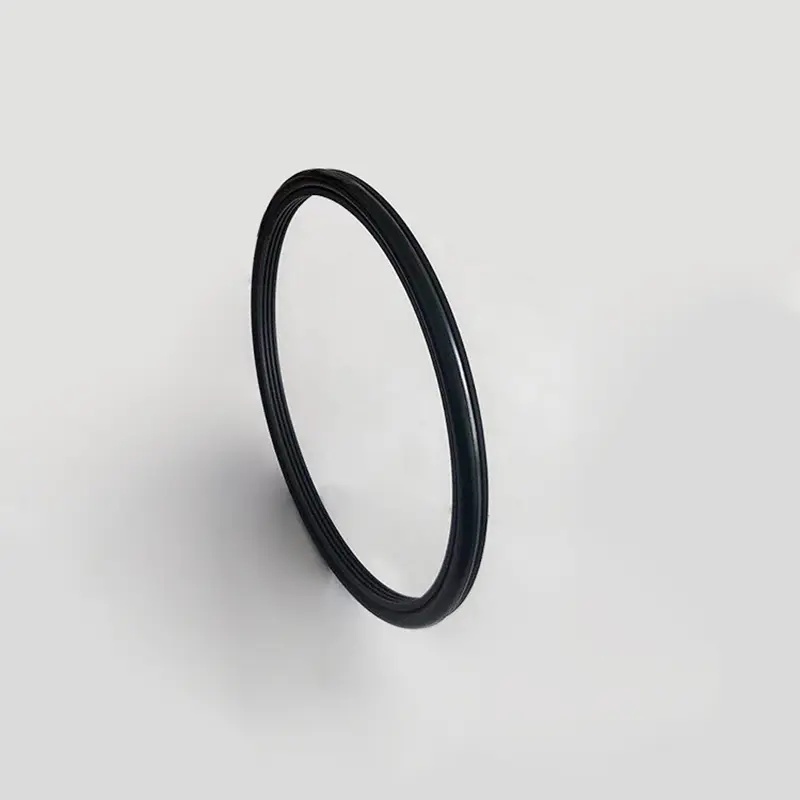

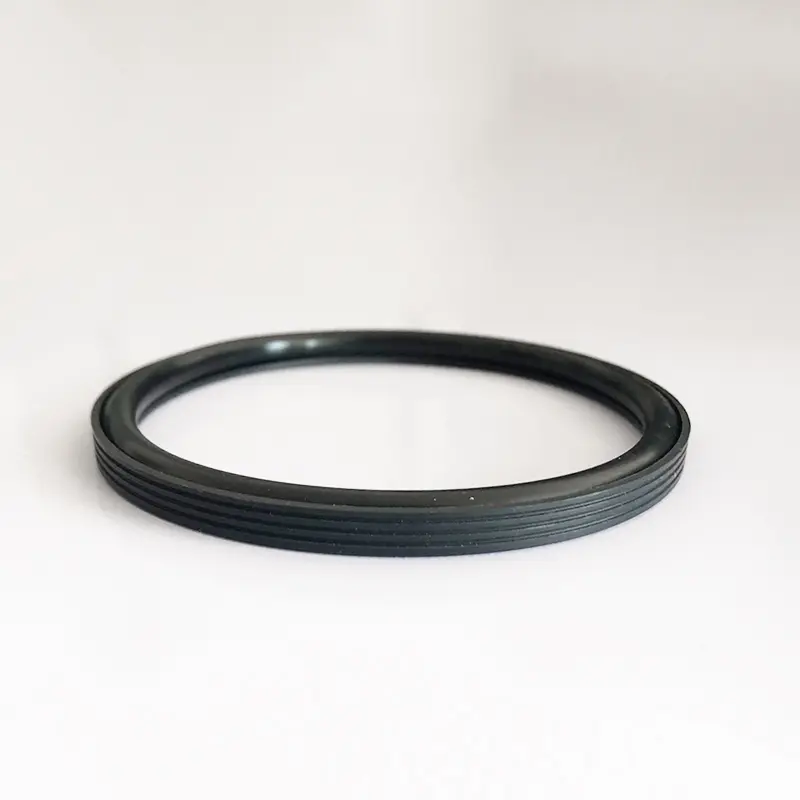

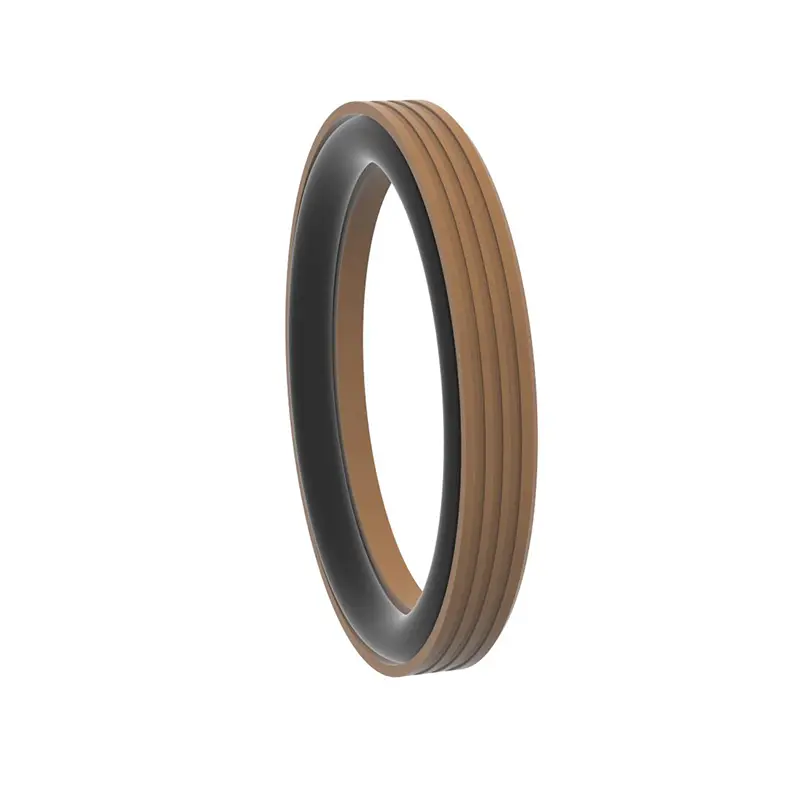

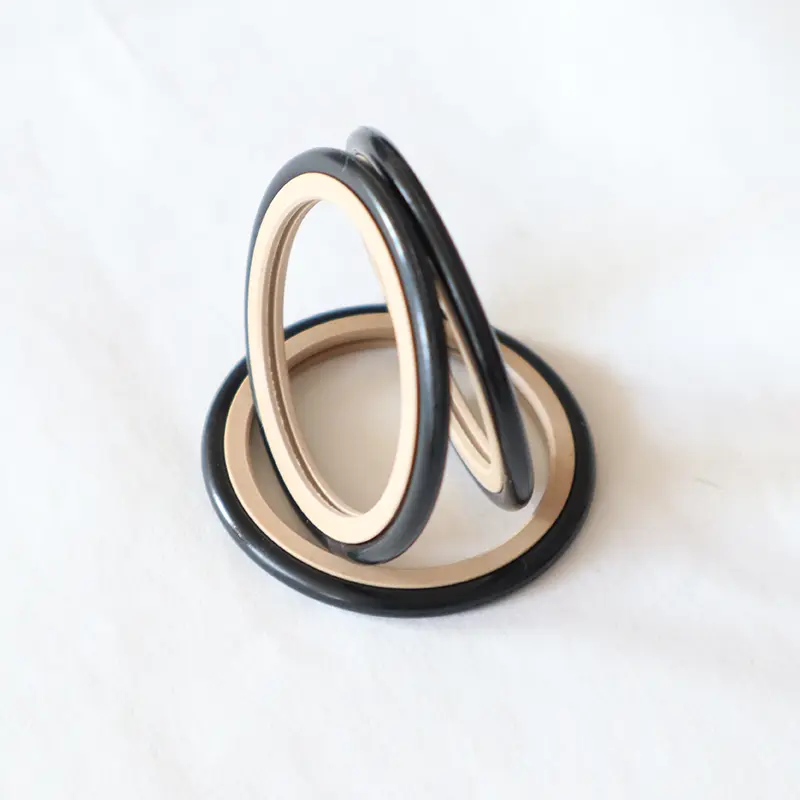

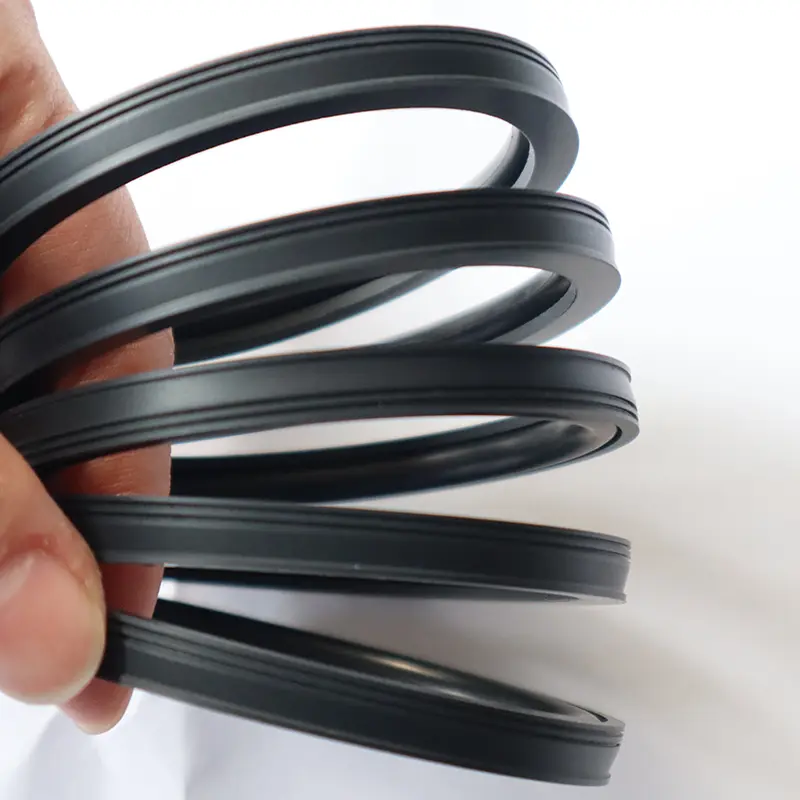

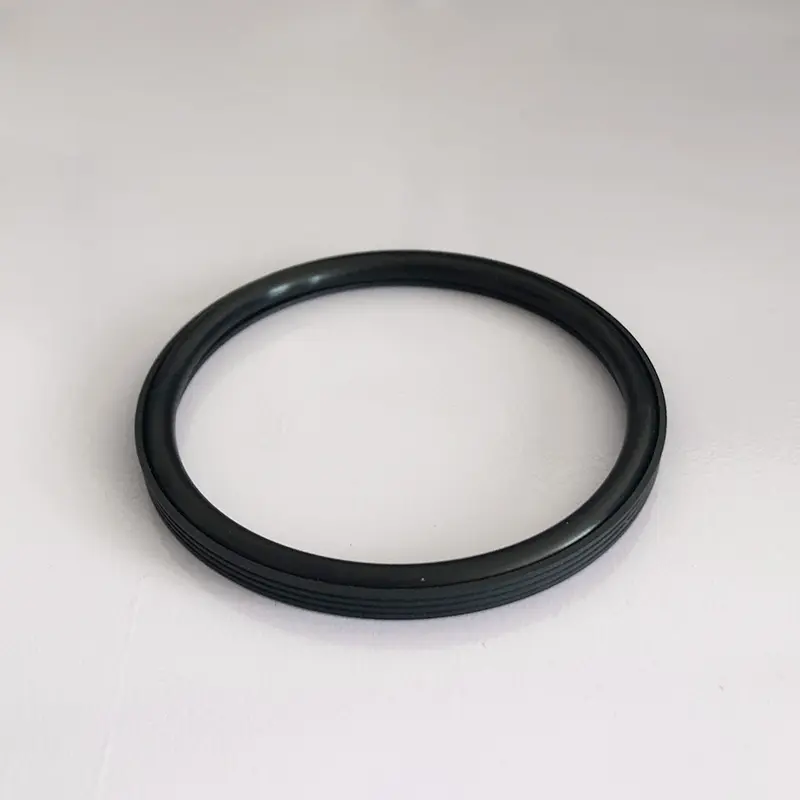

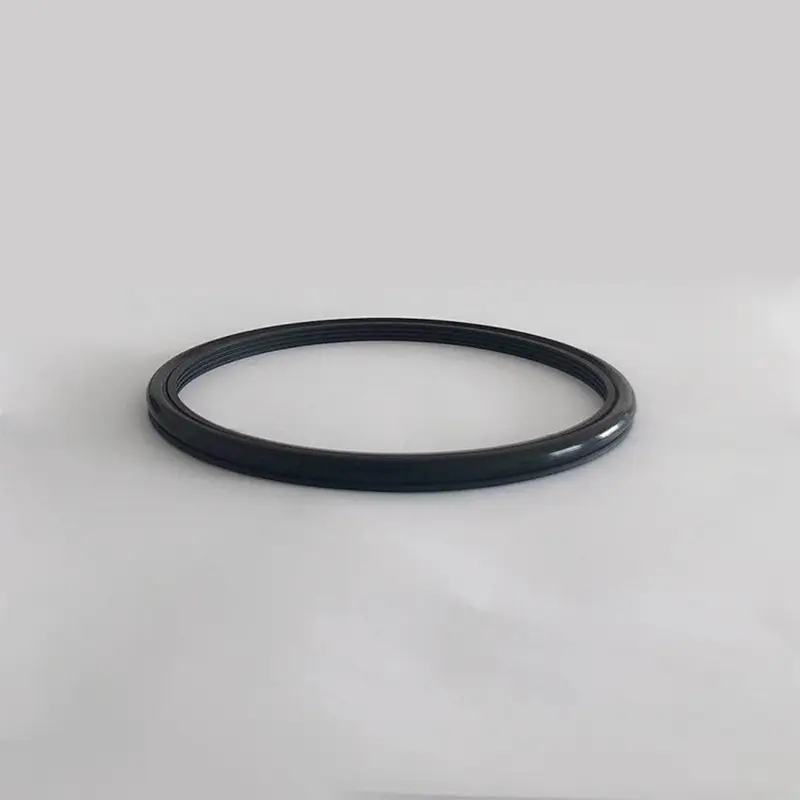

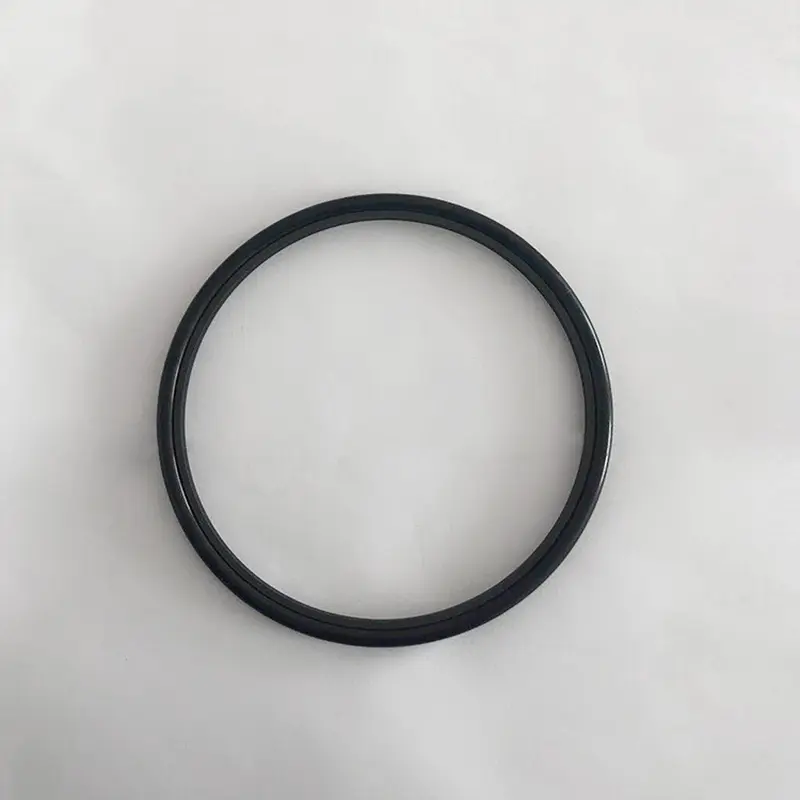

Et RC2061 et RC2062 High-pressura signacula in caementa slurry launched per Ruichen signacula sunt disposito ut cope cum complexu et dura caementa slurry obsignes conditionibus.

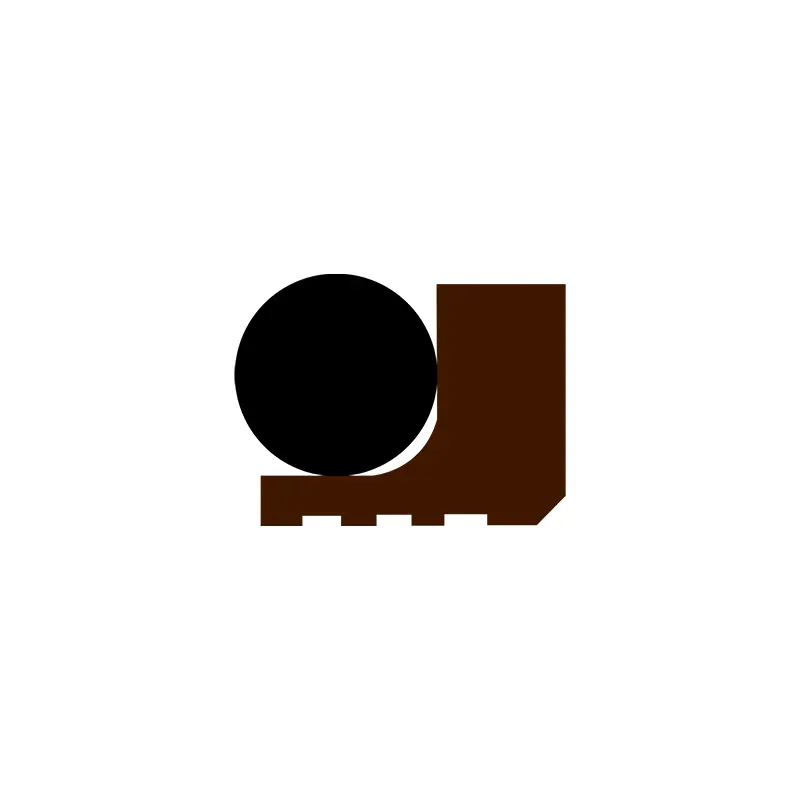

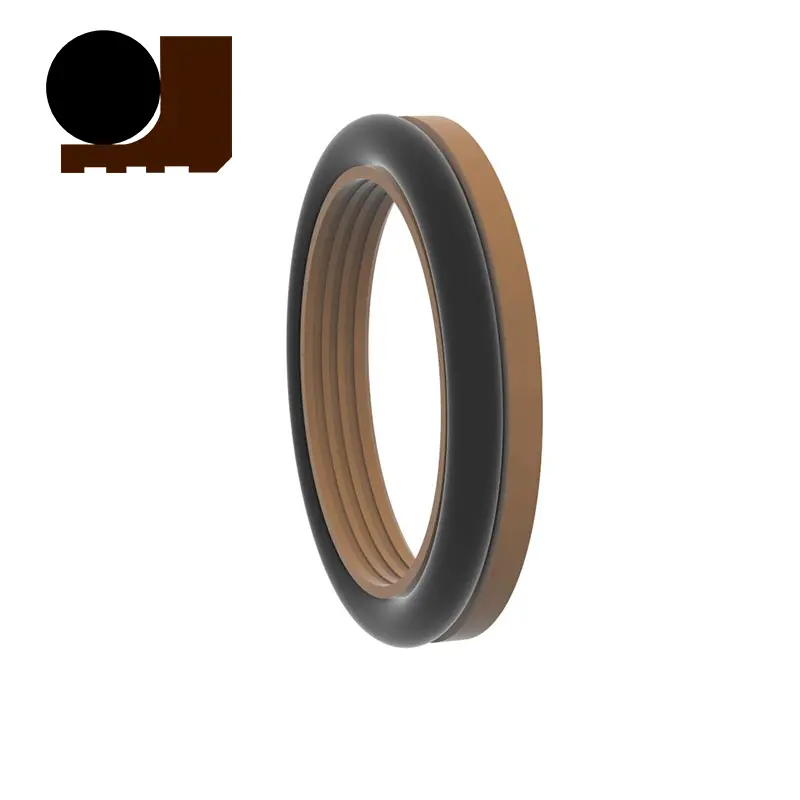

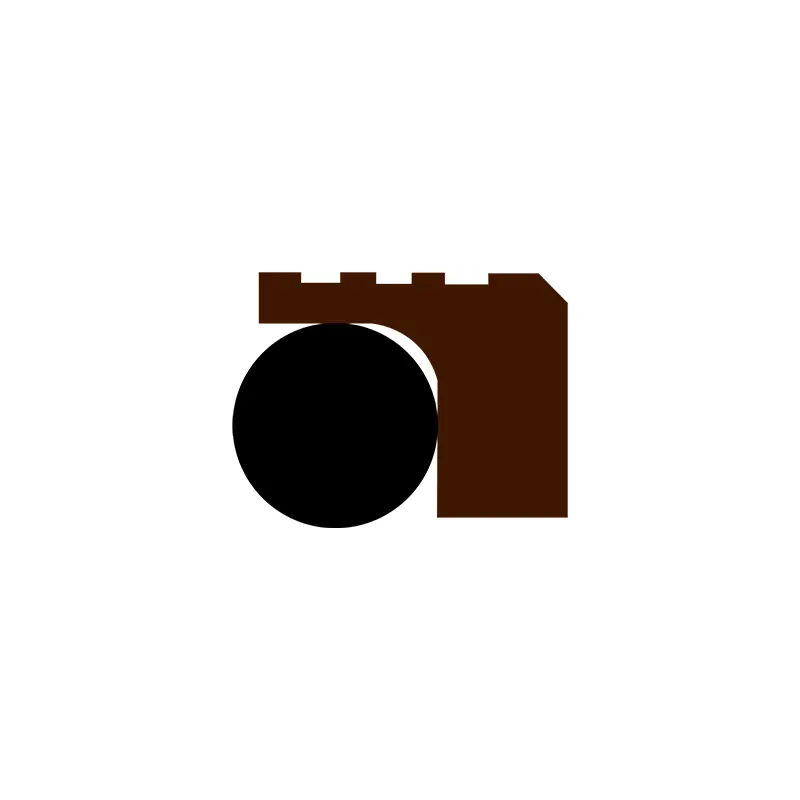

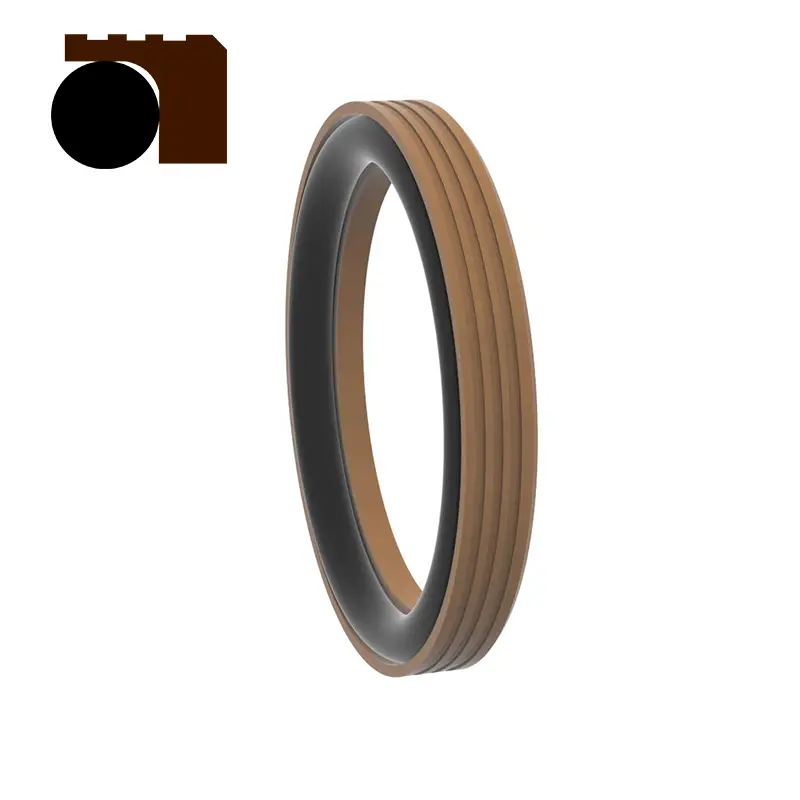

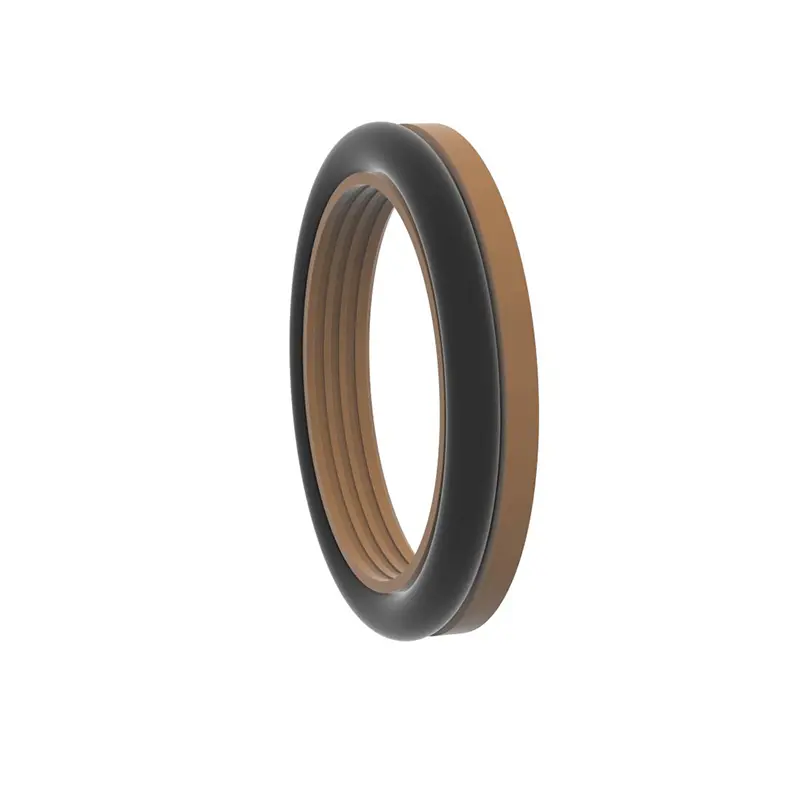

Hi duo products habent eandem structuram, utrumque ex quibus ex composito ex diligenter disposito summus munus Engineering plastic dentatus sigillum annulos et o-annulos ad consequi unam viam signantes et o-anulos et gyratorius motum. Et habent amplis applications et potest ludere an maximus munus in apparatu ut plunger soliferis, luto soleatus, cochlea terebras, EXERCITATIO Rigs, oleum exploratio apparatu, et concretum plantis.
In terms of perficientur, noster summus pressura signacula in caementa Slurry potest plures commoda. Longum vitae ratio ad redigendum opus crebris replacement ex signis partes et reducere apparatu sustentacionem costs; Humilis frictio perficientur ensures lenis operationem apparatu et reducit industria damnum; Boni signantes efficaciter prohibet caementa slurry lacus et ensures firmum operationem apparatu; Parvus structural spatium est conveniens institutionem et layout in limitata spatia variis apparatu; Securus installation, uti et sustentacionem ulterius amplio efficientiam in usu apparatu.
Nam malignantis media ut caementa slurry, quod productum potest augendae ad signantes effectus per specialem signantes labium et crassitudine Optimization consilio. Cum usus ad slurry instrumentis, ut adhuc amplio ad signationem perficientur et component vitae, nos suadeo grease lubricatae inter duo (vel magis) signacula. Haec duo summus pressura signacula in caementa slurry providere certa et efficient solutio ad altus-pressura caementa slurry sigillum problema.
Product Features et Applications:
Ordinatione exemplum:
Ordine Model RC2061-80X91.7x7.6-Ptfe4-R01 Model-Shaft Diameter X sulcus Diameter X sulcus width-material codice
Ordinis Model RC2062-80X68.3X7.6-Ptfe4-R01
Model-Cylindri Diameter X sulcus Diameter x sulcus width-material codice

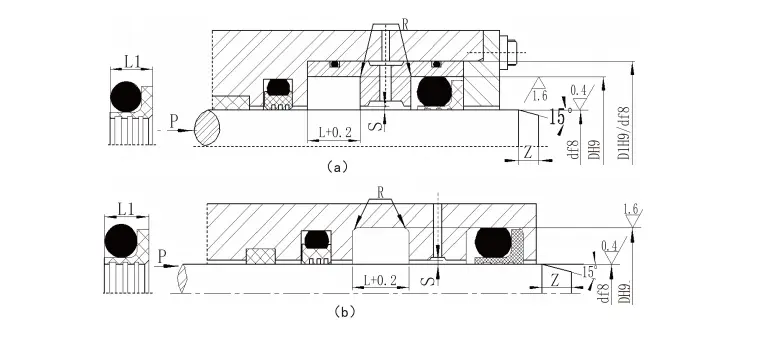

Specifications:

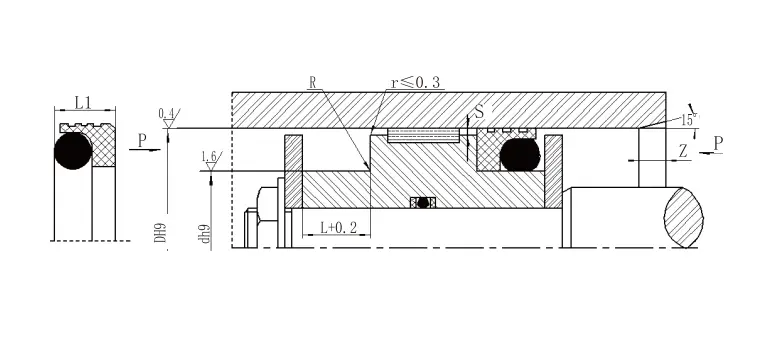

| Palus diameter range
Vexillum genus d F8 Rc2061 |
Palus diameter range
Gravibus onus d F8 RC2061-Z |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Sigillum widthl1 | Per angulos Rmax |
Radiales Clearance SMAX | Chamfer Zmin |
O-Orbis filum diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| V ~ 15,9 | - | D + 6.3 | 4.0 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| XVI ~ 38.9 | V ~ 15,9 | D + 8,2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| XXXIX ~ 107.9 | XVI ~ 38.9 | D + 11,7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| CVIII ~ 670,9 | XXXIX ~ 107.9 | D + 15,5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| DCLXXI ~ MDC | CVIII ~ 670,9 | D + 19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
| Nota: I. Nam Shaft Diameter ≤3mm, aperta sulcus commendatur. | ||||||||||
| II. Nam gyratorius sigillum, superficiem duritiam gyrariis hastile commendatur ut HRC ≥58. III. Quia pressura maior quam 30mpae, H8 / F8 commendatur pro extrusionem gap. | ||||||||||
| Range range
Vexillum D H9 Rc2062 |
Range range
Gravibus onus D H9 RC2062-Z |
Sulcus diameter D H9 |
Sulcus width L+.2 |
Sigillum widthl1 | Rotunda Rmax |
Radiales Clearance SMAX | Chamfer Zmin |
O-Orbis filum diameter | ||
| <10MPA | <20MPA | <40MPA | ||||||||
| VIII ~ 12,9 | - | D-4.5 | 3.1 | 2.8 | 0.3 | 0.3 | 0.2 | 0.15 | 3 | 1.8 |
| XIII ~ 24.9 | X ~ 12.9 | D 6,3 | 4 | 3.65 | 0.4 | 0.4 | 0.25 | 0.15 | 4 | 2.65 |
| XXV ~ 51.9 | XIII ~ 24.9 | D-8,2 | 5.2 | 4.55 | 0.4 | 0.4 | 0.25 | 0.2 | 5 | 3.55 |
| LII ~ 127.9 | XXV ~ 51.9 | D-11.7 | 7.6 | 6.80 | 0.5 | 0.5 | 0.3 | 0.2 | 7 | 5.30 |
| CXXVIII ~ 500.9 | LII ~ 127.9 | D-15,5 | 9.6 | 8.50 | 0.6 | 0.6 | 0.35 | 0.25 | 8 | 7.00 |
| DI ~ MD | CXXVIII ~ 500.9 | D-19.4 | 12.1 | 11.1 | 0.7 | 0.7 | 0.5 | 0.3 | 10 | 8.60 |
| Nota: I. Nam cylindri Diametris ≤ XXX mm, aperta striatus suadetur. | ||||||||||
| II. Nam pressuris maior quam XXX MPa, H8 / F8 est suadetur pro extrusionem alvi. | ||||||||||
| High-pressura signacula in caementa slurry operantes conditionibus | ||||||
| Set | Exemplar | Pressura MPA |
Temperature (℃) | Celeritate (M / s) |
MEDIUS | |
| Motus reciprocating | Gyratorius | |||||
 |
Rc2061 | ≤100 | -35 ~ + C (matching o-circulum NBR) | ≤6 | ≤2 | Aquam, luto, rudis oleum, hydraulicis oleum, EMULSIO, etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||||
 |
Rc2062 | ≤100 | -35 ~ + C (matching o-circulum NBR) | ≤6 | ≤2 | Aquam, luto, rudis oleum, hydraulicis oleum, EMULSIO, etc. |
| -20 ~ CC (matching o-anulum fkm) | ||||||
